6 616T, 616R - Using the Dual-Link Detachable Optical DVI System
5. Disconnect the 616T from the display.
The new EDID information is stored.

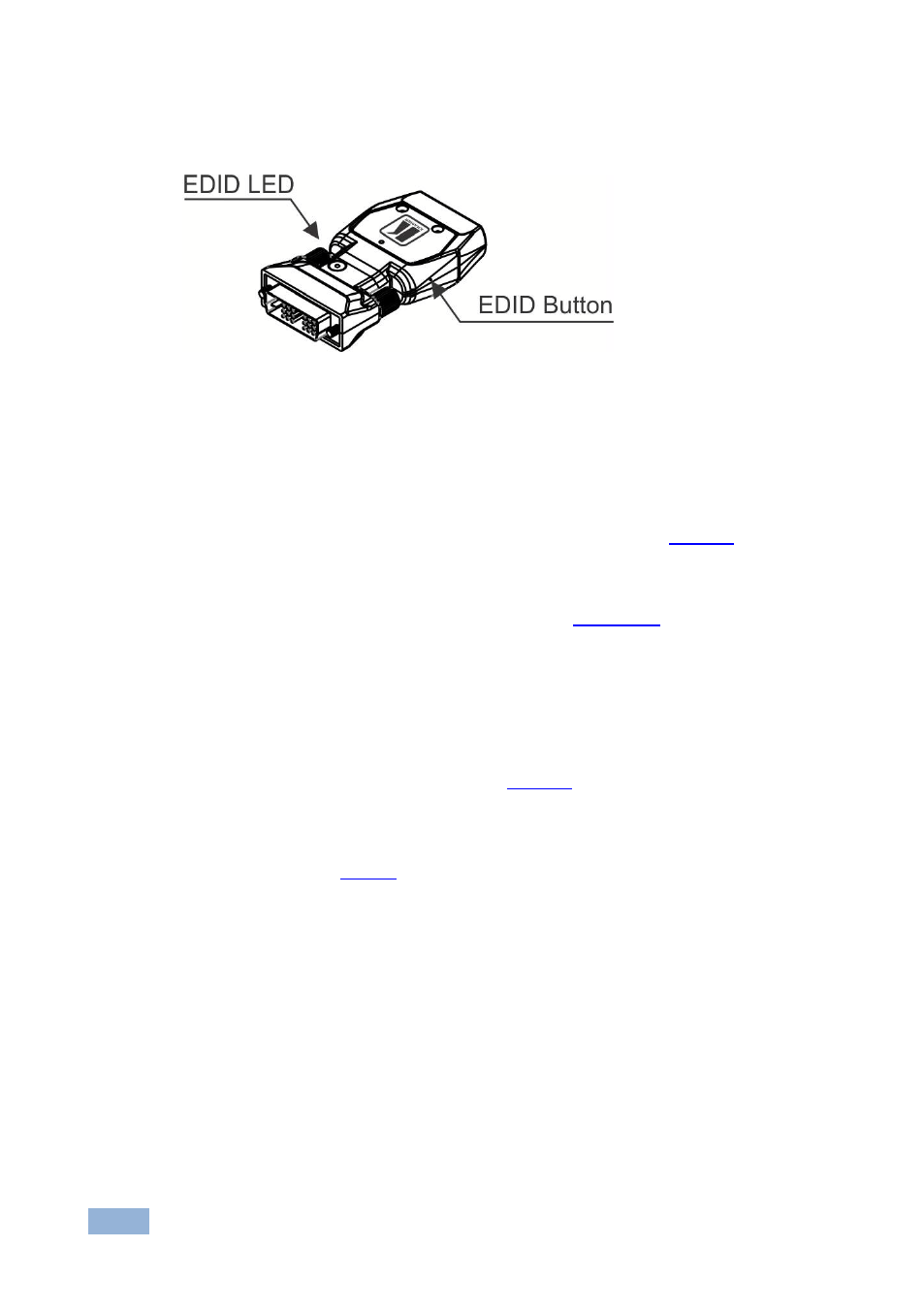

Figure 1: The Auto EDID Button on the 616T
4.2 Connecting the Dual-Link Detachable Optical DVI
System
To connect the 616T Dual-Link Detachable Optical DVI Transmitter with the 616R
Dual-Link Detachable Optical DVI Receiver, as the example in Figure 3 illustrates,
do the following:
1. Capture the EDID of the display device (see Section 4.1 ).
2. Connect the 616R to the 5V DC power adapter and connect the adapter to
the mains electricity. The LED lights.
3. Connect the duplex LC fiber cable to the 616T and 616R modules, one
connector at a time, as illustrated in Figure 2 .
4. Plug the 616T DVI connector directly to the DVI connector of the computer.
Do not use any intermediate cable or adapter between them, and connect cables 1 and
2 as indicated in Figure 2 .
5. Connect the 616R DVI connector directly to the DVI connector of the display
device.
