Page 10: Figure 2

616T, 616R - Using the Dual-Link Detachable Optical DVI System

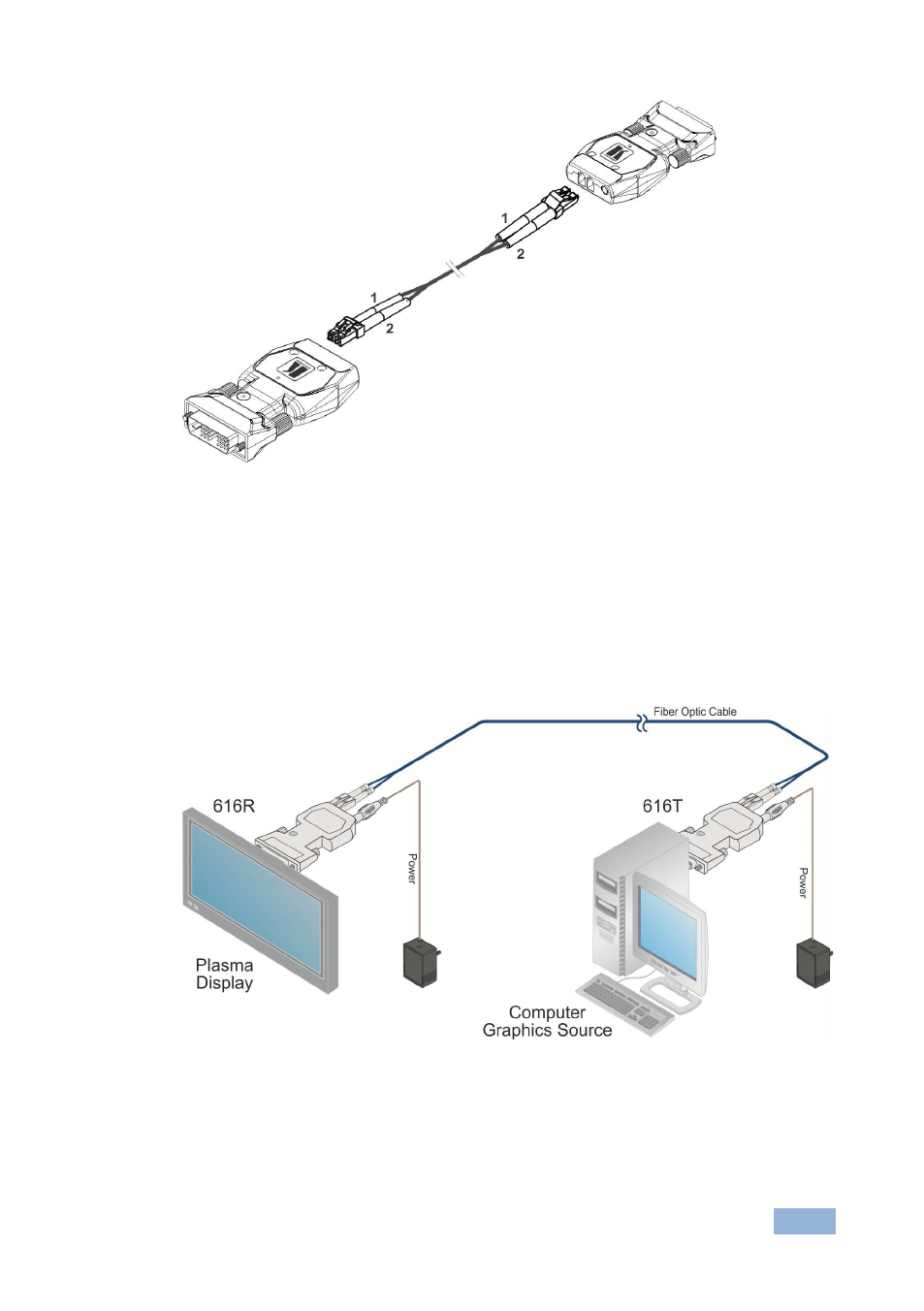

Figure 2: Connecting the Fiber Optic Cable

6. Turn on the computer power and then turn on the display device power.

7. If the transmitter does not power up, connect the 5V power adapter to the

616T transmitter, and connect the adapter to the mains electricity.

You can use the power supplied through a DVI pin from the graphic cards instead of

using the power adapter. After completing the installation, if the system does not seem

to work properly, reconnect the power adapter while the system is powered.

Figure 3: Connecting the 616T/616R Dual-Link Detachable Optical DVI Transmitter/Receiver
