6 614T, 614R - Using the Detachable Optical DVI System
4. Connect the 614T unit directly to the display device.
The status LED flashes rapidly while reading the EDID and turns off after
about 7-8 seconds.
5. Disconnect the 614T from the display.
The new EDID information is stored.

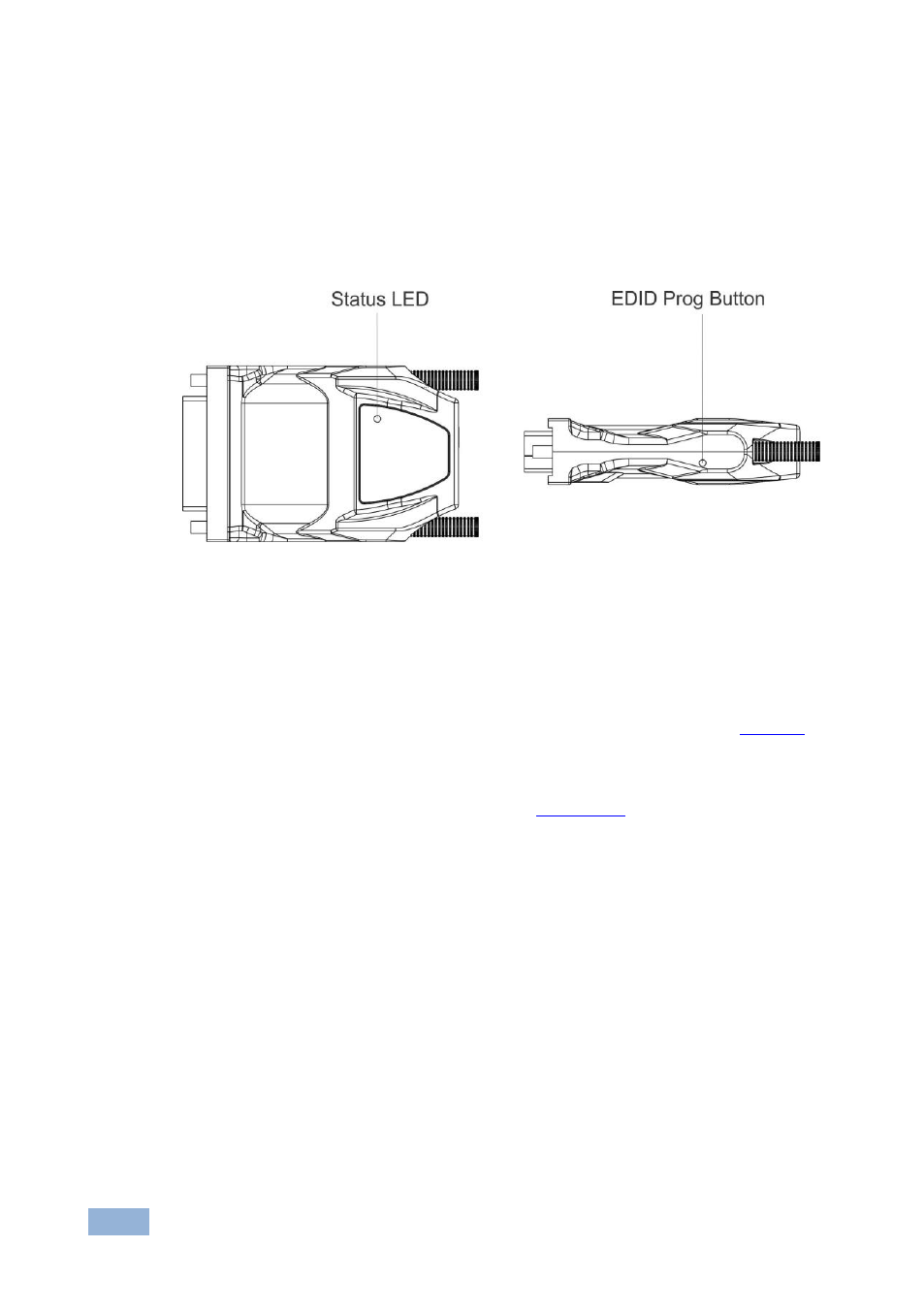

Figure 1: The Auto EDID Button on the 614T
4.2 Connecting the One-Fiber Detachable Optical DVI
System
To connect the 614T One-Fiber Detachable Optical DVI-D Transmitter with the
614R One-Fiber Detachable Optical DVI-D Receiver, as the example in Figure 2
illustrates, do the following:
1. Set the EDID of the display device (see Section
4.1
).
2. Plug the 614T DVI connector directly to the DVI connector of the computer.
Do not use any intermediate cable or adapter between them.
3. Connect the 614R to the 5V DC power adapter and connect the adapter to
the mains electricity. The indication LED lights.
4. Connect the 614R DVI connector directly to the DVI connector of the display
device.
Do not use any intermediate cable or adapter between them.
5. Connect the single multimode fiber cable with SC connectors to the 614T
and 614R modules.
