Using the SDI-AES De-Embedder / SDI-AES Embedder
6
5.2 Connecting the 6809 SDI-AES Embedder
To connect the 6809 SDI-AES Embedder, as the example in Figure 4
illustrates, do the following 1 :
1. Connect an SDI source (for example, a digital video player) to the SDI IN
BNC connector.
2. Connect the SDI OUT BNC connector to an SDI and AES/EBU acceptor
or to the SDI IN BNC connector on a 6808 SDI-AES De-Embedder unit
(see Figure 6).
3. Connect an AES digital audio source (for example, DAT-Player A) to the
AES INPUT A BNC connector (for channels 1-2).
4. Connect an AES digital audio source (for example, DAT-Player B) to the
AES INPUT B BNC connector (for channels 3-4).
5. Set the GROUP SELECT dipswitches to choose the audio group (see
section 5.2.1).
6. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity.

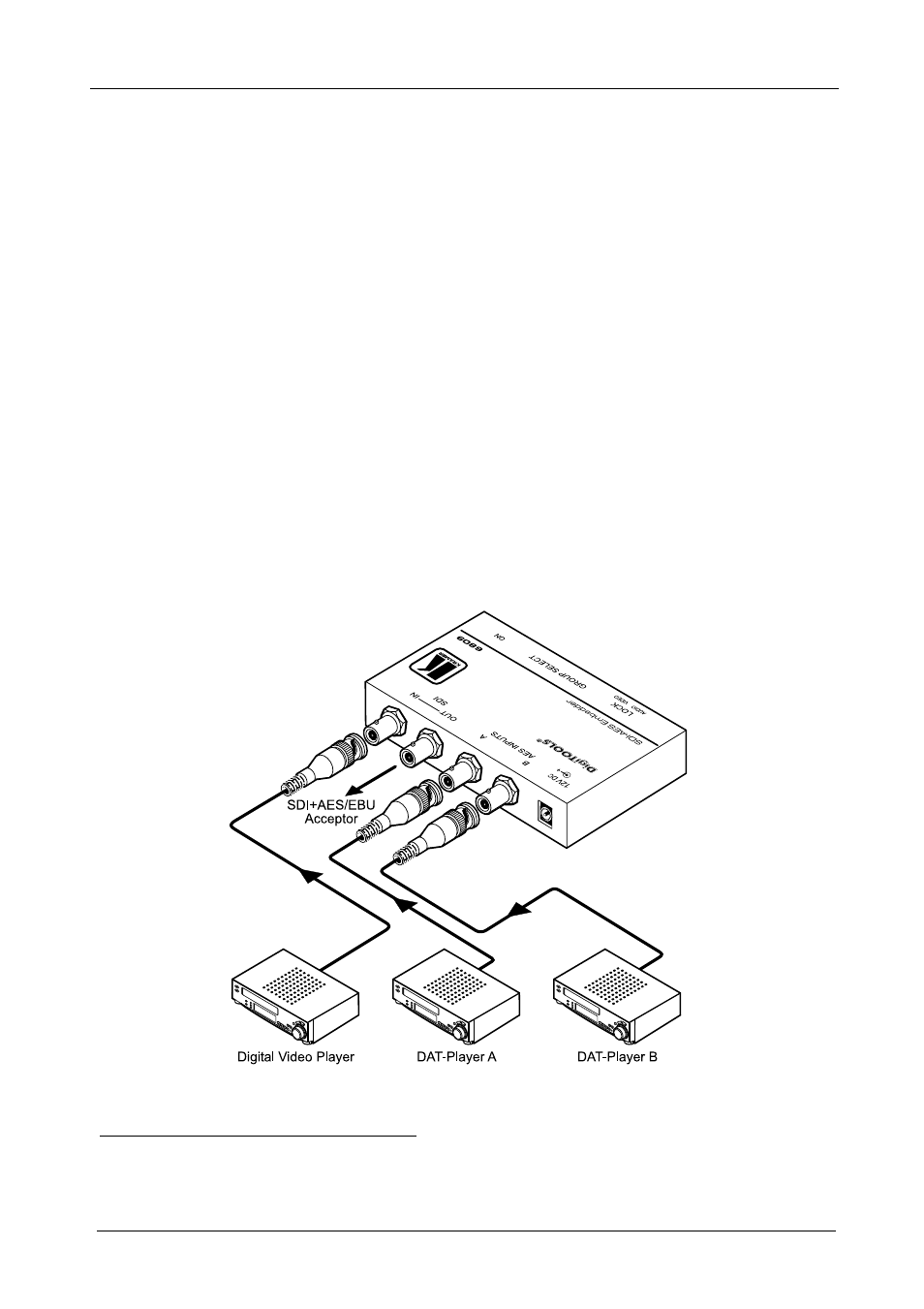

Figure 4: Connecting a 6809 SDI-AES Embedder
1 Switch OFF the power on each device before connecting it to your 6809. After connecting your 6809, switch on its power
and then switch on the power on each device. Switching on the 6809, recalls the last status prior to powering down
