Your SDI-AES De-Embedder / SDI-AES Embedder
3
4 Your SDI-AES De-Embedder / SDI-AES Embedder
Sections 4.1 and 4.2 define the 6808 SDI-AES De-Embedder, and the 6809
SDI-AES Embedder, respectively.
4.1 Your 6808 SDI-AES De-Embedder

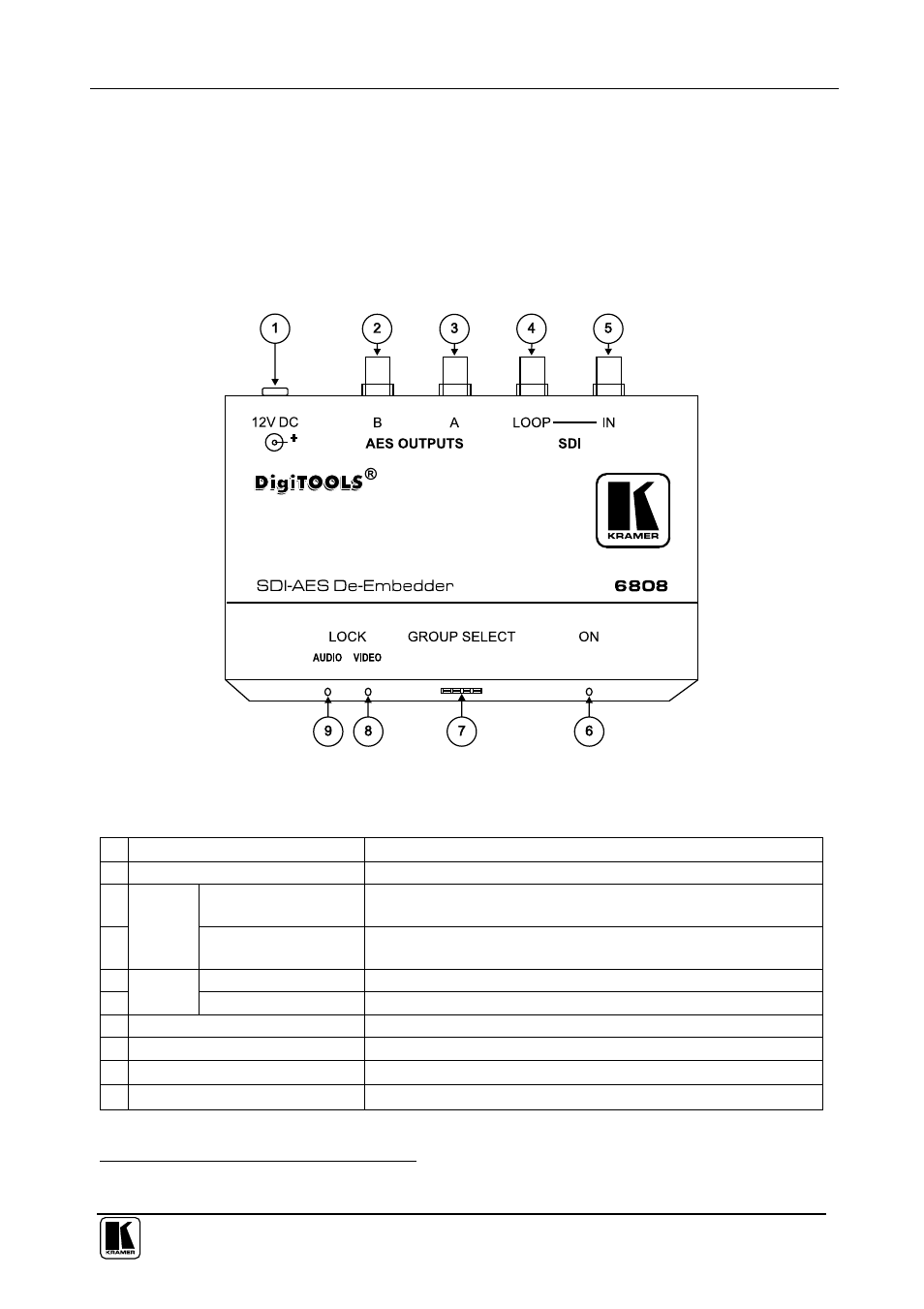

Figure 1 and Table 1 define the 6808 SDI-AES De-Embedder:
Figure 1: 6808 SDI-AES De-Embedder
Table 1: 6808 SDI-AES De-Embedder
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 B BNC Connector Connects to the digital audio acceptor (for channels 3 and 4) 1
3 A
E
S
O
U
TP
U
TS
A BNC Connector Connects to the digital audio acceptor (for channels 1 and 2) 1
4 LOOP BNC Connector For active looping of the SDI input
5
S
D
I
IN BNC Connector Connects to the SDI source
6 ON LED Illuminates when receiving power
7 GROUP SELECT Dipswitches Select the audio group
8 VIDEO Green LED Automatically lights when receiving an SDI signal
9 AUDIO Green LED Automatically lights when de-embedding audio from the video signal
1 In accordance with the standard, the audio digital stream contains 2 audio channels
