Kramer Electronics Site-CTRL™ - Manual (Page 15)

Site-CTRL – The Room List Tab 13
4.3 Scheduled Tasks
You can create scheduled tasks via the three buttons located on the lower left side of the Room List tab:

Update Time –schedule a time update to a device list, see Section 4.3.1

Update Firmware – schedule several firmware updates to a group of selected devices, see Section 4.3.2

Update Configuration – schedule a configuration update to a group of devices, see Section 4.3.3
Each of the scheduled updates opens a Scheduling window for setting the rate at which the task is performed:

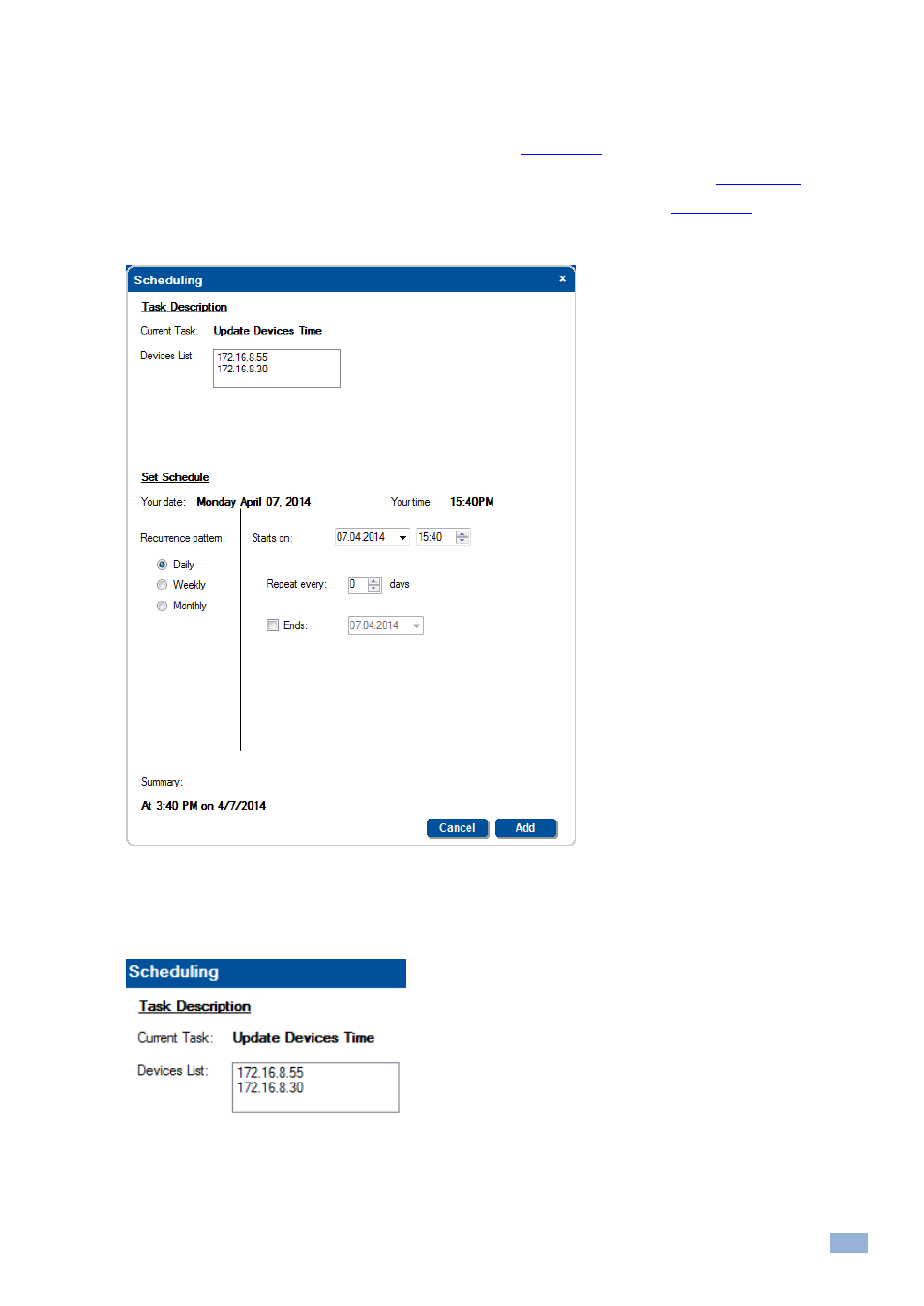

Figure 23: Scheduling Window
The scheduling window has three main areas, the Task Description, Set Schedule and Summary area.
Task Description shows the current task and the relevant rooms (selected in the Room List tab):
Figure 24: Scheduling – Task Description
The Set Schedule area shows the current date and time.
