10 Site-CTRL - The Room List Tab
Each room line displays the status of the room and details the actions that can be taken:

Msg – Switches to the Event Log tab and filters the log list according to the device’s Web pressed button
(meaning – shows events of a single device)

Web – Open the device’s Web page in the PC’s default browser

On/Off – executes All On or All Off

Password – when the device’s security is on, the Web page’s login screen requires a password. Entering the
password using the ‘password’ button will cause entering the web Page, while skipping the login step of the Web
page (for quicker access to the Web page when security = on), currently unavailable

Refresh – refreshes the device communication status (between the PC and the device )

X – delete this line from the list
4.1 Adding Several Rooms At Once
If you want to add several rooms at once, check the box next to IP Range.
Instead of Room Description, the Add Room window will show the IP number range and the Room Name Start Index
text boxes:

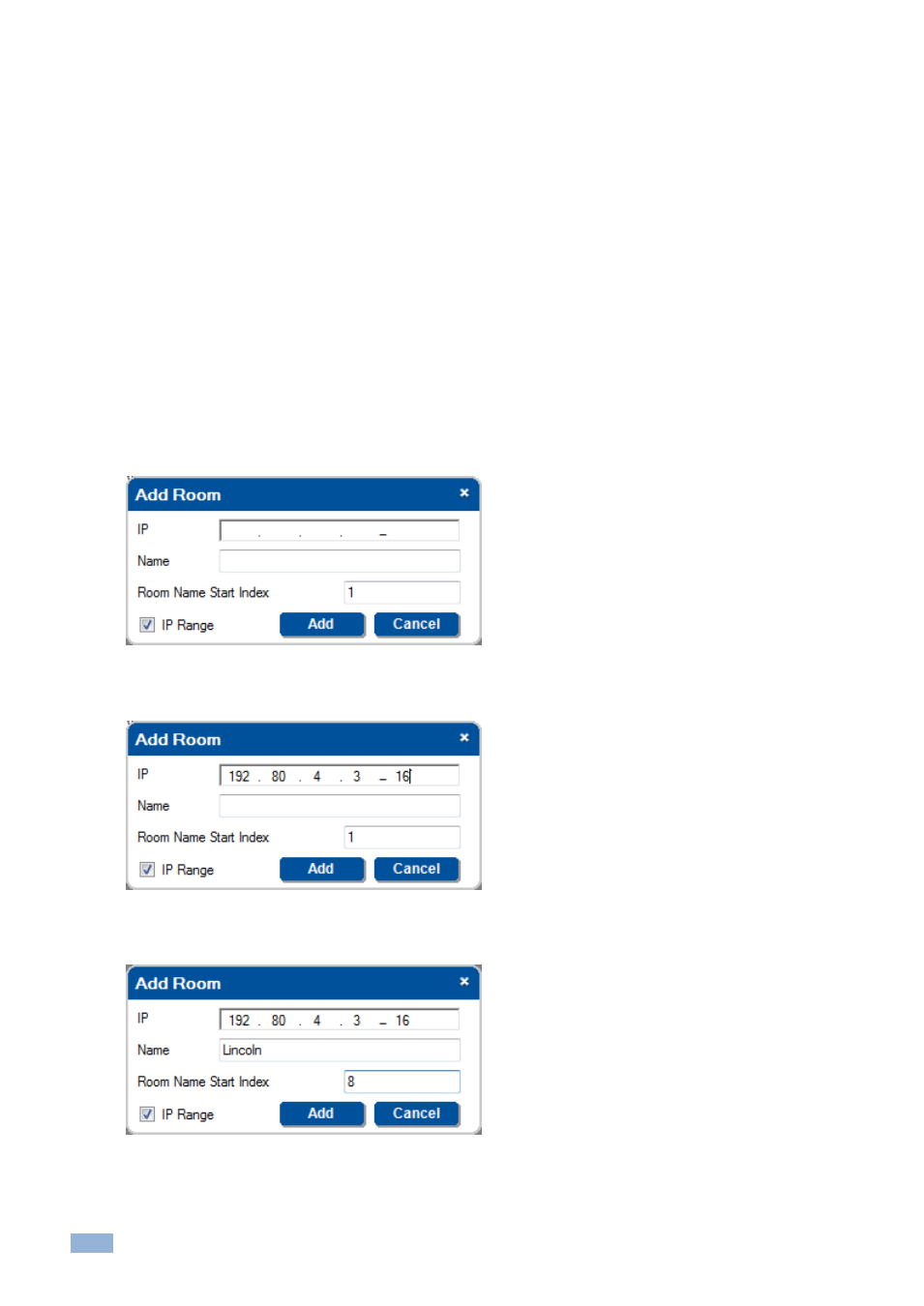

Figure 17: The Room List Tab – Add Several Rooms
1. Type in the IP number range (from 3 to 16 in this example):
Figure 18: The Room List Tab – Add the IP Range
2. Add the rooms name and the room start index:
Figure 19: The Room List Tab – Add the Room Name Start Index
3. Click the Add button.
The Room List tab will show the new list of rooms added and will start to connect to them.
