Your RC-7LC / RC-7LCE
5
4.2 Defining the RC-7LCE Front Panel

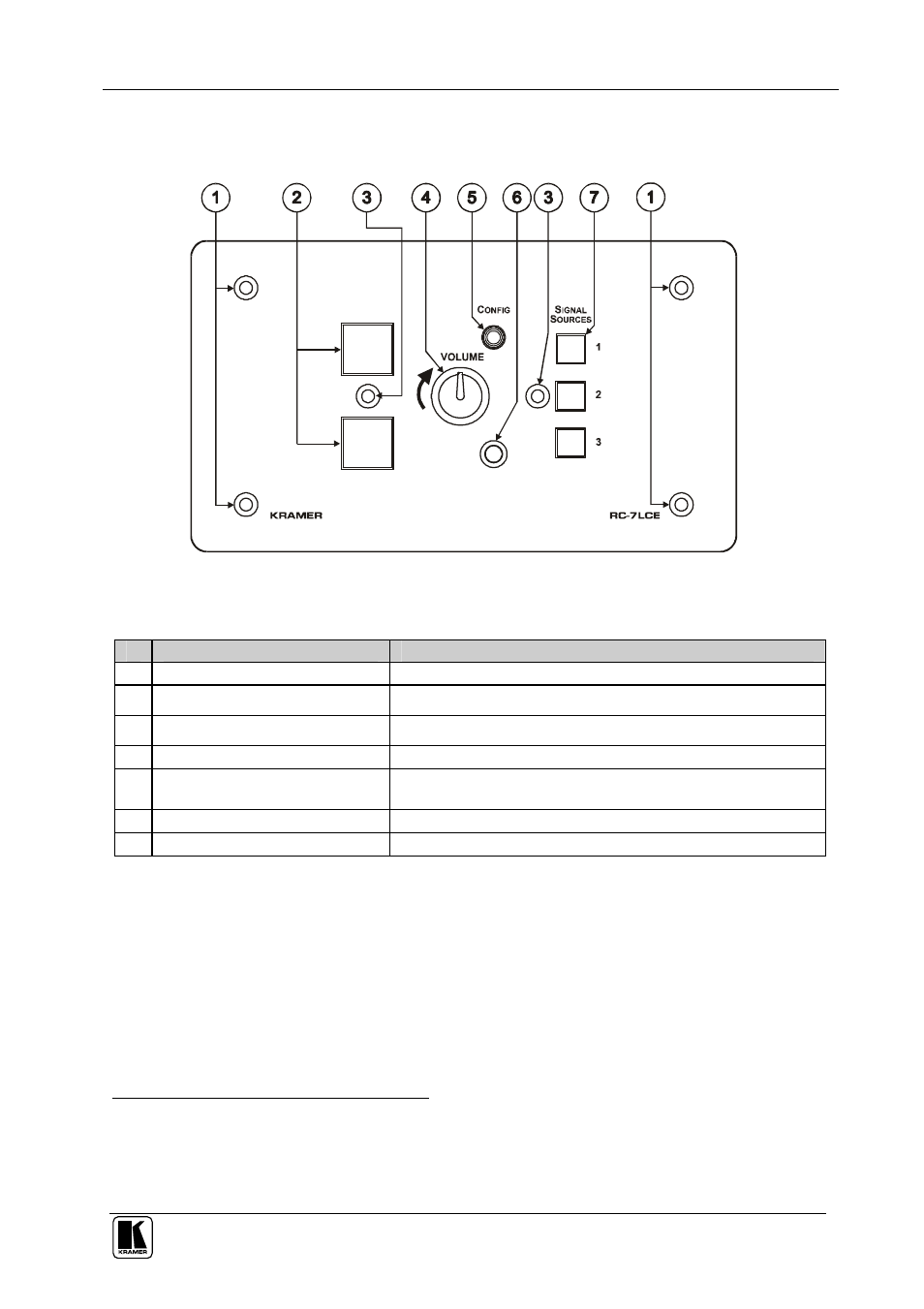

Figure 2 and Table 2 define the RC-7LCE front panel:
Figure 2: RC-7LCE Front Panel
Table 2: RC-7LCE Front Panel
# Feature Function
1 Mounting holes (4) For fastening the controller in place
2 Configurable Control Buttons (2) Macro Buttons for controlling the room and the A/V equipment
3 Faceplate Attachment Holes (2) For attaching the faceplate to the controller 1
4 VOLUME Control Knob Rotate 2 to remotely adjust the volume on the power amplifier
5 CONFIG Port 3 Used for Windows®-based configuration software (driver
downloads, firmware updates and so on)
6 IR IN Receiver Accepts IR remote commands (for the IR-learner feature) 4
7 SIGNAL SOURCES Buttons Select the input source (from 1 to 3)
1 These screws should not be removed during or after mounting
2 In a clockwise direction to increase the volume; in a counter-clockwise direction to decrease the volume
3 Via the front panel, without having to remove the RC-7LCE from its mounting
4 Letting you configure the RC-7LCE directly from the remote transmitter without the need for software
