16 RC-76R/RC-78R - Front Panel Button Caps and Labels
6.1 Installing the Front Panel Button Caps and Labels
To install the button caps and labels:
1. Remove the required labels from the supplied button label sheet.
2. Unscrew the Decora front plate from the device. Put the plate and screws
aside.
3. To access the buttons, remove the two button cover plate mounting screws
(see Figure 6 ) and remove the button cover plate. Put the plate and screws
aside.

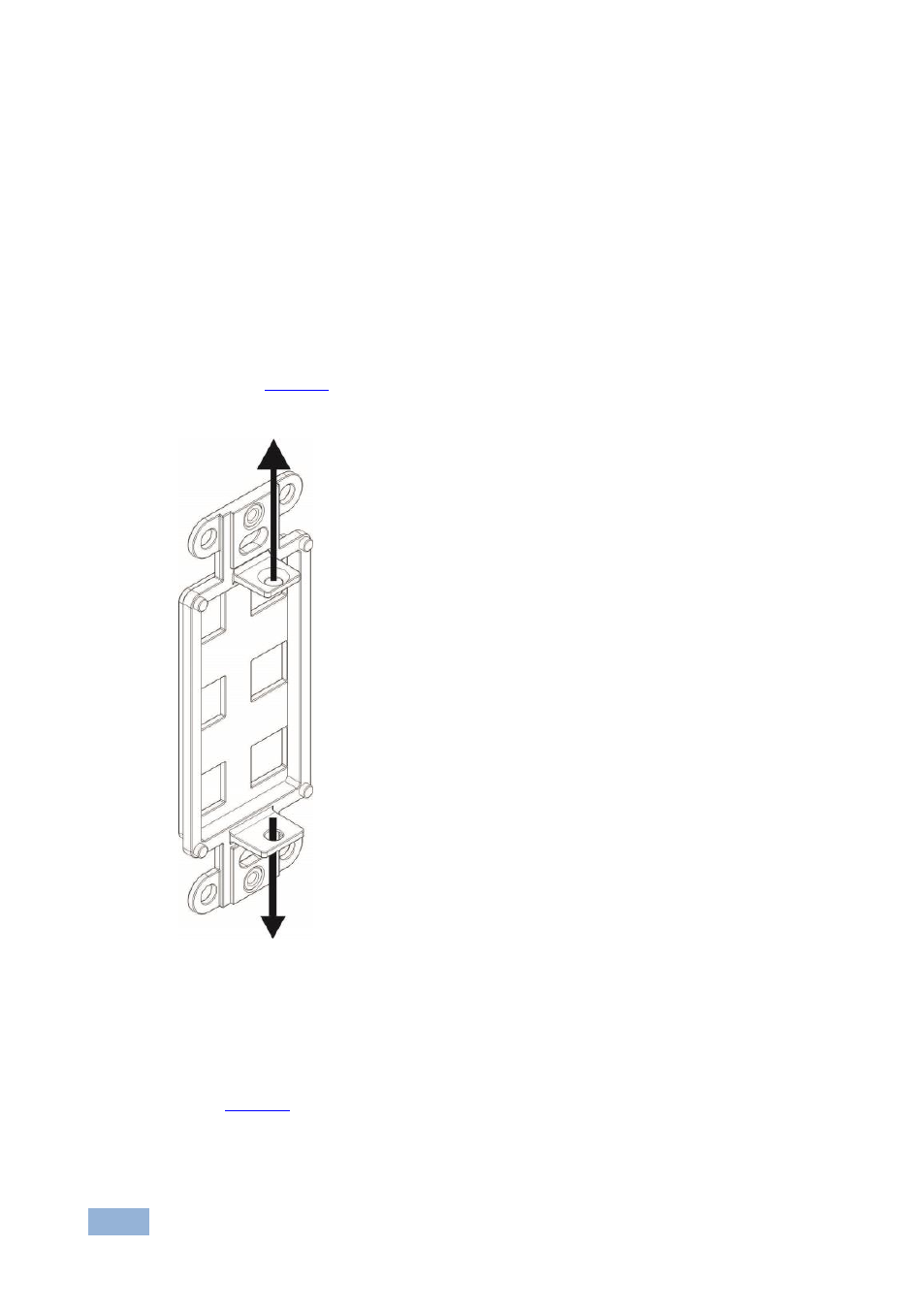

Figure 6: Removing the Button Cover Plate Mounting Screws
4. Lift each cap away from its button.
5. Holding the button cap with the “wings” on the top and bottom as shown in
Figure 7 , insert the label inside the cap.
