10 RC-76R/RC-78R - Connecting the RC-76R/RC-78R
4.4 Connecting the K-NET Port
The K-NET port is wired as shown in Figure 3 .

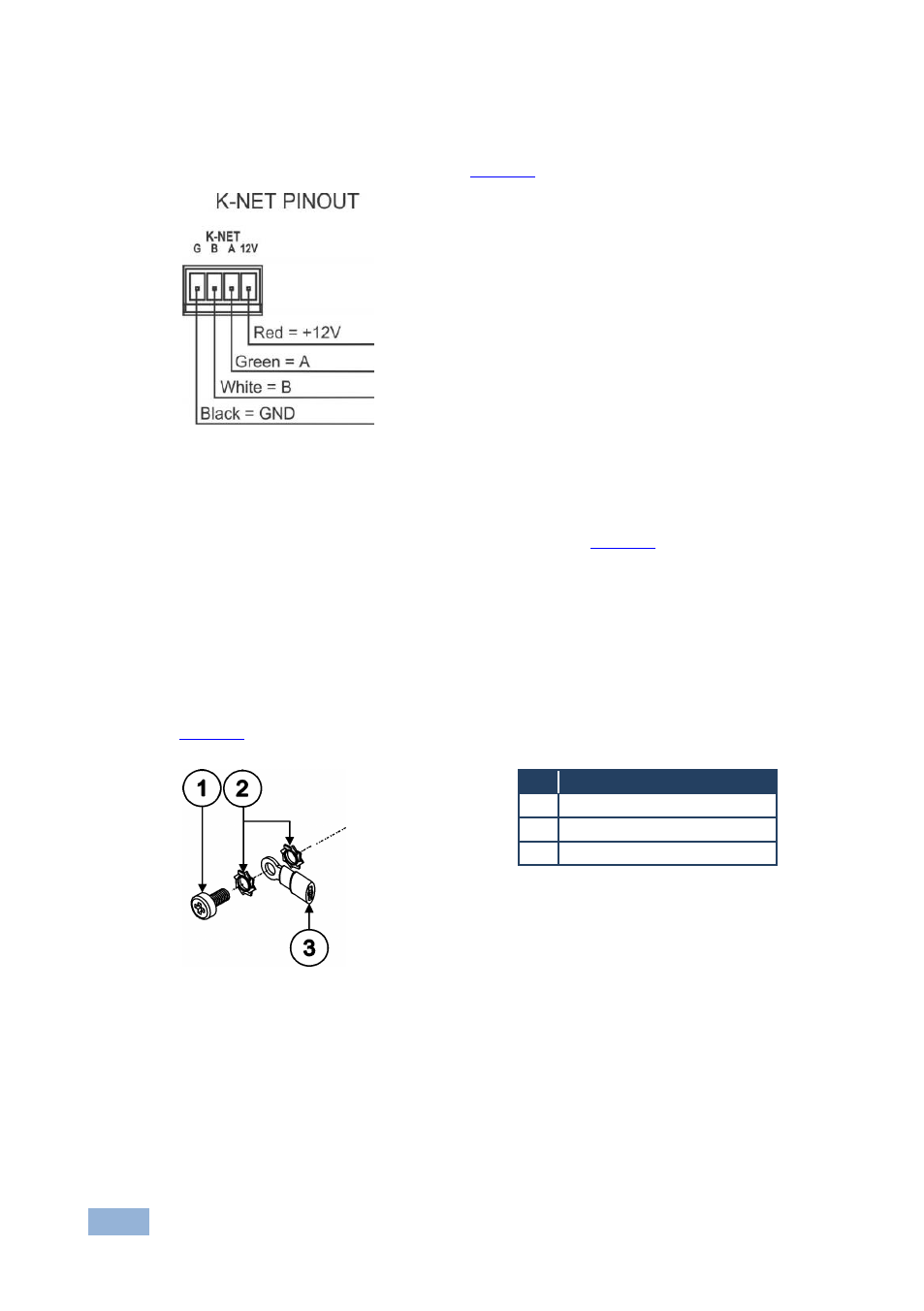

Figure 3: K-NET PINOUT Connection
If your device is the first or last device on the line, slide the K-Net termination
switch up otherwise make sure it is set to down (see Figure 1 ).
4.5 Grounding the RC-76R/RC-78R
The grounding screw is used to earth the chassis of the unit to the building ground
preventing static electricity from impacting the performance of the unit.
Figure 4 defines the grounding screw components.
Figure 4: Grounding Connection Components
# Component Description
1 M3X6 screw
2 1/8" Toothed Lock Washer
3 M3 Ring Tongue Terminal
