14 RC-76M/ RC-712M - Installing the RC-76M/RC-712M
5. Insert the labels, as required, inside the button caps while holding the button
cap “wings” to the sides, as shown in Figure 9 .
Figure 9: Button Cap Orientation with Label
6. Retaining this orientation, place each button cap, with the label to its correct
button (see Figure 10 ).

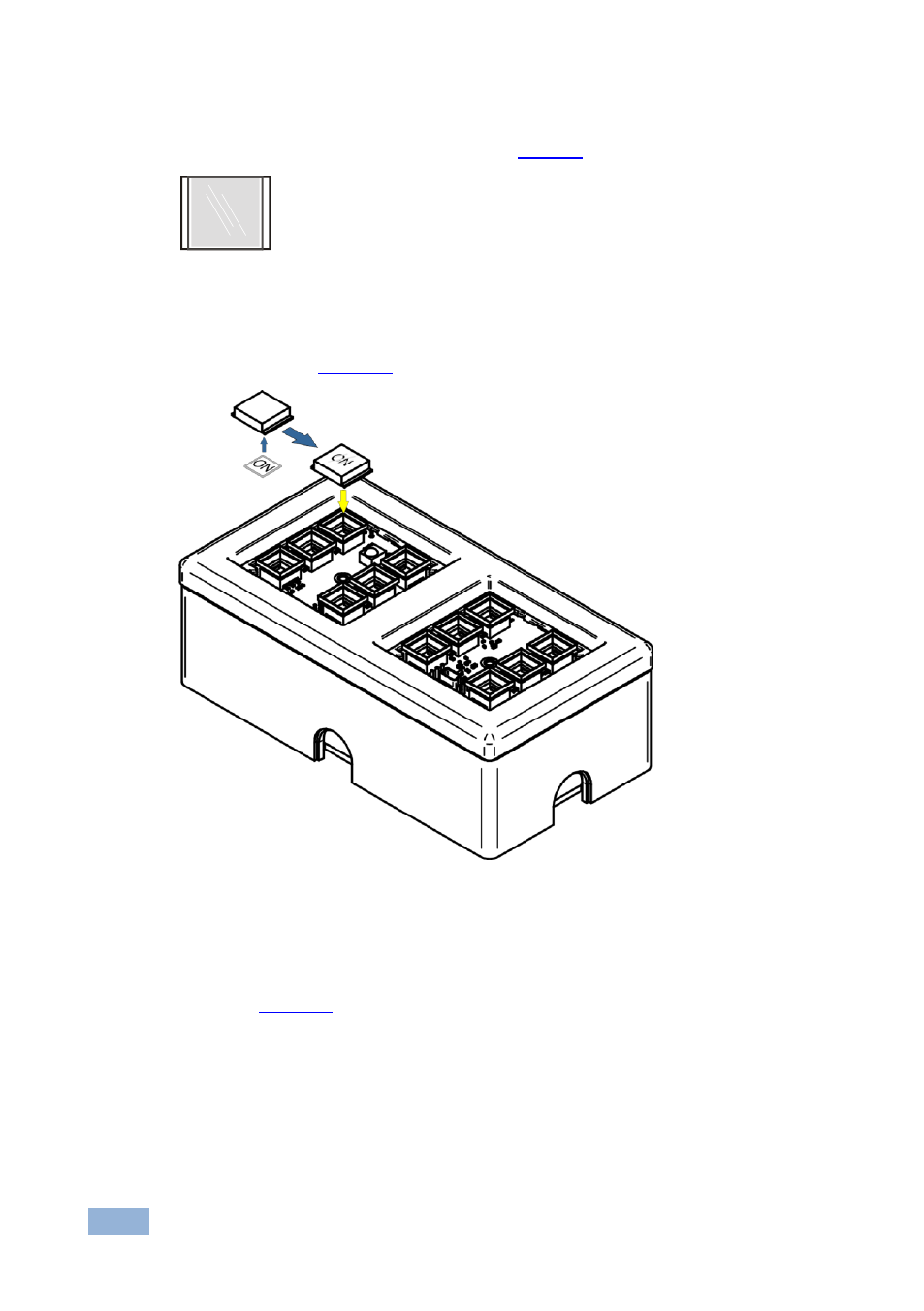

Figure 10: Placing the Button Caps and Mounting the Device
7. Place the faceplates over the frame while fitting the buttons in (for the
RC-76M you need to attach one button faceplate and one blank faceplate),
see Figure 11 .
O N
