Your Universal Room Controller
4

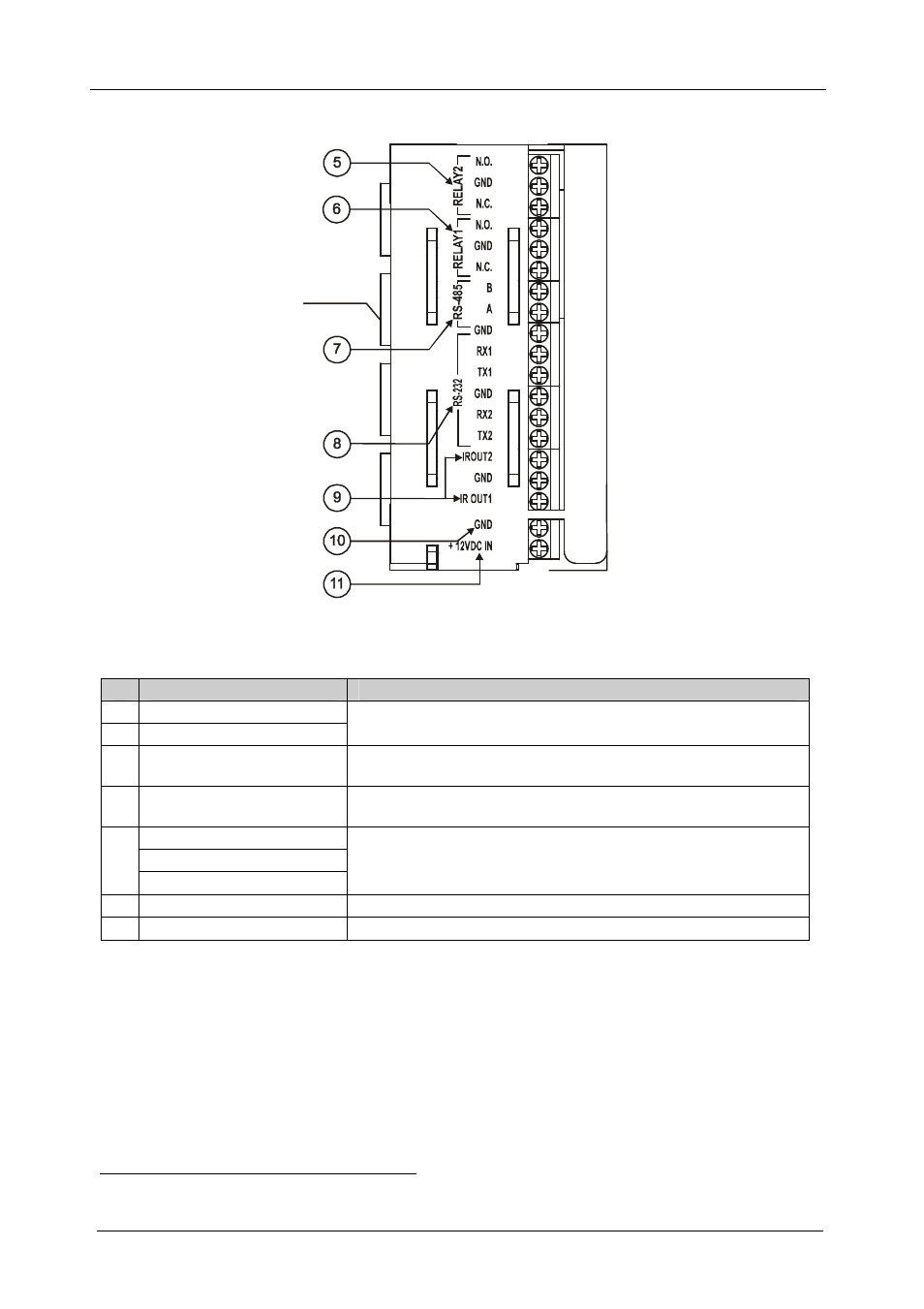

Figure 2 and Table 2 define the RC-8IR and the RC-6IR right side panel:
Front Panel
Buttons
Figure 2: RC-8IR and RC-6IR Right Side Panel
Table 2: RC-8IR and RC-6IR Right Side Panel Features
# Feature Function
5 RELAY2
6 RELAY1
Connect each relay to a room item (such as lighting, screen
settings, blinds, and so on) 1
7 RS-485 Terminal Block
Connector
Connect to the RS-485 detachable terminal block on a switcher or
PC
8 RS-232 Terminal Block
Connector (1 and 2)
Connect to the RS-232 connector on the A/V equipment or a PC or
other Serial Controller
IR OUT1 PIN
GND PIN Connect to an IR emitter cable
9
IR OUT2 PIN
10 GND PIN Connects (-) to the Ground
11 +12VDC IN PIN Connects (+) to the connector for powering the unit
Figure 3 and Table 3 define the RC-6IR and the RC-8IR rear panel:
1 See the examples in Figure 4
