Your Universal Room Controller
3
4 Your Universal Room Controller

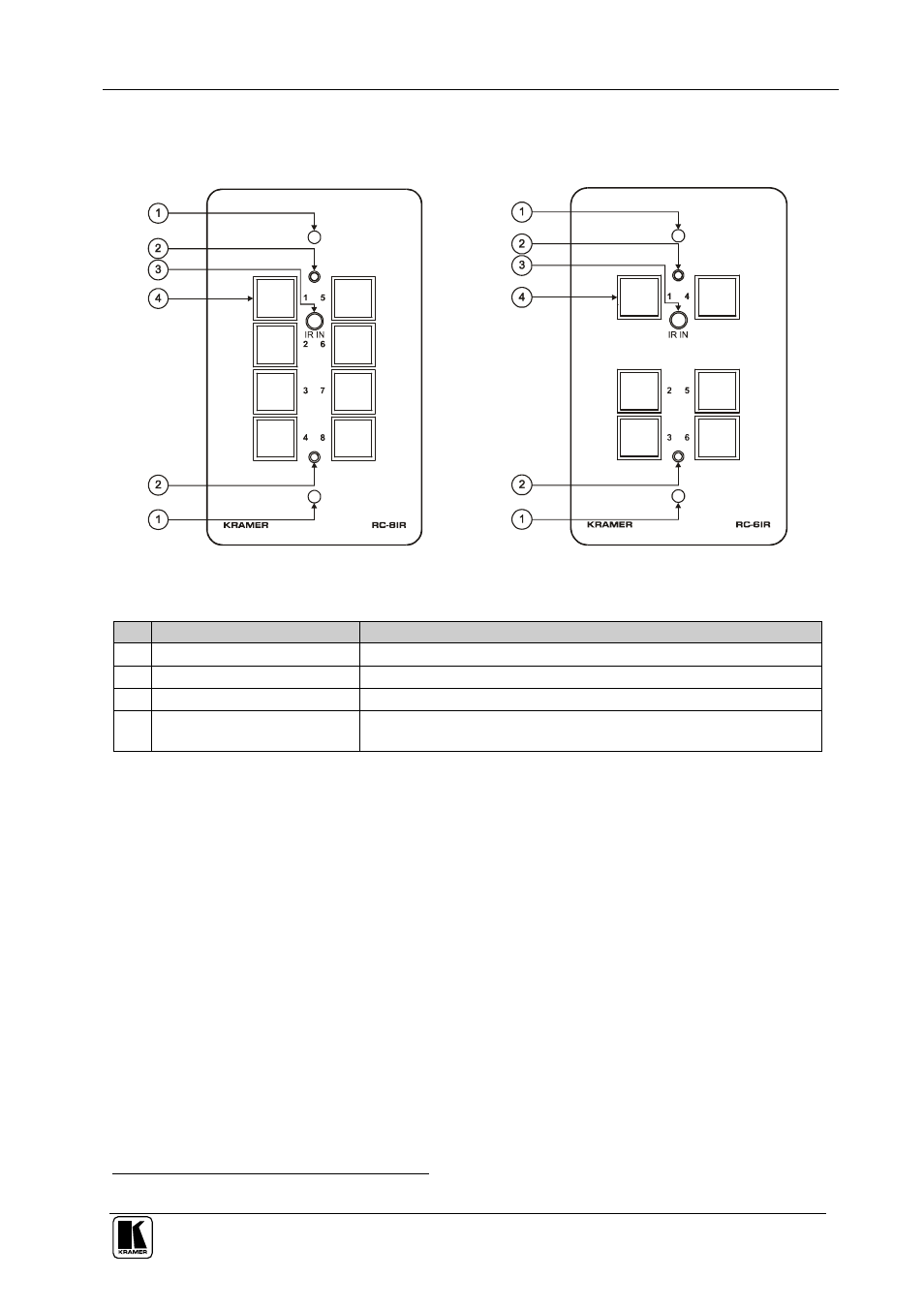

Figure 1 and Table 2 define the RC-8IR and the RC-6IR front panels:
Figure 1: RC-8IR and RC-6IR Front Panels
Table 1: RC-8IR and RC-6IR Front Panel Features
# Feature Function
1 Mounting holes (2) For fastening the controller in place
2 Faceplate Attachment Holes For attaching the faceplate to the controller 1
3 IR IN Receiver Accepts IR remote commands (for the IR-learner feature)
4 Configurable Control
Buttons (Macro Buttons)
Control the room and the A/V equipment (from 1 to 6 for the
RC-6IR , and from 1 to 8 for the RC-8IR )
1 These screws should not be removed during or after mounting
