8 RC-52A - Connecting the RC-52A Room Controller
4.3 Connecting the IR-OUT
Figure 6 shows how to connect the Kramer IR emitter (3.5mm to IR Emitter Control
Cable, P/N: C-A35/IRE-10). The white striped side connects to IR OUT, the black
side connects to the Ground, and the LED Emitter Shell is affixed to the IR sensor
window with the adhesive layer.

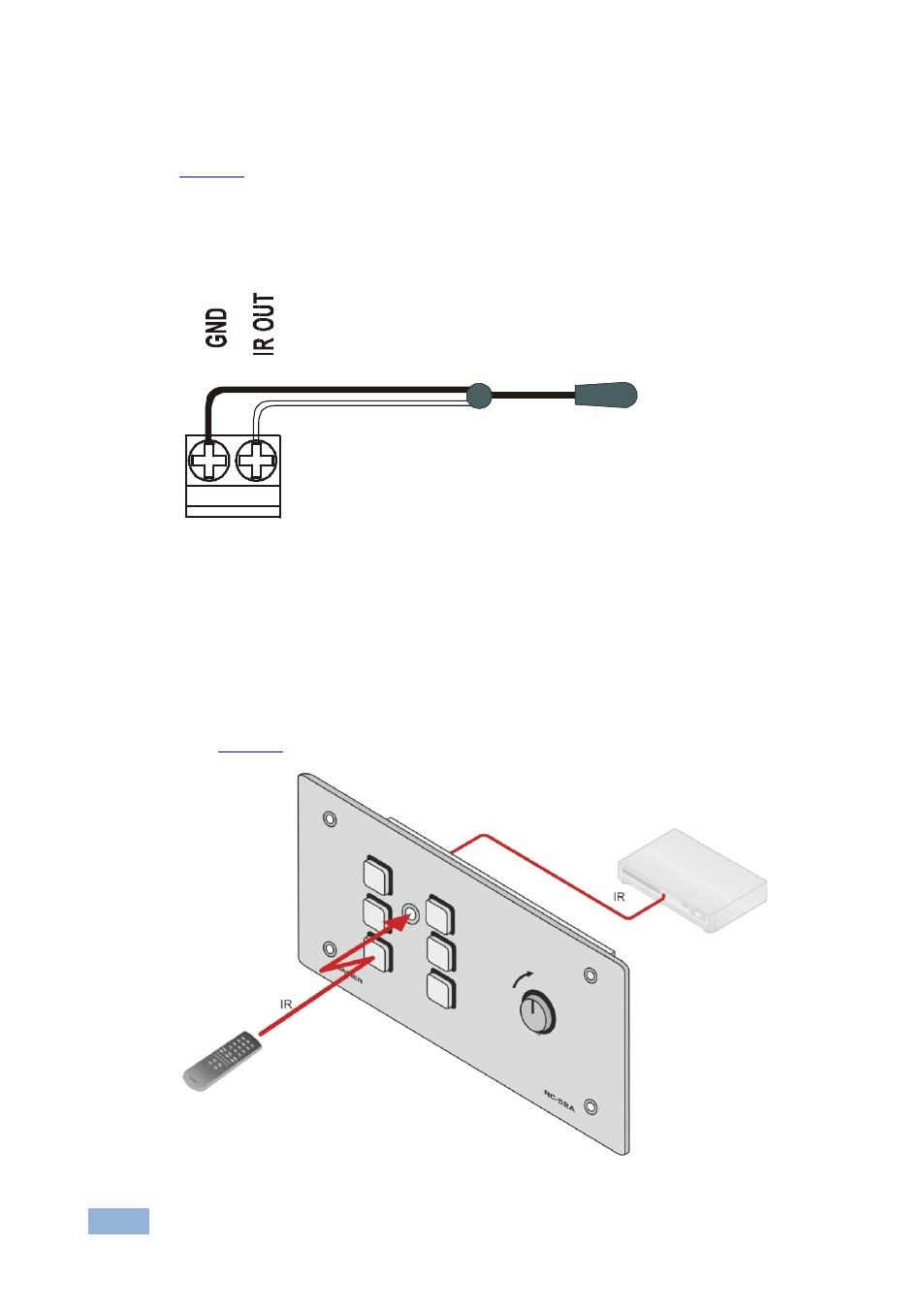

Figure 6: IR Emitter Wiring
4.4 Using the RC-52A as an IR Repeater
Once the RC-52A is mounted and powered, and the IR emitter is connected to a
piece of A/V equipment (for example, a DVD), you can use it as an IR signal
repeater, to extend the IR signal to that machine, which has no direct line-of-sight
(see
Figure 7 ).
Figure 7: IR Repeater Operation
