Using the P3K Wizard
15
15

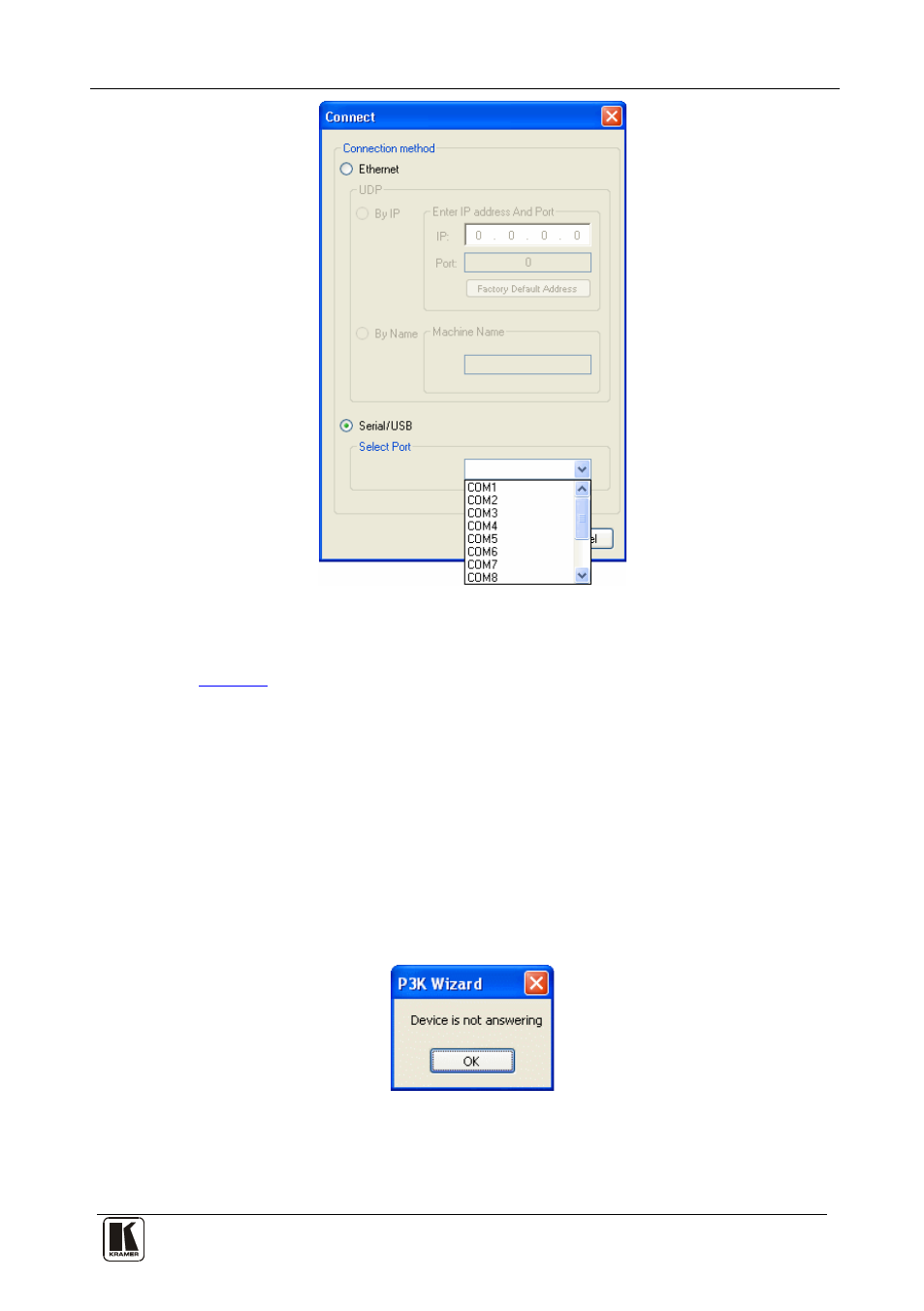

Figure 4: Connect Serial/USB
3. To upgrade using an RS-232 or USB connection, click Serial/USB (see
Figure 4 ).
 Click the drop-down box to show the COM ports
 Select a COM port to connect (from COM1 to
COM13) and click OK
Note: If you try to connect to a device and it does not respond, the
following error message appears. Click OK. Verify that the device is
powered on, the cable connection is good, and that you are trying to connect
by the correct method.
Do not operate the PROGRAM switch on the back panel. It is for factory
use only.
Figure 5: Error Message
