2 VP-790 Blending Images - Setting the Basic System
2 Setting the Basic System
The basic system, illustrated in Figure 1 , shows a video source distributed to two
VP-790 units and output to two identical projectors.

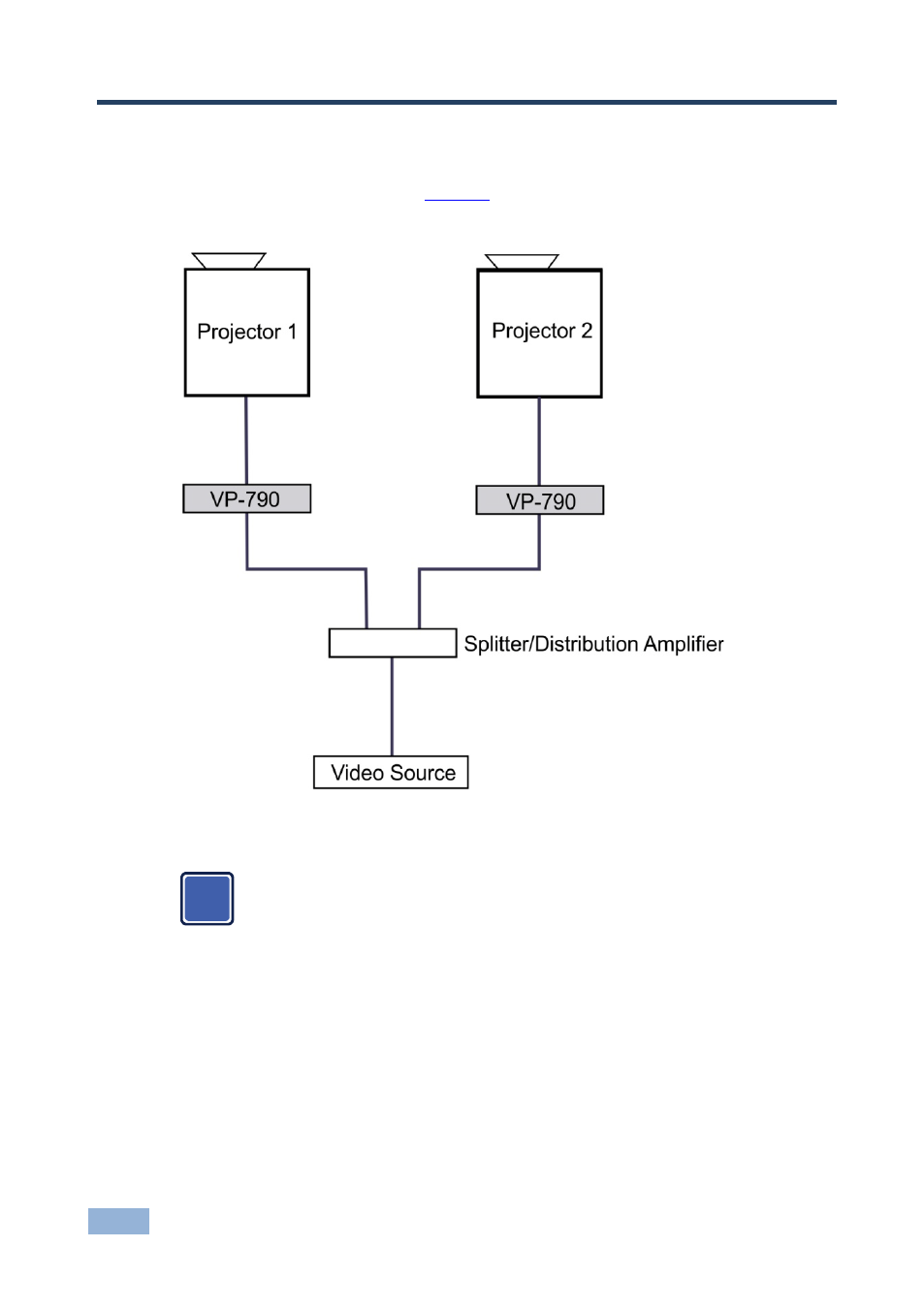

Figure 1: Basic Setup
One video source is distributed to both VP-790 units via a distribution
amplifier (for example, the Kramer VM-2Hxl).
Each VP-790 unit outputs the signal to a separate projector.
To successfully blend two or more projections:
• Each projector should be of the same manufacture and of the same model
• The projector lamps should be of the same age
• The color wheels should be designed for video
• The ‘dynamic gamma’ and ‘dynamic contrast’ applications should be set to off
