VP-790 Blending Images – Setting the 4-Corner Warp 11
2. In the main menu select Multiunit.
3. Select Blend Curve Type. Switch the Blend Curve Type to OFF to give a
clear image of the entire test pattern.
4. You can adjust the warp alignment in any of the following ways:
 Use the internal 4-Corner warp function (see below)
 Use the VP-790 Warp Generator application (see the online guide)
To align the warp via the 4-corner warp function:
1. In the top menu select Geometry and then set Application to Anyplace:

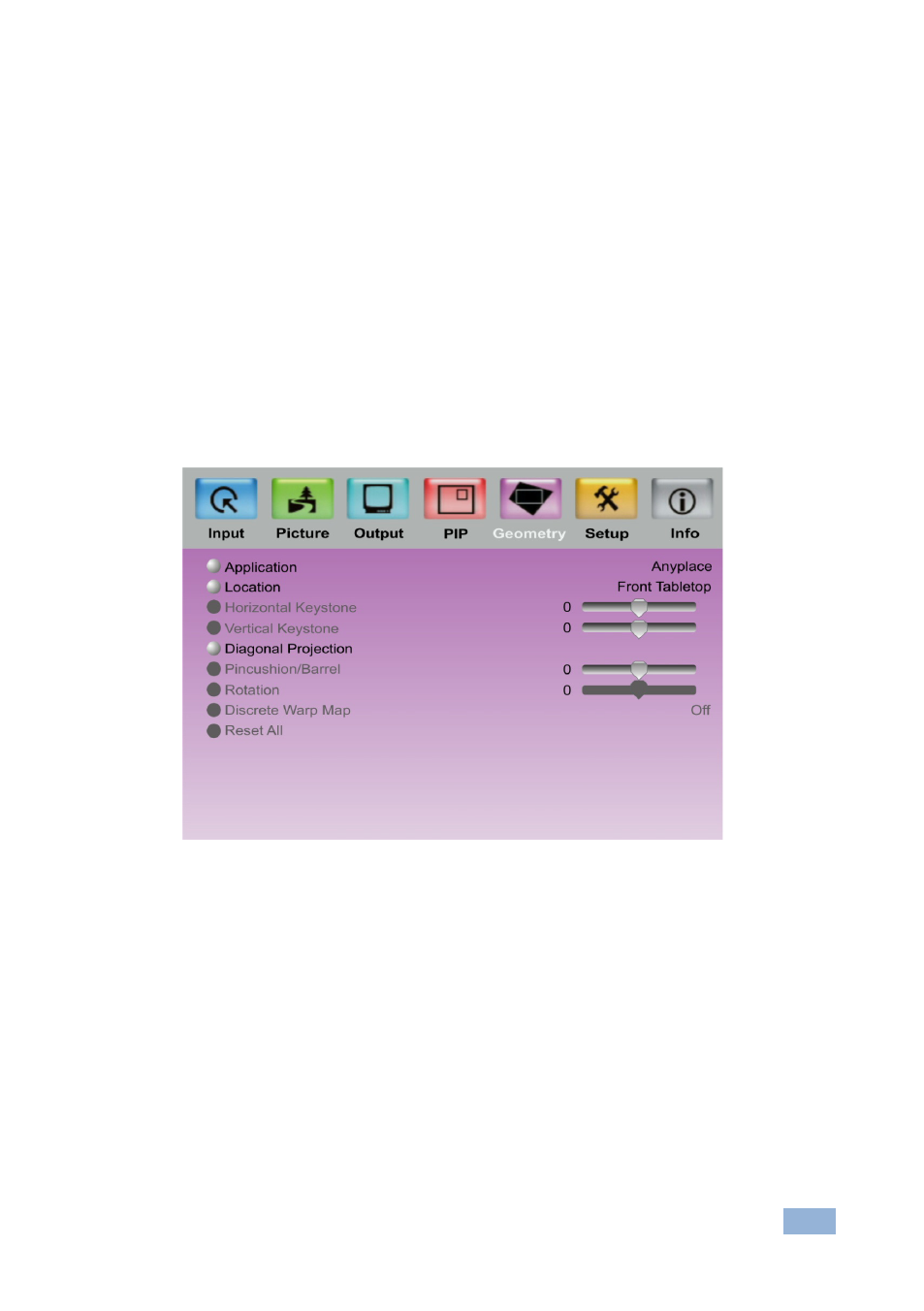

Figure 10: The Geometry Menu
2. Select Diagonal Projection.
The following window appears:
