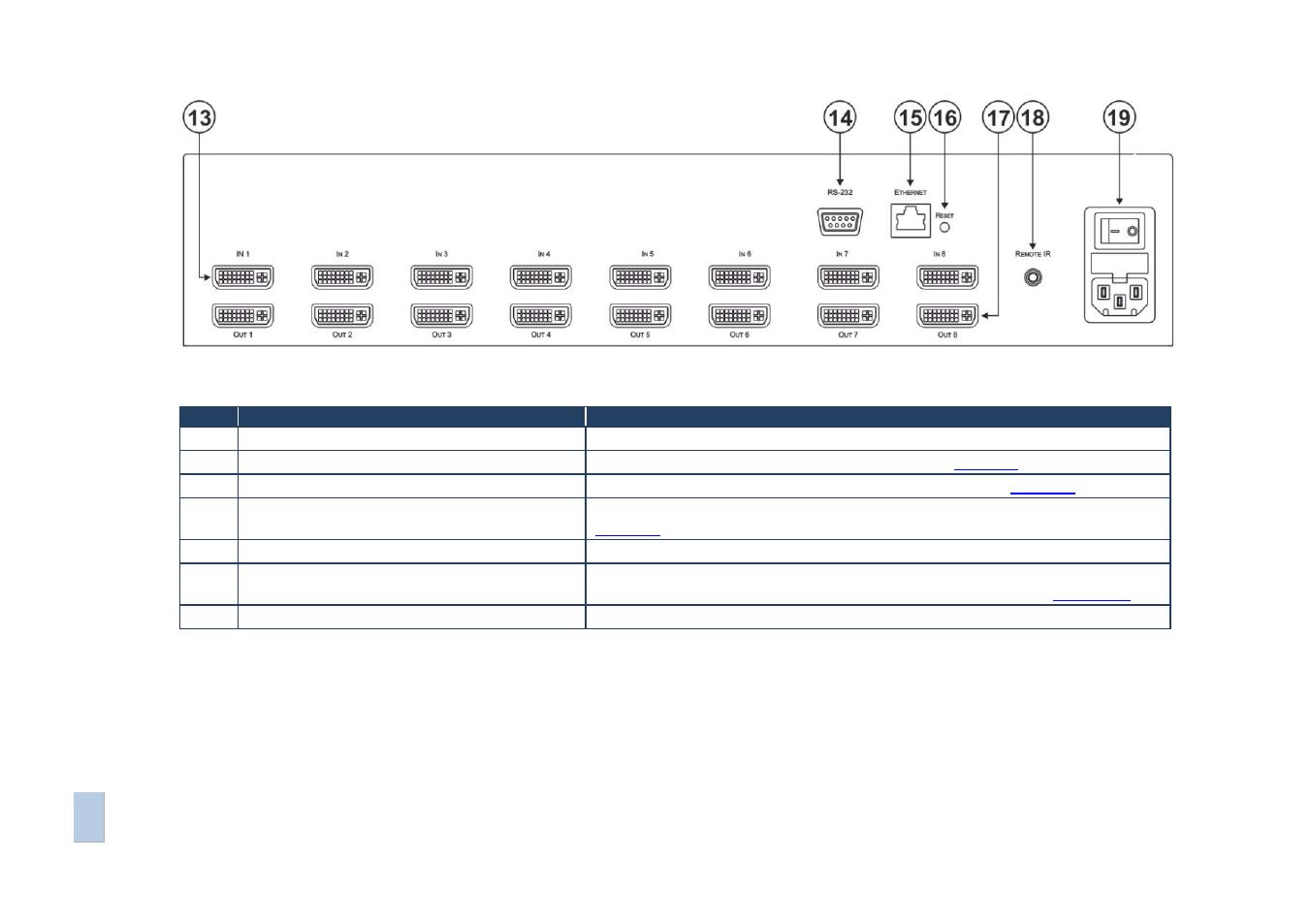

Figure 2: VS-88HDCPxl 8x8 DVI Matrix Switcher Rear Panel
# Feature Function
13 INPUT DVI Connectors Connect to the DVI sources (from 1 to 8)
14 RS-232 9-pin D-sub (F) Connector Connect to a PC or the serial remote controller (see Section 8 )
15 ETHERNET RJ-45 Connector Connect to a PC or other Ethernet controller via a LAN (see Section 8 )
16 RESET Button Press and hold to reset the Ethernet configuration to its factory default values (see
Section 8 )
17 OUTPUT DVI Connectors Connect to the DVI acceptors (from 1 to 8)
18 REMOTE IR 3.5mm Mini Jack Connect to an external IR receiver unit for controlling the machine via an IR
remote controller (instead of using the front panel IR receiver), see
Section 3.2
19 Mains Power Connector with Switch and Fuse Connect to the AC mains supply and use the switch to turn the device on or off
