U2121A-101 Operating Guide
Disassemble Procedure

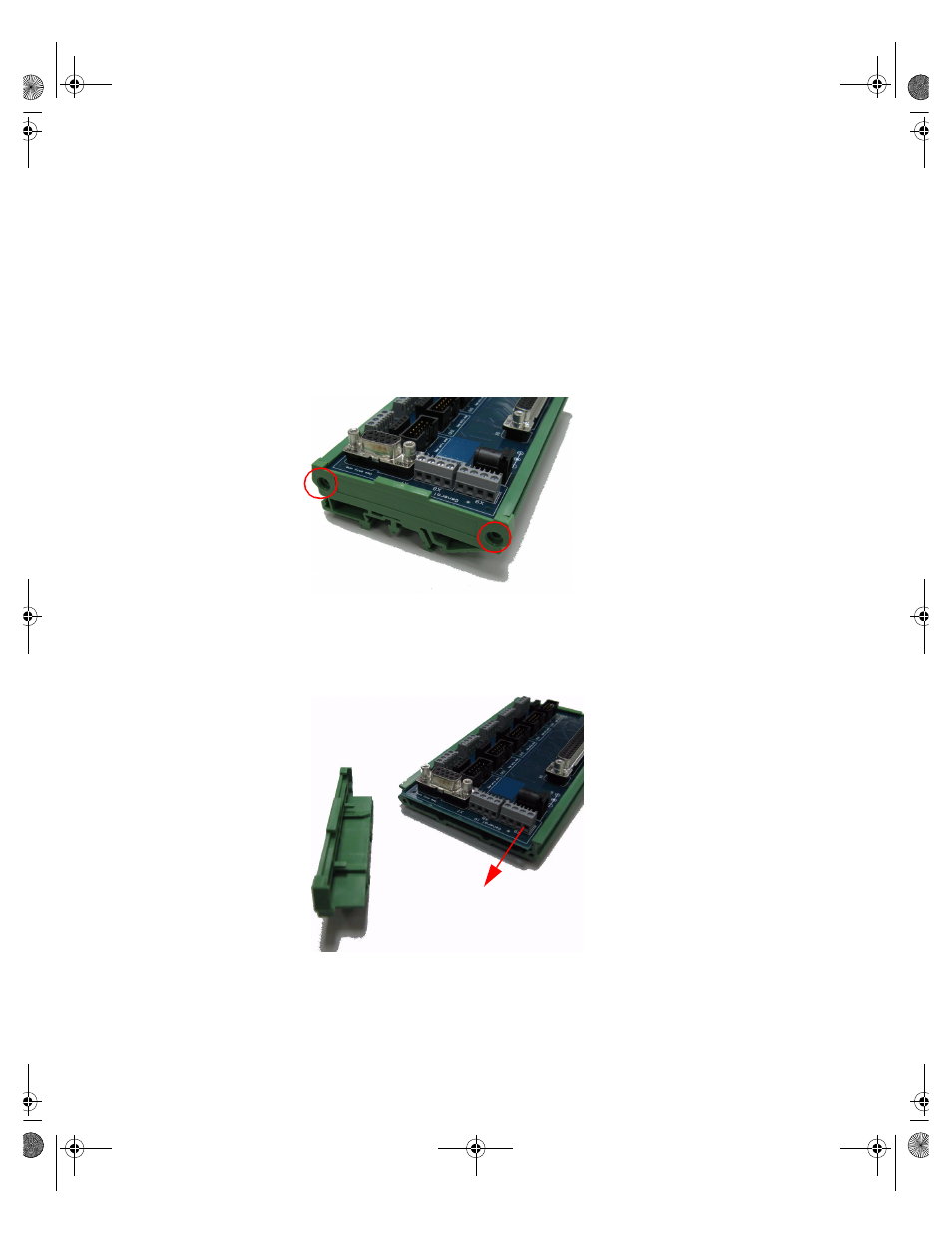

The following steps shows the disassemble procedure of the RF switch
driver board from its casing.
1 Remove the two screws on either side of the board.
2 Remove the side panel from the casing.
