Your VS-21A 2x1 Component Video / Digital Audio Switcher
2
Is housed in a desktop enclosure
Provides a simple solution for many switching needs and as the design is
passive, it does not need power, thus increasing its versatility
To achieve the best performance:
Connect only good quality connection cables, thus avoiding interference,
deterioration in signal quality due to poor matching, and elevated noise
levels (often associated with low quality cables)
Avoid interference from neighboring electrical appliances and position your
Kramer
VS-21A away from moisture, excessive sunlight and dust
4 Your VS-21A 2x1 Component Video / Digital Audio Switcher
Figure 1, Table 1 and Table 2 define the front and rear panels of the
VS-21A:

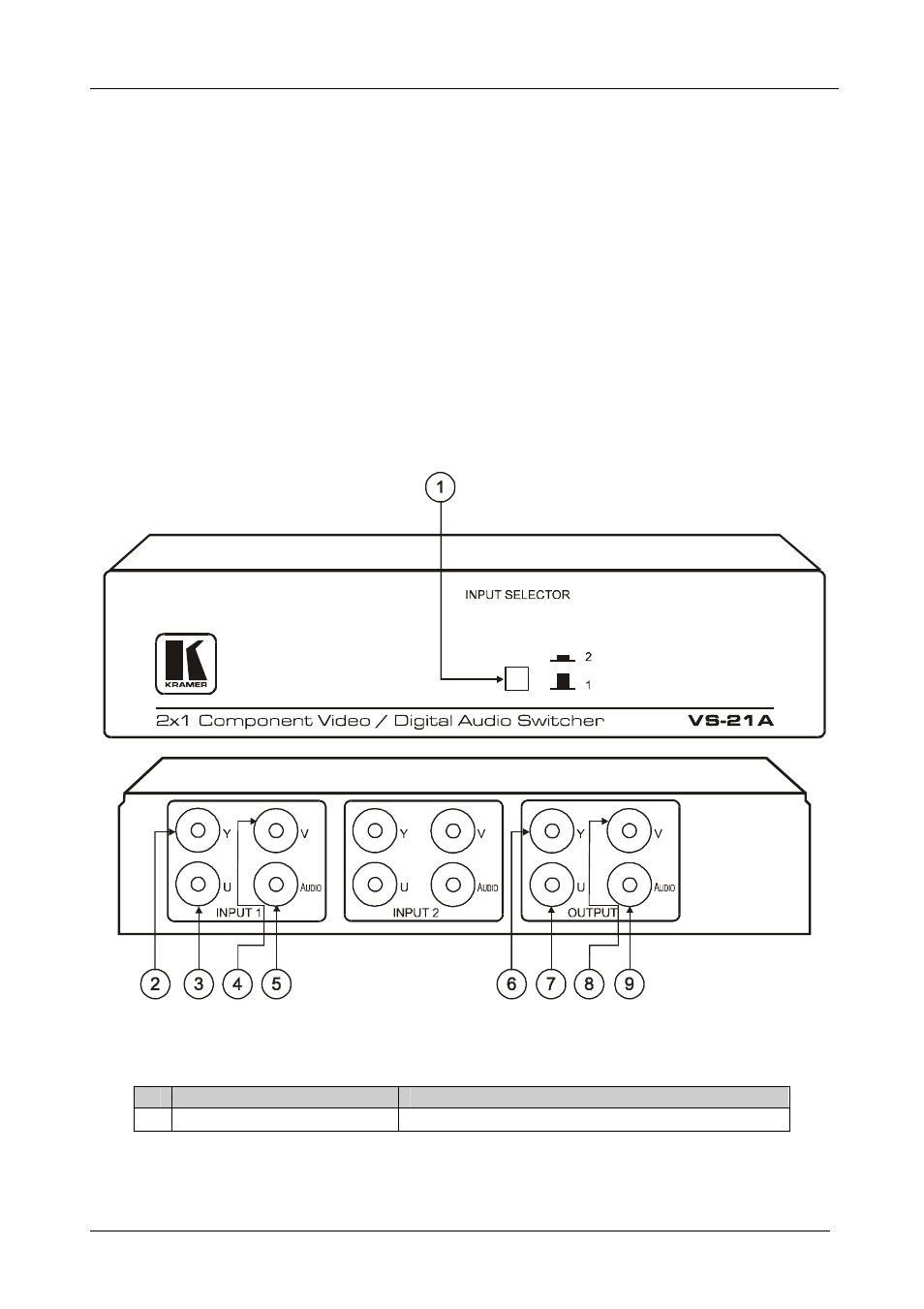

Figure 1: VS-21A 2x1 Component Video / Digital Audio Switcher
Table 1: Front Panel VS-21A 2x1 Component Video / Digital Audio Switcher Features
#
Feature
Function
1
INPUT SELECTOR Switch
Push in to select INPUT 2; release to select INPUT 1
