VS-12DPIR - Connecting the VS-12DPIR 7
4.1 Controlling via the REMOTE Terminal Block Connector
The contact closure remote control pins operate in a similar way to the output
SELECT button. Using the contact closure remote control lets you select an output
by remote control. To do so, temporarily connect the required input (OUT1 or
OUT2) pin on the REMOTE terminal block connector to the G (ground) pin, as
illustrated in the examples in Figure 3 .
Caution: DO NOT connect more than one PIN to the G PIN
at the same time
To select OUT 1, attach PIN OUT1 to the
G PIN: To select OUT 2, attach PIN OUT2 to the
G PIN:

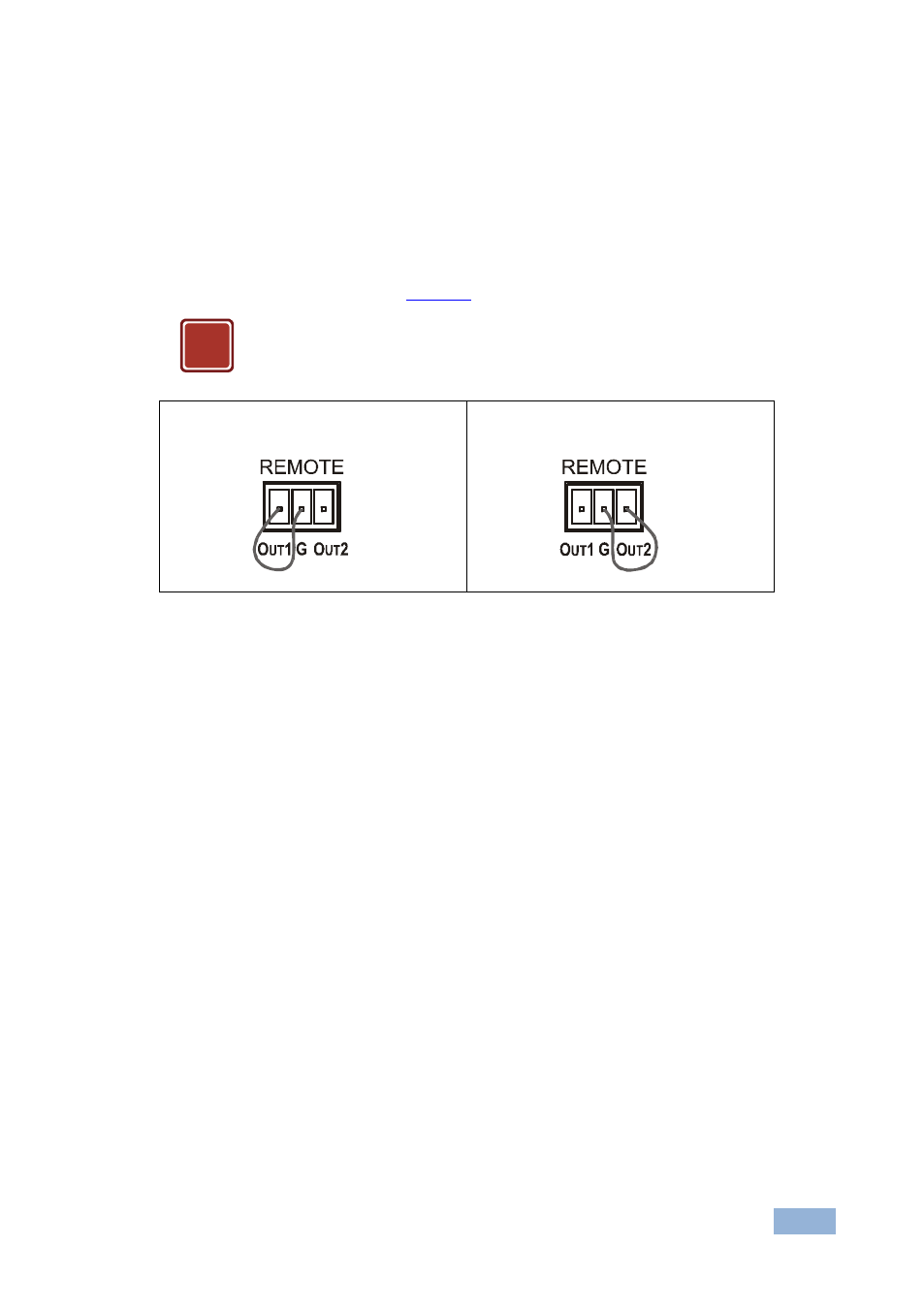

Figure 3: Connecting the REMOTE Input Select Connector
!
