VP-770 - Controlling the VP-770 51
51
Use the PIP pin to:

Toggle between the Single window display mode and the Dual window
display mode, by connecting the PIP pin and the G pin for more than 3
seconds

Select a PIP source
To select a PIP source, connect the PIP pin to the G pin and, within 3 seconds,
momentarily connect an input pin to the G pin. For example, to select the DP PIP
source, connect the PIP pin to the G pin and, within 3 seconds, the 5 pin to the G
pin, as illustrated in Figure 31 .

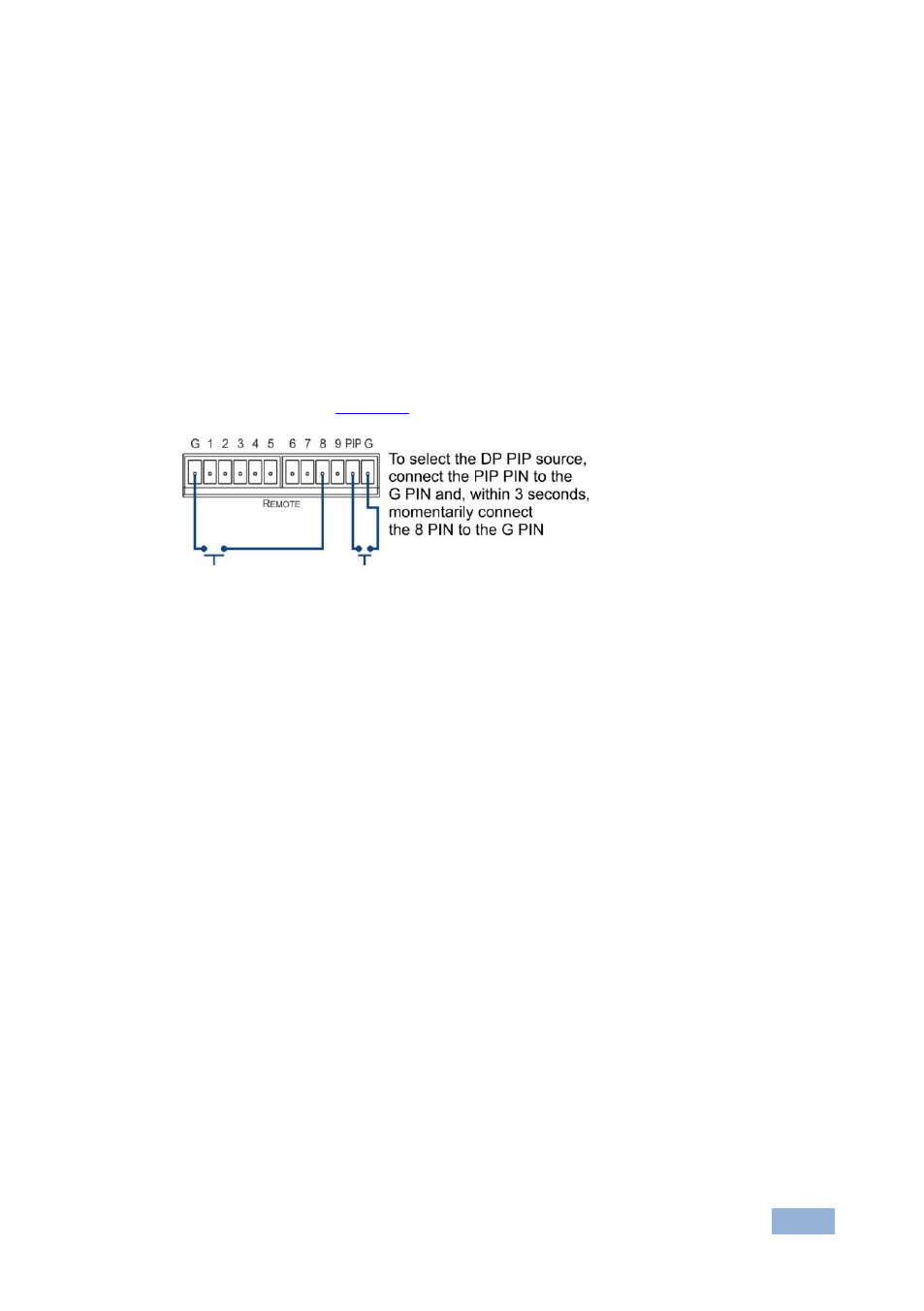

Figure 31: Connecting the PIP Contact Closure Remote Control PINs
