VP-770 - Controlling the VP-770 49
49

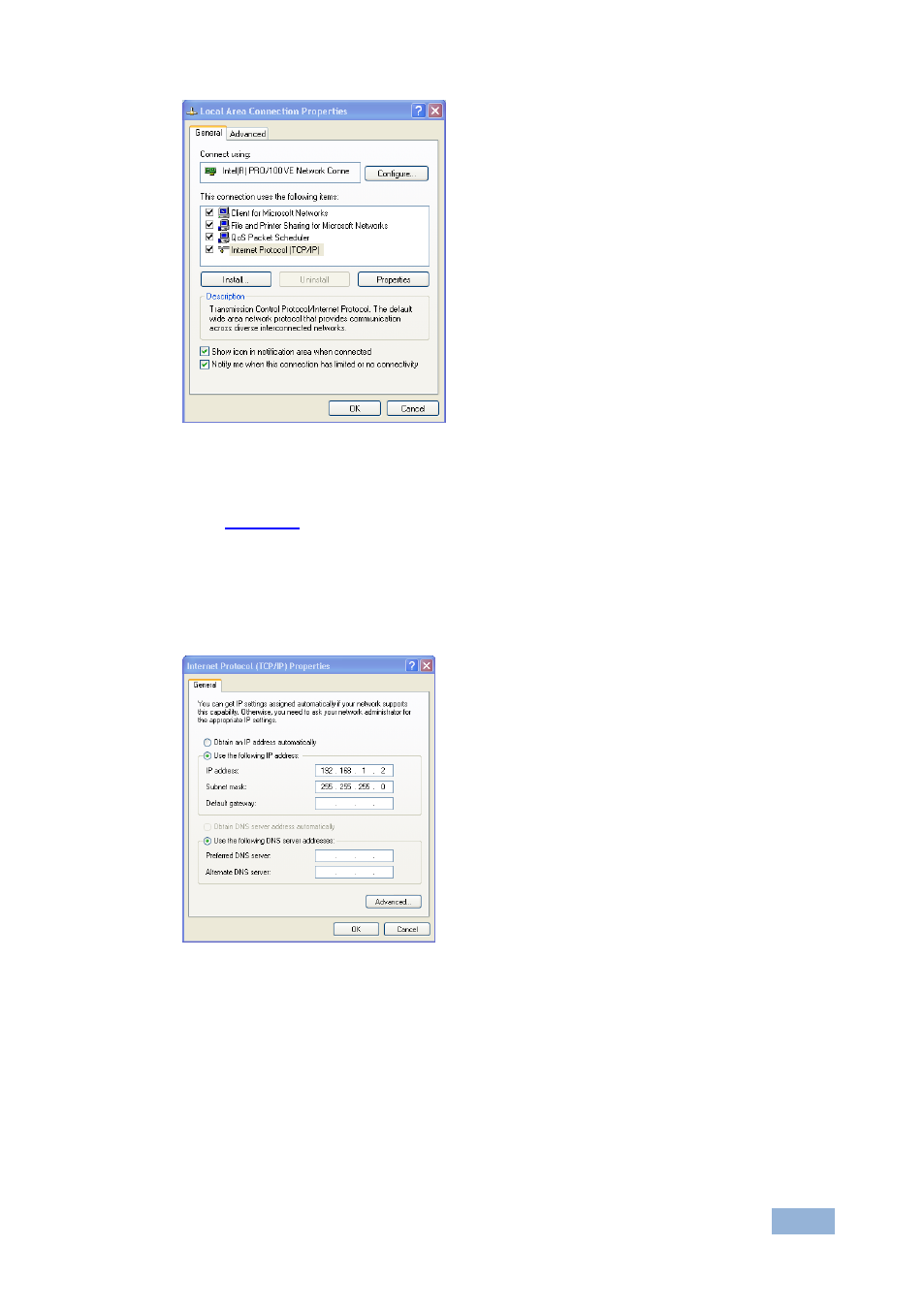

Figure 28: Local Area Connection Properties Window
6. Select Use the following IP Address, and fill in the details as shown in
Figure 29 . You can use any IP address in the range 192.168.1.1 to
192.168.1.255 (excluding 192.168.1.39) that is provided by your IT
department.
7. Click OK.
Figure 29: Internet Protocol (TCP/IP) Properties Window
8.5.2 Connecting the ETHERNET Port via a Network Hub (Straight-
Through Cable)
You can connect the Ethernet port of the VP-770 to the Ethernet port on a network
hub or network router, via a straight-through cable with RJ-45 connectors.
