KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your VP-747T Presentation Switcher Control Panel
6

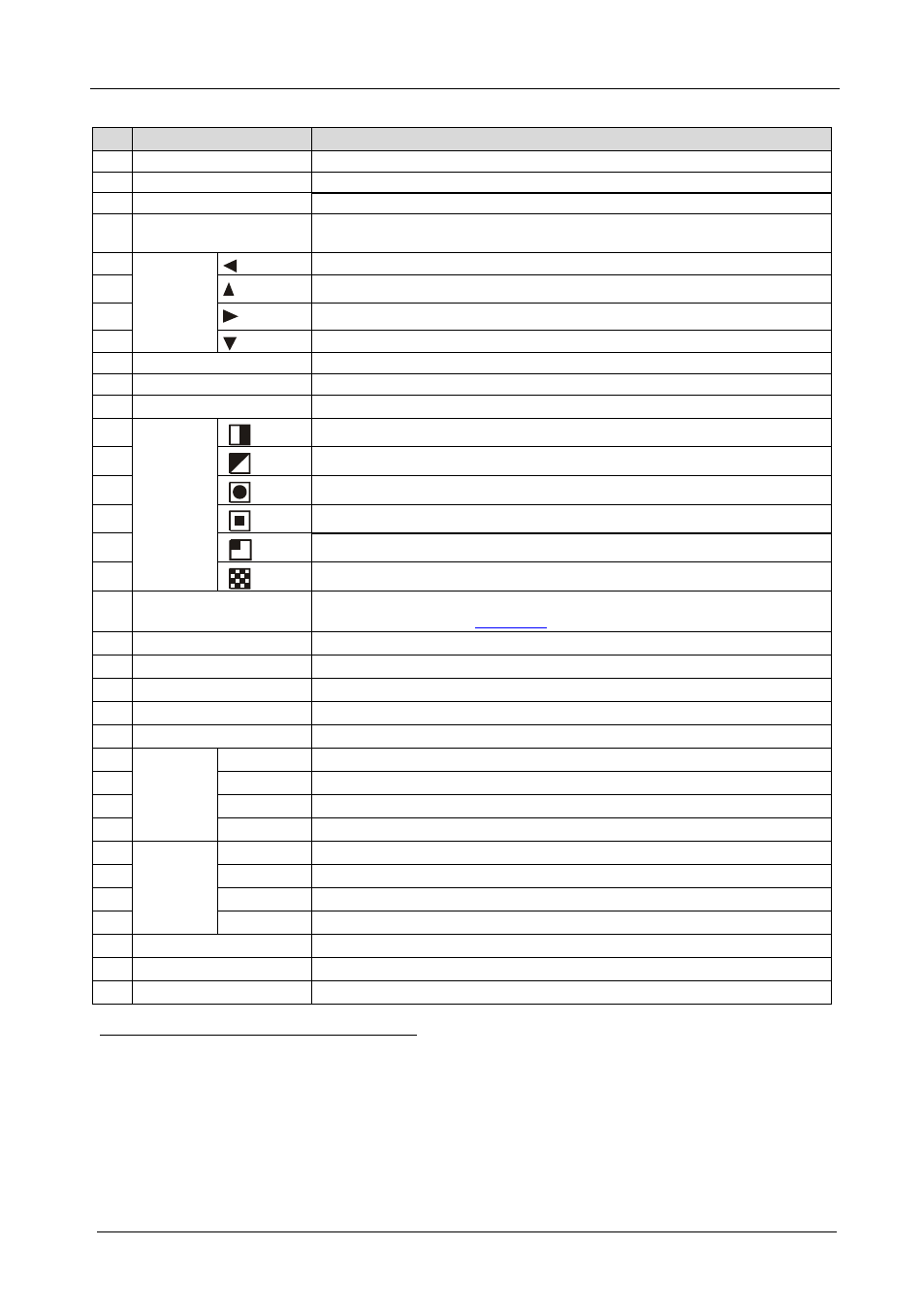

Table 1: VP-747T Presentation Switcher Control Panel Features
# Feature Function
1 LAMP Button Toggles the gooseneck lamp ON/OFF
2 MENU Button Displays the OSD Menu screen (or moves to the previous level in the OSD menu)
3 ENTER Button Moves to the next level in the OSD menu
4 CONTROLLER ON
Button
Toggles the VP-747T Presentation Switcher Control Panel ON/OFF
5
O
S
D
N
A
V
IG
A
T
IO
N
B
ut
to
ns
Toggles within each level 2 command / decreases the range by one step
6 Moves up one step (in the same level) in the OSD menu
7 Toggles within each level 2 command / increases the range by one step
8 Moves down one step (in the same level) in the OSD menu
9 OSD Button Activates/deactivates access to the OSD Menu
1
10 FADE
2
Button Selects a dissolved transition from the PREVIEW to the PROGRAM output
11 CUT
2
Selects an instantaneous transition from the PREVIEW to the PROGRAM output Button
12
T
R
A
N
S
IT
IO
N
B
ut
tons
3
5,
Selects a WIPE transition effect
13 Selects a DIAGONAL transition effect
14 Selects a CIRCLE transition effect
15 Selects a SQUARE transition effect
16 Selects a CORNER transition effect
17 Selects a CHESSBOARD transition effect
18 WIPE DIRECTION
Buttons
Choose the direction of the effect
4
: inwards, outwards, “left to right”, “right to
left”, “up” or “down” (see Section 8.1
19
)
SPEED Knob Adjusts the TAKE button transition speed
20 TAKE Button
5
Pressing TAKE causes the transition to occur automatically
21 PREVIEW LED Lights when the T-bar Controller is directed upwards
22 PREVIEW LED Lights when the T-bar Controller is directed downwards
23 T-bar Control Lever
6
Slide to manually implement the effect using the T-bar handle
24
P
R
OGR
A
M
B
ut
to
ns
PIP Toggles the picture-in-picture function on and off
25 BLANK Toggles between a blank screen and the selected input
26 FREEZE Freezes the output video image (toggle)
27 INPUTS Selects one of the sources: R/P R , G/Y/CV, B/P B /C, H S /C S , V S (from 1 to 8)
28
PR
EVI
EW
B
ut
to
ns
PIP Toggles the picture-in-picture function on and off
29 BLANK Toggles between a blank screen and the selected input
30 FREEZE Freezes the output video image (toggle)
31 INPUTS Selects one of the sources: R/P R , G/Y/CV, B/P B /C, H S /C S , V S (from 1 to 8)
32 MACHINE # Button Pressing selects which MACHINE # is controlled
33 7-segment LED Display Shows the MACHINE #
34 Lamp Connector Connects to the gooseneck lamp
1 The LCD is not affected by the OSD setting
2 Only for setting up the unit for the effect. The effect will only occur when the Take button is pressed, or the T-bar is moved
3 Select a specific effect for the transition from the PREVIEW output to the PROGRAM output
4 From where the effect starts
5 The effect is only seen in PROGRAM Mode. The PREVIEW screen will blank during the transition
6 An alternative to using the TAKE button
