14 VP-730 - Connecting the VP-730
5.2 Connecting the Balanced/Unbalanced Stereo Audio
Input/Output

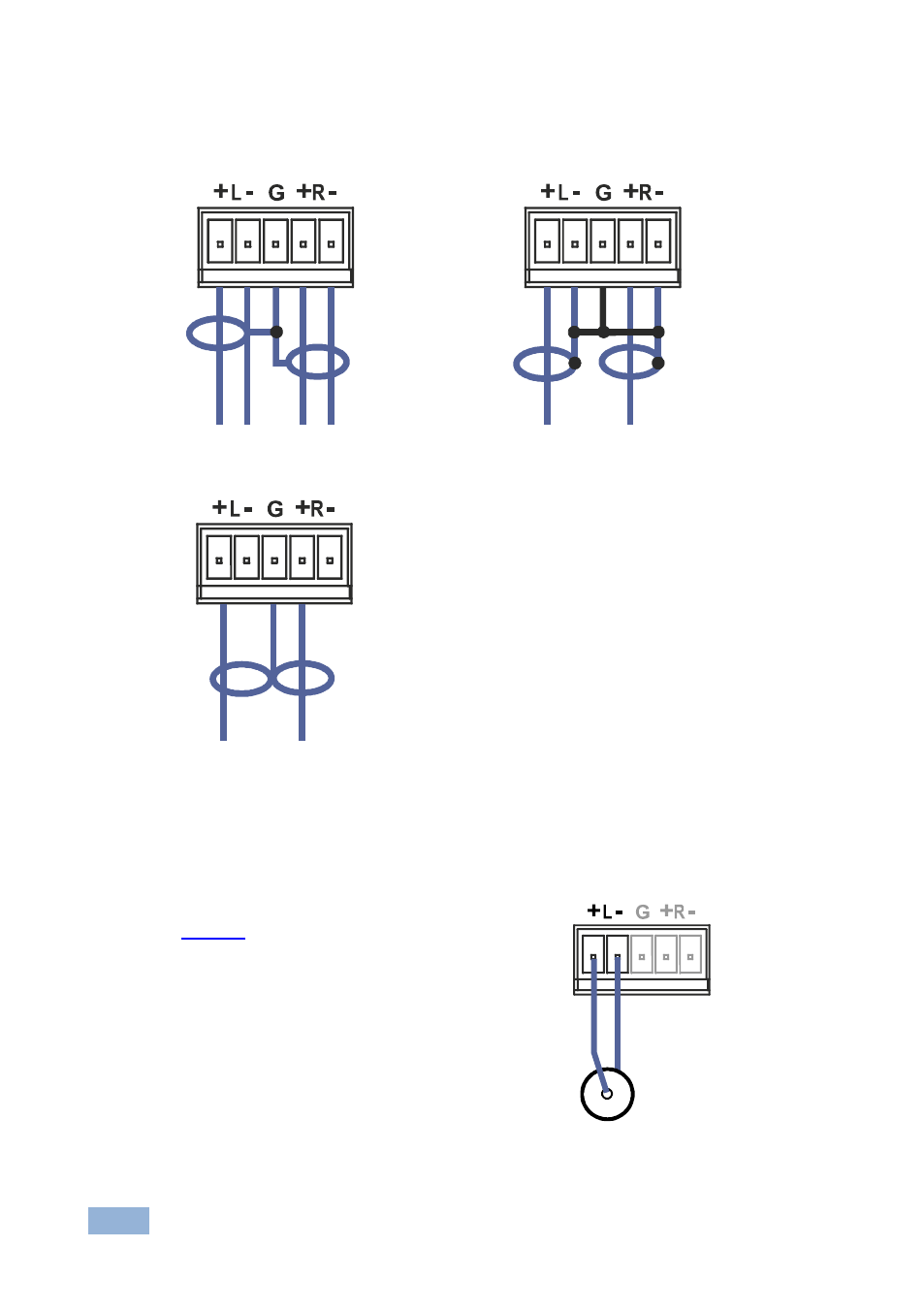

Figure 6: Connecting the Balanced
Stereo Audio Input/Output
Figure 7: Connecting the Unbalanced
Stereo Audio Input
Figure 8: Connecting an Unbalanced
Stereo Audio Acceptor to the Balanced
Output
5.3 Connecting the Digital S/PDIF Audio Input
Figure 9 illustrates how to connect a
digital S/PDIF audio source to the
terminal block by wiring the first two
terminal block PINs to an RCA
connector using two wires; PIN L+ to
S/PDIF, and PIN L– to GND:
Figure 9: Connecting the Digital S/PDIF
Audio Input
L+ to S/PDIF L- to GND
