Kramer Electronics VP-730 User Manual
Page 13

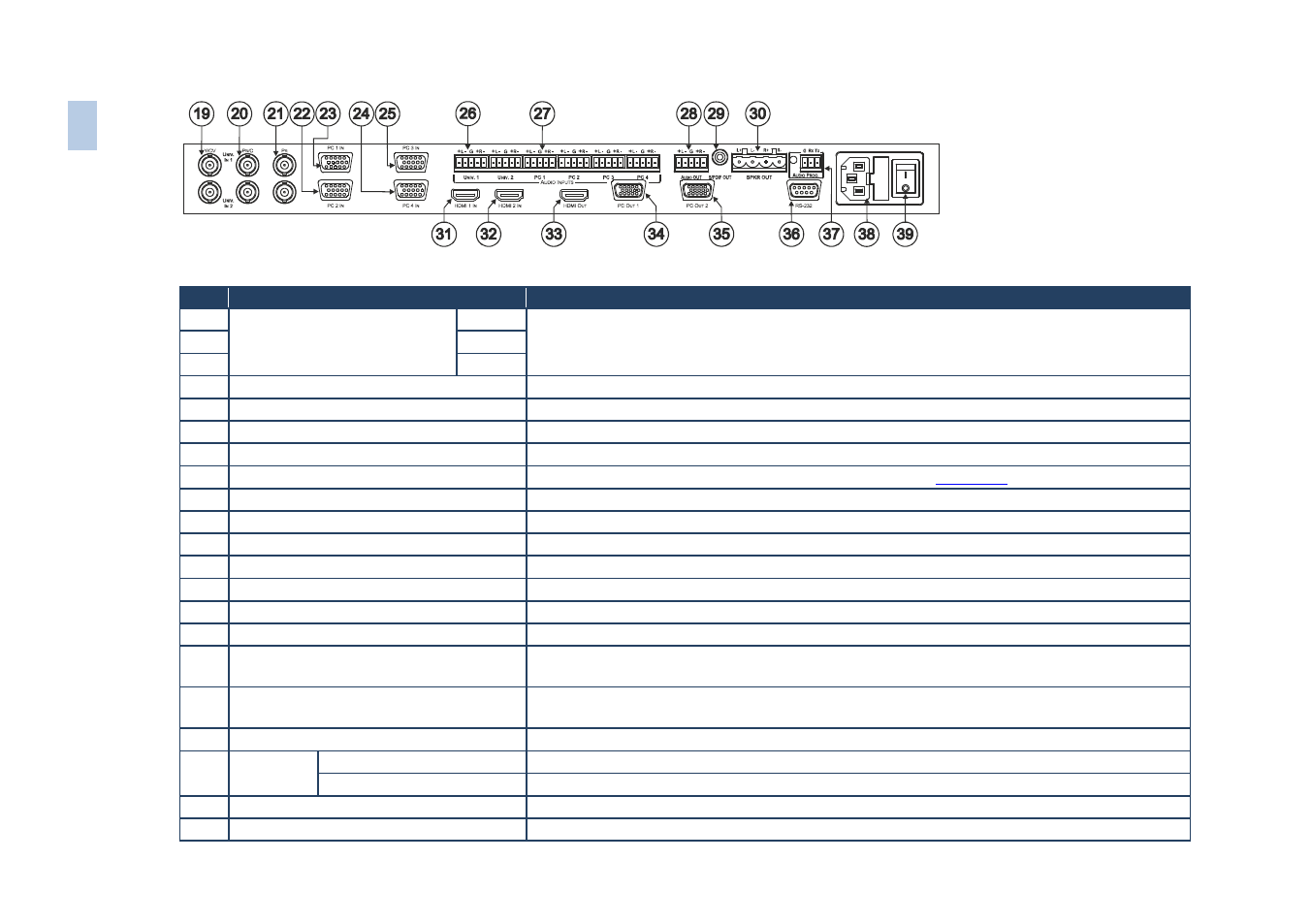

Figure 2: VP-730 Presentation Switcher/Scaler Rear Panel
#
Feature
Function
19
UNIV. IN BNC Connectors
(from 1 to 2)
Y/CV
Connect to the video acceptor which can be either composite video (
Y
/CV), s-Video (Y/
CV
,
P
B
/C ) or
component video (Y/
CV
, P
B
/
C
, P
R
)
20
P
B
/C
21
P
R
22
PC 2 IN 15-pin HD Connector
Connects to the computer graphics source 2
23
PC 1 IN 15-pin HD Connector
Connects to the computer graphics source 1
24
PC 4 IN 15-pin HD Connector
Connects to the computer graphics source 4
25
PC 3 IN 15-pin HD Connector
Connects to the computer graphics source 3
26
UNIV. AUDIO INPUT 5-pin Terminal Block
Connects to the balanced stereo analog or digital S/PDIF (See
Section
) audio sources from 1 to 2
27
PC AUDIO INPUT 5-pin Terminal Block
Connects to the balanced stereo analog or digital S/PDIF audio sources from 1 to 4
28
AUDIO OUT 5-pin Terminal Block
Connects to the balanced stereo analog audio acceptor
29
S/PDIF 3.5 Mini Jack Connector
Connects to a digital audio source
30
SPKR OUT 4-pin Terminal Block
Connects to a pair of loudspeakers
31
HDMI 1 IN Connector
Connects to the HDMI 1 source
32
HDMI 2 IN Connector
Connects to the HDMI 2 source
33
HDMI OUT Connector
Connects to the HDMI acceptor
34
PC OUT 1 15-pin HD Connector
Connects to the video acceptor 1 that displays the scaled output
In the default HDTV mode, the signal goes out via 3 PINS: PIN 1 is P
R
, PIN 2 is Y, PIN 3 is P
B
35
PC OUT 2 15-pin HD Connector
Connects to the video acceptor 2 that displays the scaled output
In the default HDTV mode, the signal goes out via 3 PINS: PIN 1 is P
R
, PIN 2 is Y, PIN 3 is P
B
36
RS-232 9-pin D-sub Connector
Connects to PC or Serial Controller
37
AUDIO
PROG
Program Button
Push to upgrade to the latest audio firmware, Release for normal operation
Terminal Block Connector
Connect to a PC for audio firmware upgrade
38
Power Connector with Fuse
AC connector enabling power supply to the unit
39
POWER Switch
Switch for turning the machine ON or OFF
