10 VP-441 - Connecting the VP-441
9. Connect the VGA VIDEO OUTPUT 15-pin HD connector to a VGA acceptor
(for example, a projector).
10. Connect the audio output signals to the OUT stereo analog audio acceptor
and/or the digital audio acceptor, as required (not shown in Figure 3 ).
11. Connect the power cord (not shown in Figure 3 ).
12. If required, connect:
 A PC via RS-232, see Section 6.3

The ETHERNET port, see Section
6.4

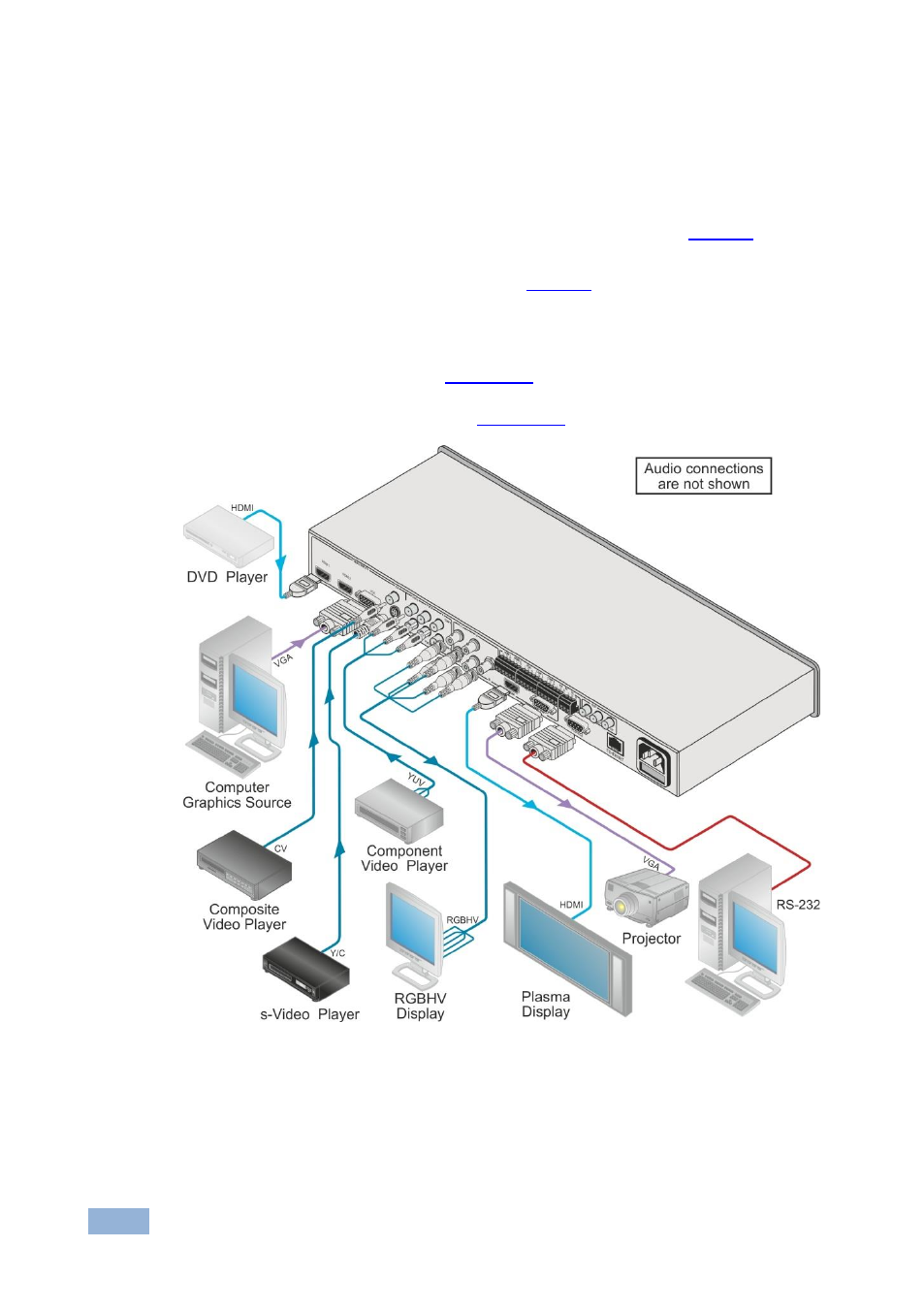

Figure 3: Connecting the VP-441 Presentation Switcher / Scaler
