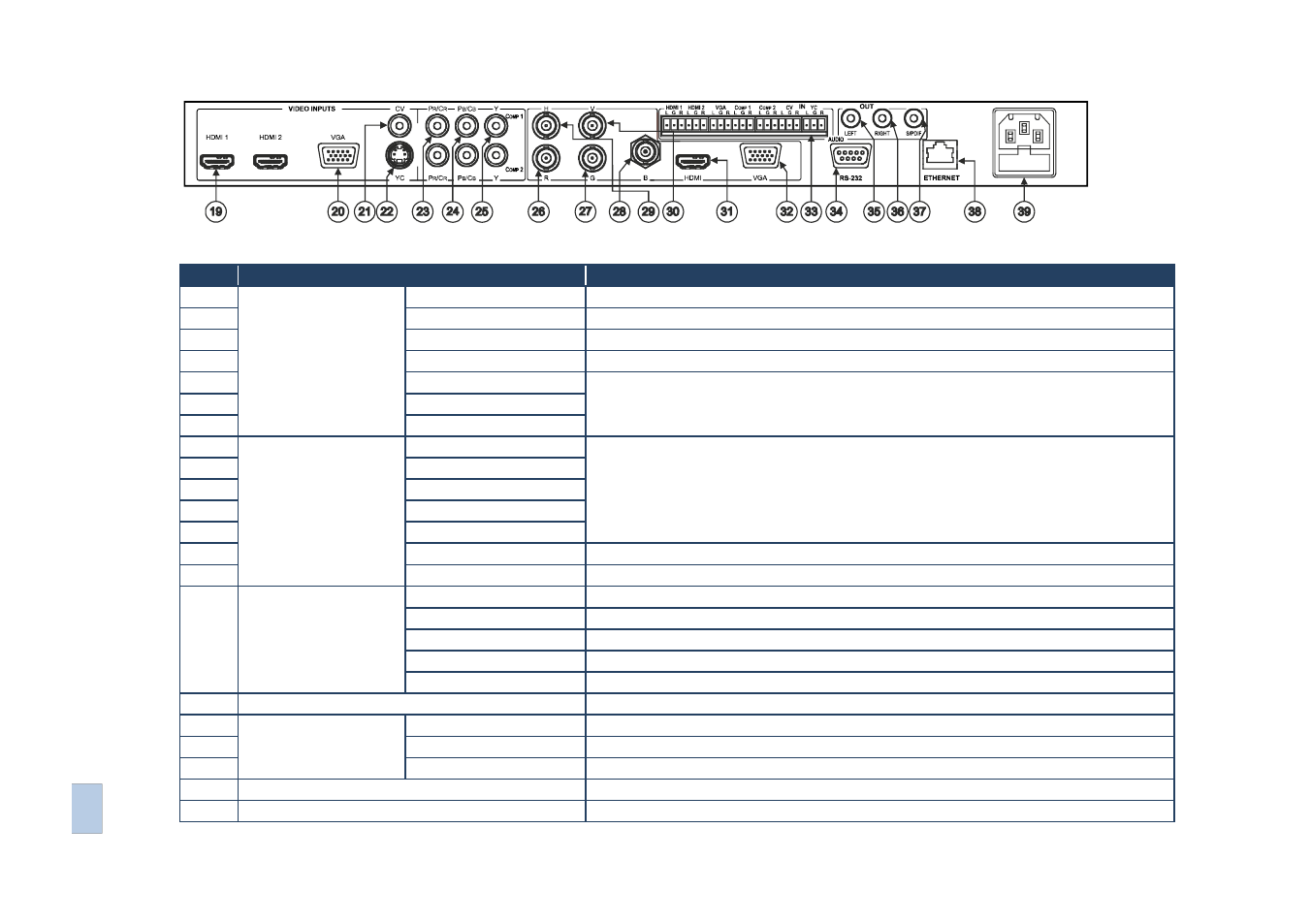

Figure 2: VP-441 Presentation Switcher/Scaler Rear Panel
# Feature Function
19 VIDEO INPUT
Connectors HDMI Connect to the HDMI source (from 1 to 2)
20 VGA 15-pin HD Connect to the computer graphics source
21 CV RCA Connect to the composite video source
22 YC 4-pin Connect to the s-Video source
23 Pr/Cr RCA
Connect all three connectors to the component video source (from 1 to 2) 24 Pb/Cb RCA
25 Y RCA
26
VIDEO OUTPUT
Connectors
R BNC
27 G BNC
28 B BNC Connect to the RGBHV video acceptor
29 H BNC
30 V BNC
31 HDMI Connect to the HDMI acceptor
32 VGA 15-pin HD Connect to a VGA acceptor
33 AUDIO IN Unbalanced
Stereo Terminal Block
Connectors HDMI Connect to the analog audio HDMI source (from 1 to 2)
VGA Connect to the analog audio computer graphics source
COMP Connect to the analog audio component video source (from 1 to 2)
CV Connect to the analog audio composite video source
YC Connect to the analog audio s-Video source
34 RS-232 9-pin D-sub Port Connect to the PC or the remote controller
35 OUT RCA Connectors LEFT Connect to the left stereo analog audio acceptor
36 RIGHT Connect to the right stereo analog audio acceptor
37 S/PDIF Connect to a digital audio acceptor
38 ETHERNET Connector Connects to the PC or other Serial Controller through computer networking
39 Power Connector with Fuse AC connector, enabling power supply to the unit
