Your 6241N 4x1 SDI Switcher

4

4

Your 6241N 4x1 SDI Switcher

Figure 1 and Table 1 define the unit.

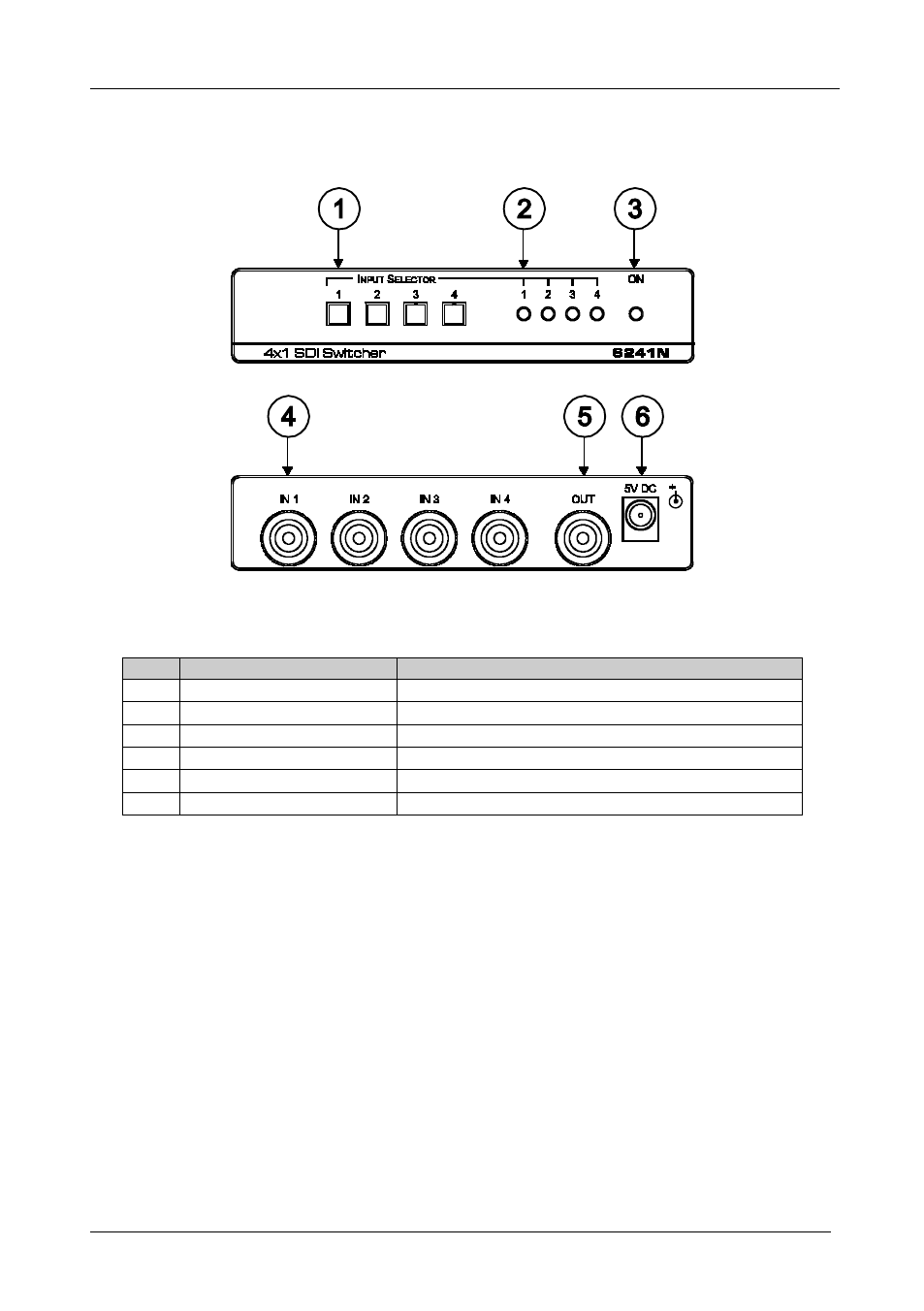

Figure 1: 6241N 4x1 SDI Switcher Functions

Table 1: 6241N 4x1 SDI Switcher Functions

#

Feature

Function

1

INPUT SELECTOR Switches

Select the serial digital video sources (from 1 to 4)

2

INPUT SELECTOR LEDs

Illuminate for the selected input (from 1 to 4)

3

ON LED

Illuminates when receiving power

4

INPUT BNC Connectors

Connect to the serial digital video sources

(75Ω) (1 to 4)

5

OUT BNC Connector

Connect to the serial digital video acceptor

(75Ω)

6

5V DC

+5V DC connector for powering the unit
