Technical Specifications
10
6.1 Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors

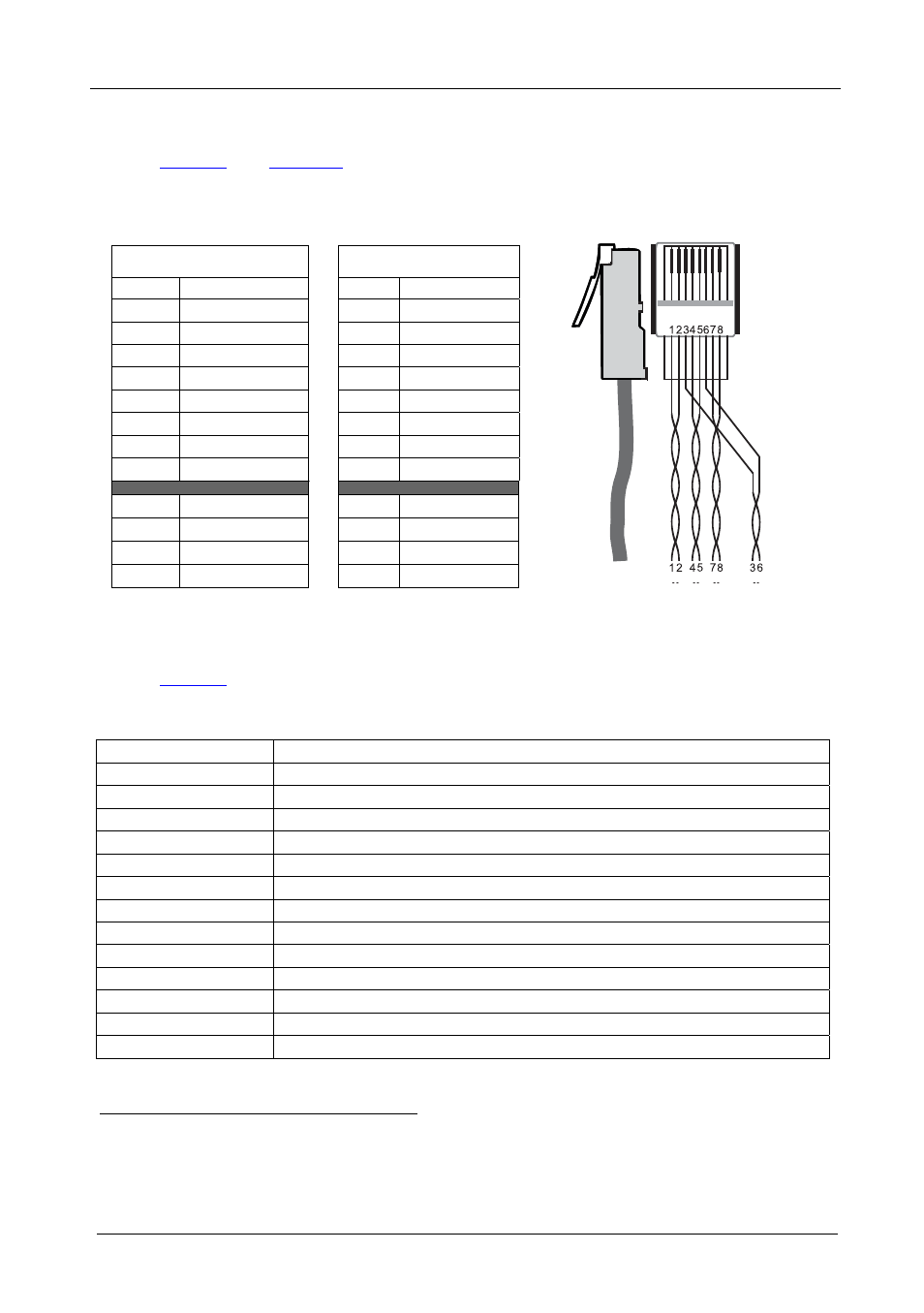

Table 3 and Figure 4 define the UTP CAT 5 PINOUT, using a straight pin
to pin cable with RJ-45 connectors:
Table 3: CAT 5 PINOUT Figure 4: CAT 5 PINOUT
EIA /TIA 568A EIA /TIA 568B
PIN Wire Color PIN Wire Color
1 Green / White 1 Orange / White
2 Green 2 Orange
3 Orange / White 3 Green / White
4 Blue 4 Blue
5 Blue / White 5 Blue / White
6 Orange 6 Green
7 Brown / White 7 Brown / White
8 Brown 8 Brown
Pair 1 4 and 5 Pair 1 4 and 5
Pair 2 3 and 6 Pair 2 1 and 2
Pair 3 1 and 2 Pair 3 3 and 6
Pair 4 7 and 8 Pair 4 7 and 8
7 Technical Specifications
Table 4 defines the technical specifications
1
:
Table 4: Technical Specifications
2
of the TP-210
INPUTS: 1 XGA on an 15-pin HD (F) connector
OUTPUTS: 2 XGA on 15-pin HD (F) connectors; 10 CAT 5 on RJ-45 connectors
MAX. OUTPUT LEVEL: 1.9Vpp/1.6Vpp 3
RESOLUTION: Up to UXGA
DIFF. GAIN: 0.03%/2.5%
3
DIFF. PHASE: 0.05 Deg/0.5 Deg
3
K-FACTOR: <0.05%/<0.05%
3
S/N RATIO @5MHz: 73.6dB/68.5dB
3
CONTROLS: Level: -9.6dB to 2.4dB; EQ. @50MHz: 0 to 37.6dB, CAT 5 by TP-120
COUPLING: AC/DC
POWER SOURCE: 100 – 240V AC, 50/60Hz, 54 VA
DIMENSIONS: 19” x 7” x 1U (W, D, H)
WEIGHT: 2.5kg (5.5lbs) approx.
ACCESSORIES: Power cord
1 Specifications for 60m of CAT 5 cable, unless otherwise specified
2 Specifications are subject to change without notice
3 For XGA/CAT 5 system (including TP-120)
