Your TP-114 1:4 XGA/HD DA/CAT 5 Transmitter
5
4 Your TP-114 1:4 XGA/HD DA/CAT 5 Transmitter

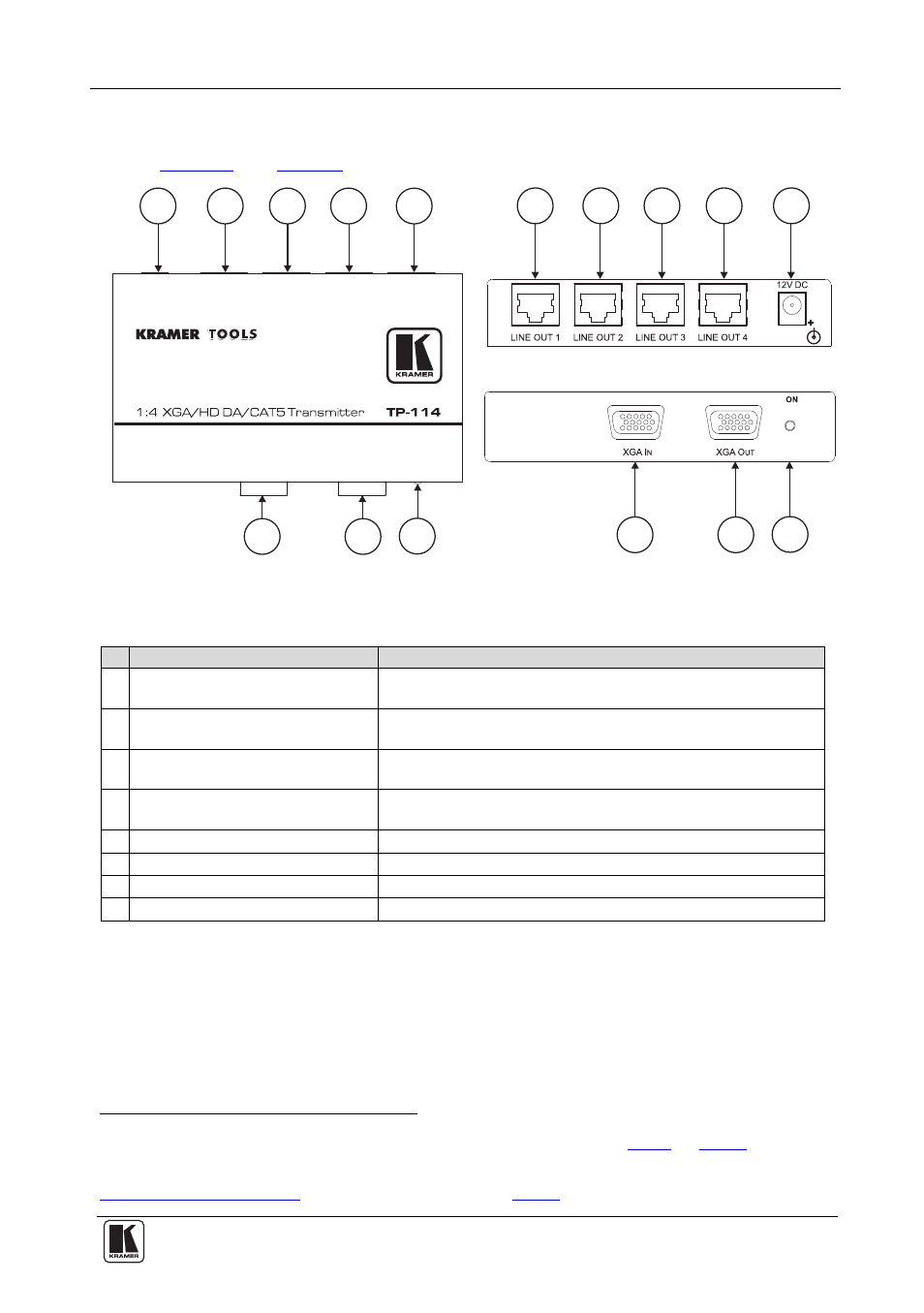

Figure 1 and Table 1 define the TP-114:
Figure 1: TP-114 1:4 XGA/HD DA/CAT 5 Transmitter
Table 1: TP-114 1:4 XGA/HD DA/CAT 5 Transmitter Features
# Feature Function
1 LINE OUT 1 RJ-45 Connector Connects to
1
the LINE IN RJ-45 connector on the (first) TP-120
XGA Line Receiver 2
2 LINE OUT 2 RJ-45 Connector Connects to
1
the LINE IN RJ-45 connector on the (second)
TP-120 XGA Line Receiver
2
3 LINE OUT 3 RJ-45 Connector Connects to
1
the LINE IN RJ-45 connector on the (third) TP-120
XGA Line Receiver
2
4 LINE OUT 4 RJ-45 Connector Connects to 1 the LINE IN RJ-45 connector on the (fourth)
TP-120 XGA Line Receiver
2
5 12V DC +12V DC connector for powering the unit
6 XGA IN 15-pin HD Connector Connect to the XGA source
7 XGA OUT 15-pin HD Connector Connect to the XGA acceptor
8 ON LED Illuminates when receiving power
1 Using a UTP CAT 5 cable with RJ-45 connectors at both ends (the PINOUT is defined in Table 3 and Figure 4 )
2 Refer to the separate user manual: PT-110, PT-120, TP-120, WP-110, which can be downloaded from the Internet at:
http://www.kramerelectronics.com . Also, see the example illustrated in Figure 3
1 1 2 2 4 4 3 3 5
8 8 6 6 7 7
