Technical Specifications
9
5.1
Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors
define the UTP CAT 5 PINOUT, using a straight pin
to pin cable with RJ-45 connectors:
Table 3: CAT 5 PINOUT

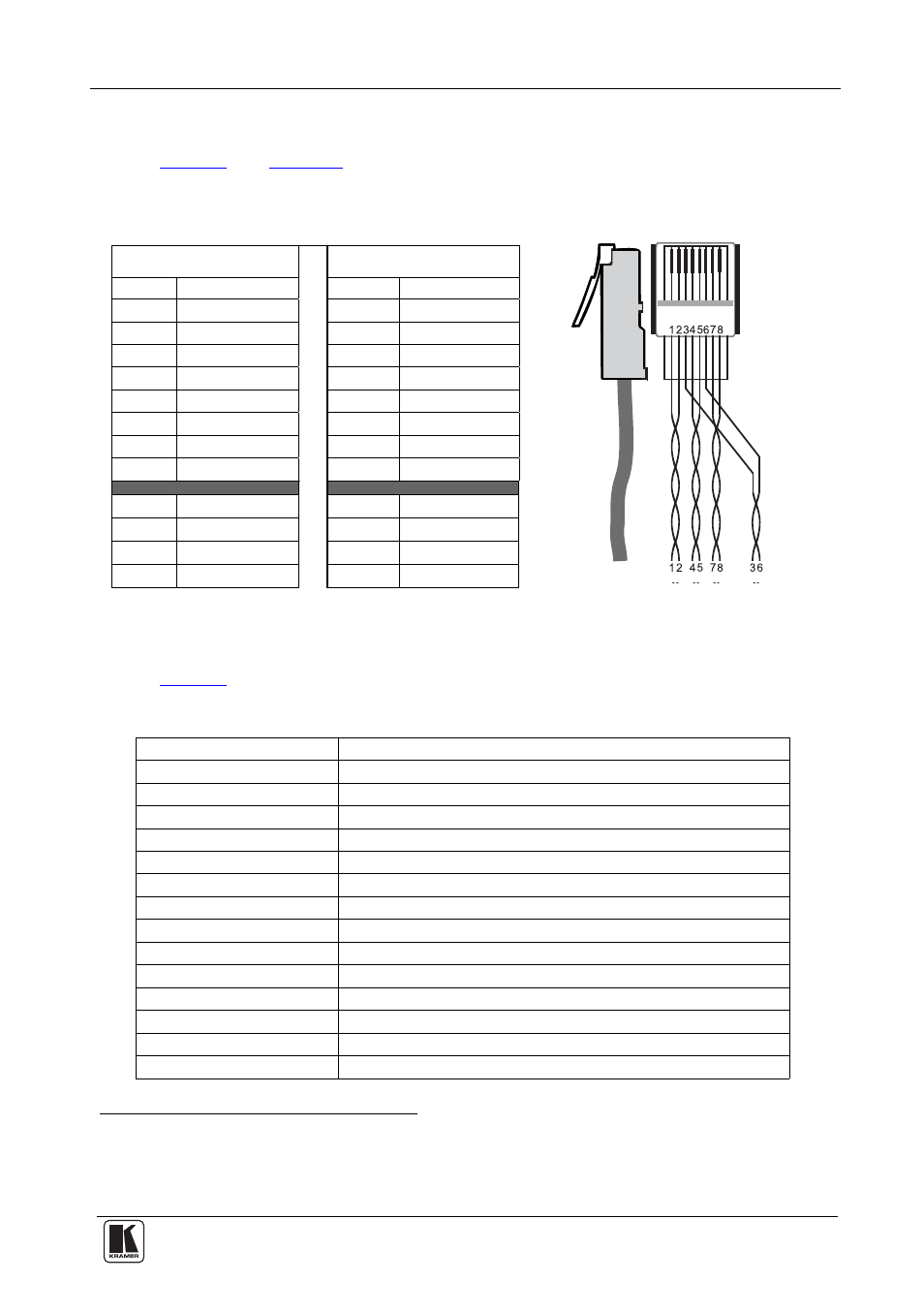

Figure 4: CAT 5 PINOUT
EIA /TIA 568A
EIA /TIA 568B
PIN
Wire Color
PIN
Wire Color
1
Green / White
1
Orange / White
2 Green
2 Orange
3
Orange / White
3
Green / White
4 Blue
4 Blue
5
Blue / White
5
Blue / White
6 Orange
6 Green
7
Brown / White
7
Brown / White
8 Brown
8 Brown
Pair 1
4 and 5
Pair 1
4 and 5
Pair 2
3 and 6
Pair 2
1 and 2
Pair 3
1 and 2
Pair 3
3 and 6
Pair 4
7 and 8
Pair 4
7 and 8
6 Technical
Specifications
includes the technical specifications
of the TP-114.
Table 4: Technical Specifications of the TP-114 (with 100m CAT 5 cable)
INPUT:
1 XGA on an 15-pin HD connector
OUTPUTS:
1 XGA on an 15-pin HD connector, 4 RJ-45 OUT connectors
MAX. OUTPUT LEVEL:
1.8Vpp (XGA), 1.6Vpp (CAT 5)
MAX. RESOLUTION
: UXGA,
1080P
DIFF. GAIN
:
0.03% (XGA), 7% (CAT 5)
DIFF. PHASE
:
0.05° (XGA), 0.08° (CAT 5)
K-FACTOR
:
<0.05% (XGA), 0.3% (CAT 5)
S/N RATIO
:
75dB (XGA), 73dB (CAT 5)
CONTROLS
:
2 switches for sync inversion
COUPLING
:
DC (XGA), AC (CAT 5)
POWER SOURCE:
12V DC, 880mA
DIMENSIONS:
12cm x 7.15cm x 2.76cm (4.7" x 2.8" x 1.08") W, D, H
WEIGHT:
0.3kg (0.67lbs) approx.
ACCESSORIES: Power
supply
OPTIONS:
RK-3T 19” rack adapter
1 Specifications are subject to change without notice
2 For the TP-114 Transmitter/ TP-120 Receiver pair
3 Sufficient for feeding two receivers via CAT 5
