KRAMER: SIMPLE CREATIVE TECHNOLOGY

Configuring a 1:2 XGA/HD-to-Twisted Pair DA System

6

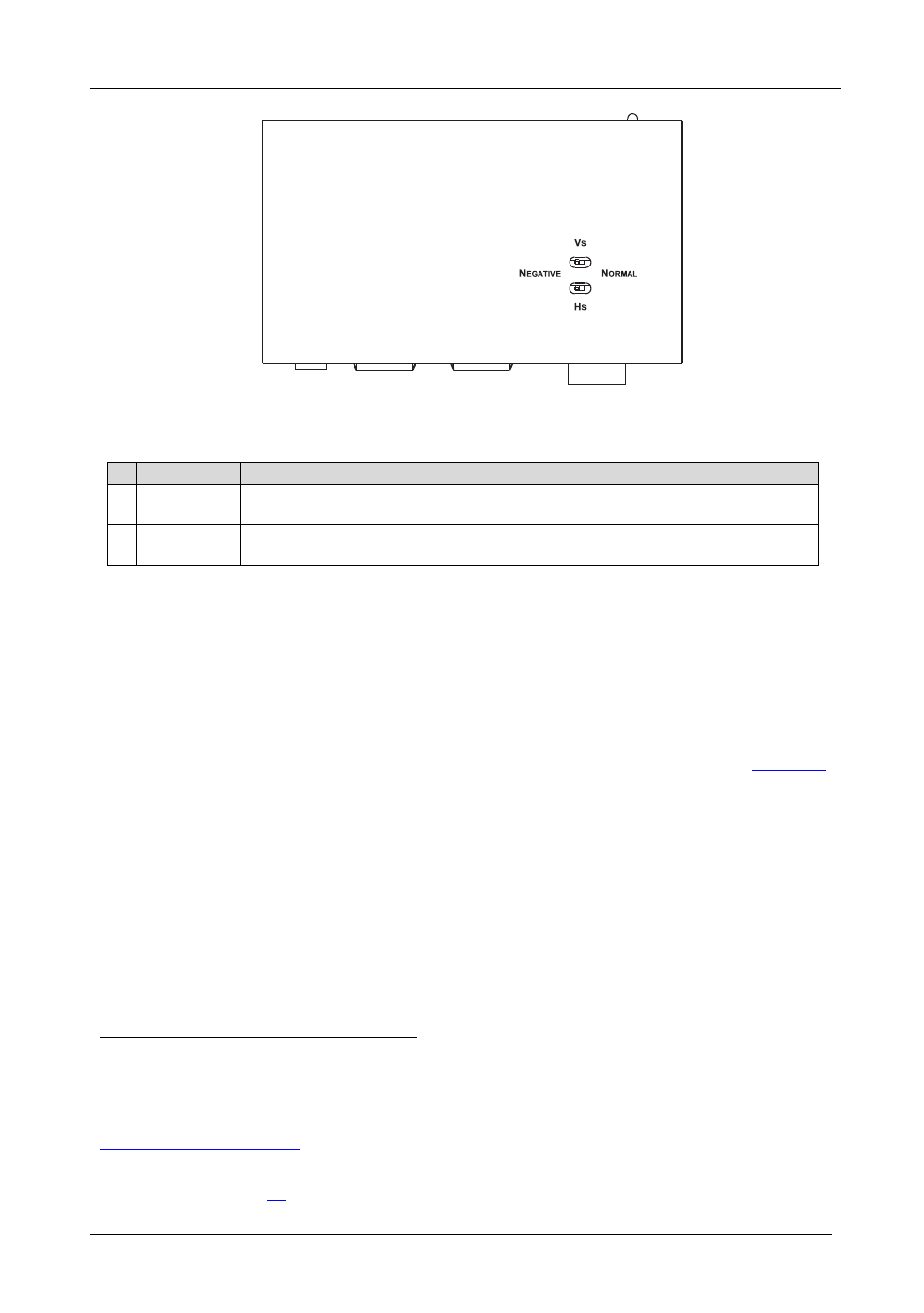

Figure 4: TP-112HD (Underside Panel)

Table 2: TP-112HD (Underside Panel) Features

#

Feature

Function

1

VS Switch

Slide the switch to the left

1

to change the VS polarity to NEGATIVE polarity

2

; slide

the switch to the right (to NORMAL) to retain the polarity

2

HS

Switch

Slide the switch to the left

1

to change the HS polarity to NEGATIVE polarity

2

; slide

the switch to the right (to NORMAL) to retain the polarity

5

Configuring a 1:2 XGA/HD-to-Twisted Pair DA System

You can use the TP-112HD XGA/HD Line Transmitter – DA with two
TP-120 XGA Line Receiver units

3

to configure a 1:2 XGA/HD-to-Twisted

Pair DA system. This will let you transmit a computer graphics/HD signal to
two displays via long line CAT 5 UTP cabling.

To connect the TP-112HD to two TP-120 units, as the example in

Figure 5

illustrates, do the following:

1. On

the

TP-112HD, connect the XGA/HD source (for example, a

computer graphics/HD source) to the XGA/HD INPUT 15-pin HD
connector, and connect the line output RJ-45 connector

4

:

ƒ OUT 1 connector to the LINE IN RJ-45 connector on the first

TP-120

ƒ OUT 2 connector to the LINE IN RJ-45 connector on the second

TP-120

1 By default, both switches are set to the right

2 Downgoing syncs

3 Refer to the separate user manual: PT-110, PT-120, TP-120, WP-110, which can be downloaded from the Internet at:

http://www.kramerelectronics.com

4 Via UTP cabling (with a range of more than 300ft (>100m)). For details of how to wire a CAT 5 LINE IN/LINE OUT

RJ-45 connector, see section

5.1
