Your TP-112HD XGA/HD Line Transmitter – DA
5

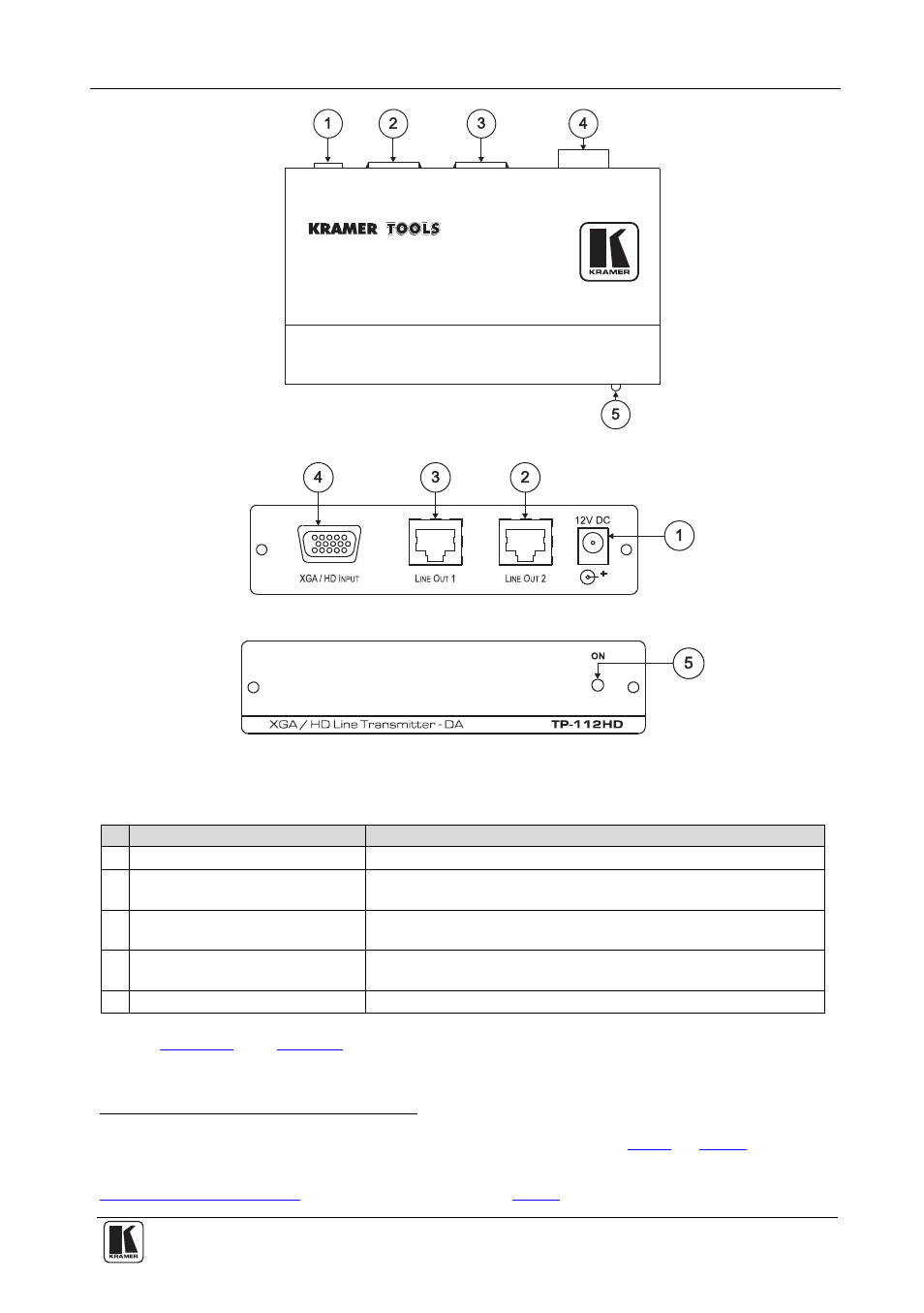

Figure 1: TP-112HD XGA/HD Line Transmitter – DA
Figure 2: TP-112HD (Top Side Panel)
Figure 3: TP-112HD (Lower Side Panel)
Table 1: TP-112HD XGA/HD Line Transmitter - DA Features
#
Feature
Function
1
12V DC
+12V DC connector for powering the unit
2
LINE OUT 2 RJ-45 Connector Connects
to
the LINE IN RJ-45 connector on the (second)
TP-120 XGA Line Receiver
3
LINE OUT 1 RJ-45 Connector Connects
to
the LINE IN RJ-45 connector on the (first) TP-120
XGA Line Receiver
4
XGA/HD INPUT 15-pin HD
Connector
Connect to the XGA source
5
ON LED
Illuminates when receiving power
and
define the TP-112HD underside panel:
1 Using a UTP CAT 5 cable with RJ-45 connectors at both ends (the PINOUT is defined in
Table 3
and
Figure 6
)
2 Refer to the separate user manual: PT-110, PT-120, TP-120, WP-110, which can be downloaded from the Internet at:
http://www.kramerelectronics.com
. Also, see the example illustrated in
Figure 5
