Connecting the Distributors

15

15

15

15

5.4

Connecting the VM-50V 1:5 Video Distributor

To connect the VM-50V, as shown in

Figure 9

, do the following

1

1. Connect the input video source (for example, a composite video player) to

the INPUT IN BNC connector.

:

2. If looping the input to another device, connect a video acceptor (for example

a monitor) to the INPUT LOOP BNC connector.

3. If the input loop is not used

, press IN the TERM pushbutton to add a 75Ω

termination to the line. If an input loop is used, release the TERM
pushbutton.

4. Connect the VIDEO OUT 1 to 5 BNC connectors to up to 5 acceptors

2

5. Connect the 12V DC power supply to the unit (not shown in the illustration)

and then to the mains electricity. Switch on the power.

(for

example, composite video recorders).

6. If needed, adjust the LEVEL and EQ controls on the underside of the unit

(see

Figure 4

).

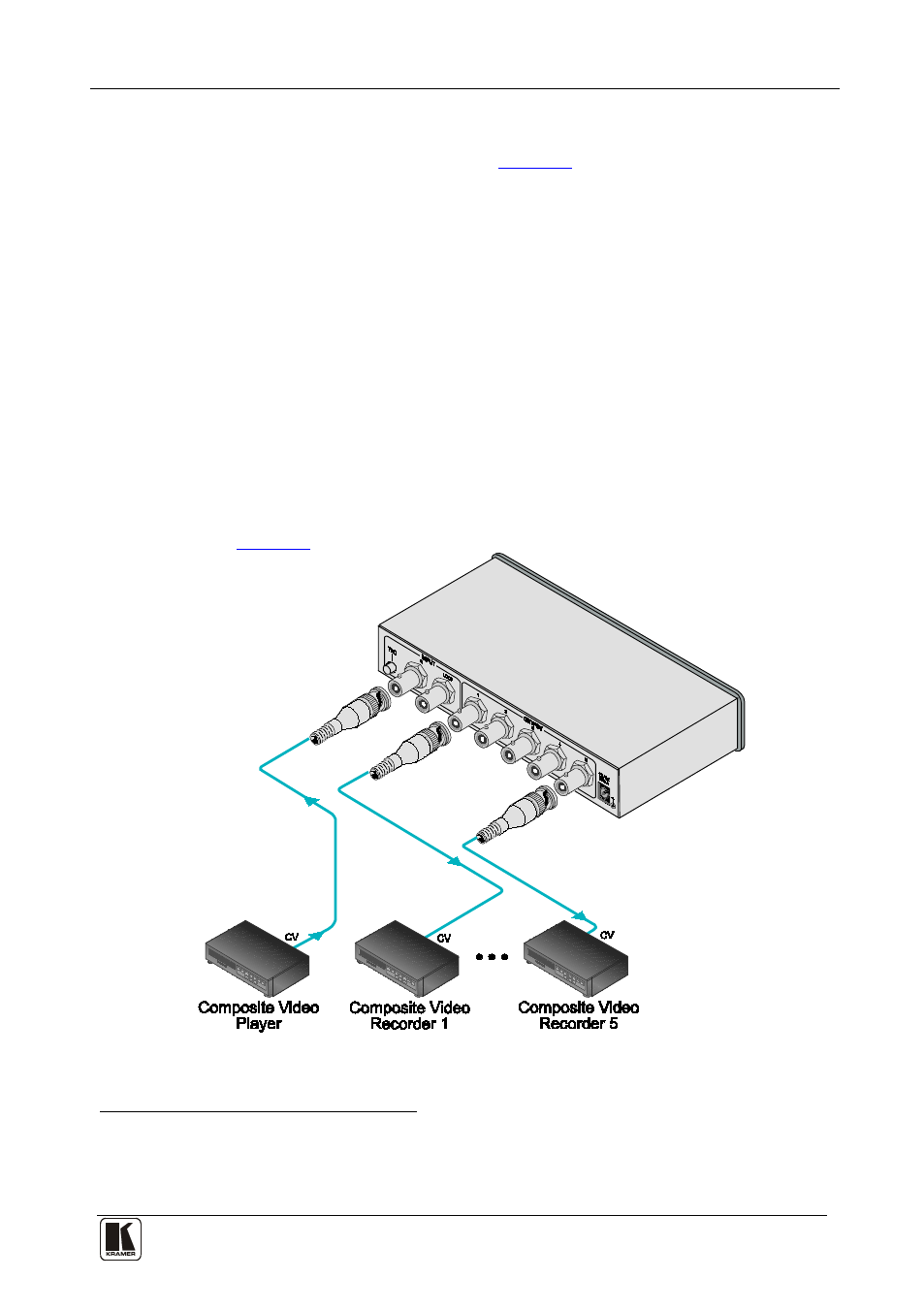

Figure 9: Connecting the VM-50V 1:5 Video Distributor

1 Switch OFF the power on each device before connecting it to your VM-50V. After connecting, switch on the VM-50V

power and then switch on the power on each device

2 You are not required to connect all the acceptors
