Connecting the Distributors
11
11
11
11
4.5 Your VM-50YC 1:5 s-Video Distributor
Figure 5 and Table 5 define the VM-50YC.

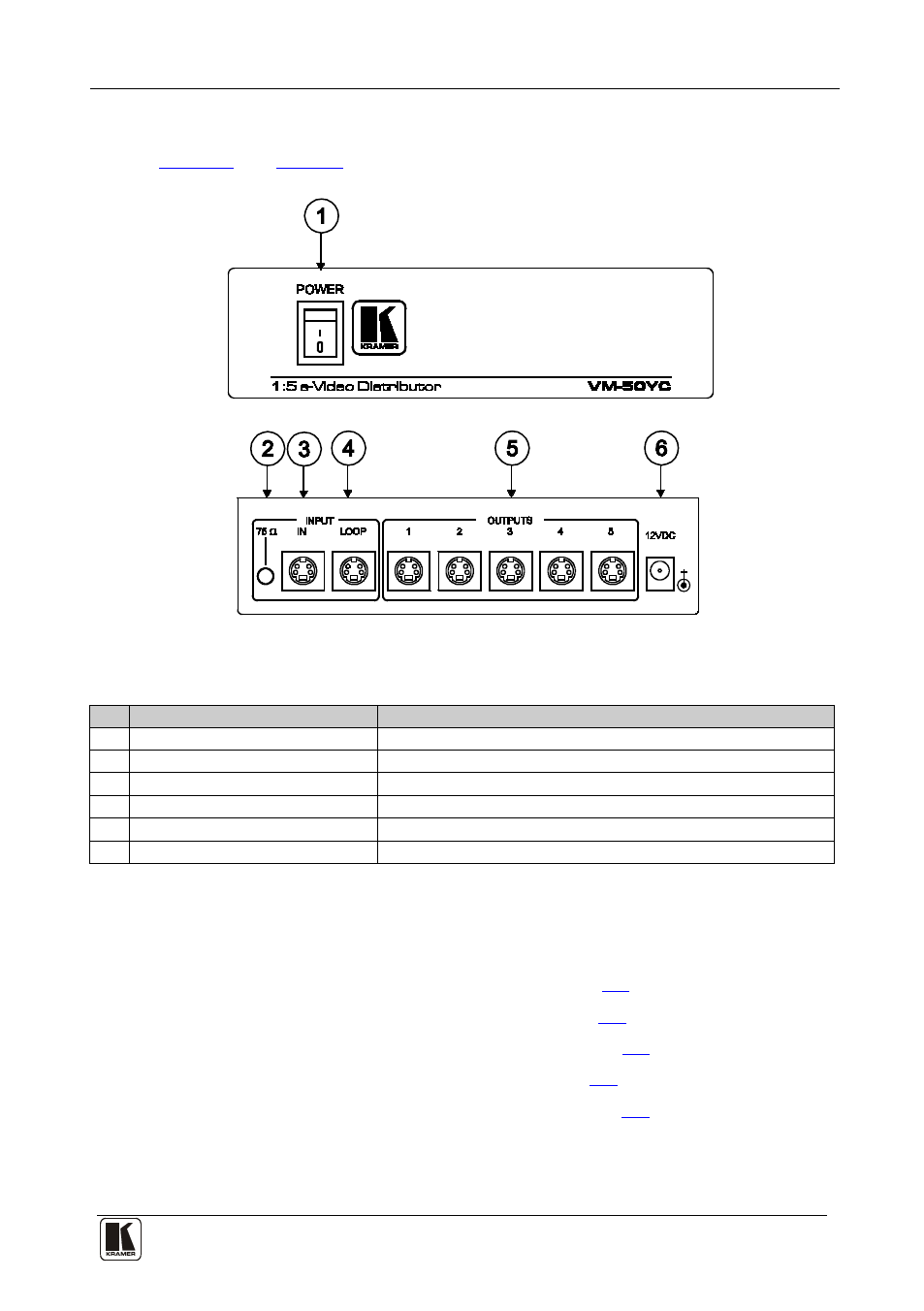

Figure 5: VM-50YC 1:5 s-Video Distributor
Table 5: VM-50YC 1:5 s-Video Distributor
# Feature Function
1 Illuminated Power Switch Illuminated switch for turning the unit ON or OFF
2 TERM Pushbutton Switch
Press IN for 75Ω input termination, leave OUT for no termination
3 INPUT IN s-Video Connector Connects to the s-Video source
4 INPUT LOOP s-Video Connector Connects to an additional monitor
5 OUTPUTS s-Video Connectors Connect to the s-Video acceptors (from 1 to 5)
6 12V DC Connector Connects to the 12V DC power supply
5 Connecting the Distributors
This section describes how to connect the:
• VM-2N Video Audio Distributor, see section
5.1
• VM-5S Video Audio Distributor, see section
5.2
• VM-50HN Headphone Distributor, see section
5.3
• VM-50V 1:5 Video Distributor, see section
5.4
• VM-50YC 1:5 s-Video Distributor, see section
5.5
