Connecting the VM-24HD 2 x 1:4 HD/SD – SDI DA
5
5 Connecting the VM-24HD 2 x 1:4 HD/SD – SDI DA
To connect the VM-24HD, as the example in Figure 2 illustrates, do the
following:
1. Connect one or two HD/SD SDI video sources (for example, HD/SD SDI
cameras) to the INPUT A and/or INPUT B BNC connectors.
2. On each OUTPUT (A and/or B), connect up to 1 four video OUTPUT BNC
connectors to the appropriate HD /SD SDI video acceptors (for example,
HD/SD SDI displays).
3. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity.

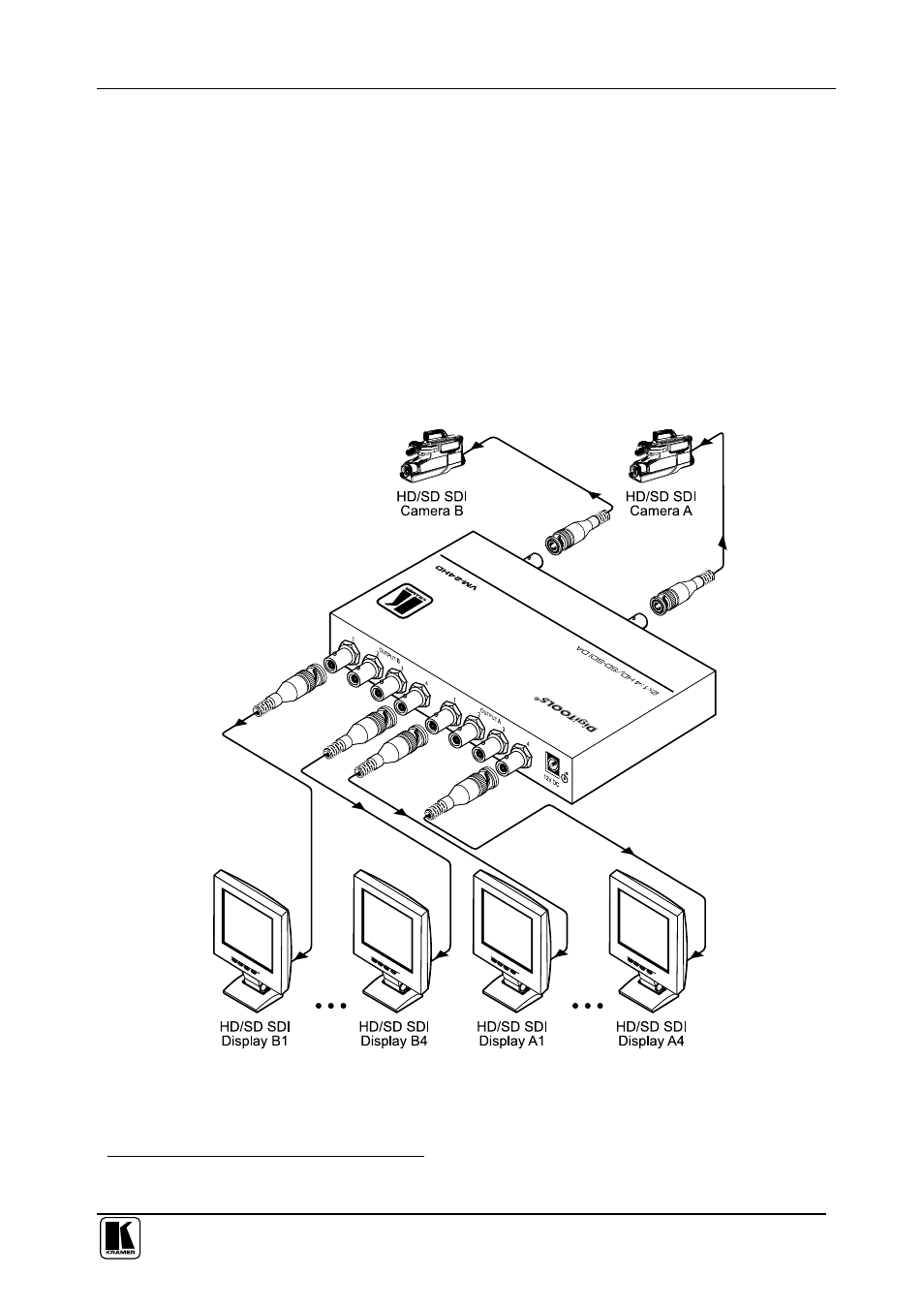

Figure 2: Connecting the VM-24HD 2 x 1:4 HD/SD – SDI DA
1 When four outputs are not required, connect only those that are required and leave the other output(s) unconnected
