Connecting the 1:2 Distribution Amplifier
6
5.1 Connecting the PT-102AN 1:2 Audio DA
To connect the PT-102AN 1:2 Audio DA, as the example in Figure 3
illustrates, connect the following 1 :
1. Connect an unbalanced stereo audio source (for example, an unbalanced
stereo audio player) to the IN 3.5mm mini connector.
2. Connect the two OUT 3.5mm mini connectors to up to two unbalanced
stereo audio acceptors, as follows:
Connect the OUT 1 connector to an unbalanced audio acceptor (for
example, an unbalanced stereo audio recorder)
Connect the OUT 2 connector to an unbalanced audio acceptor (for
example, a power amplifier with speakers)
3. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity.
4. Adjust the left and right gain level, if required.

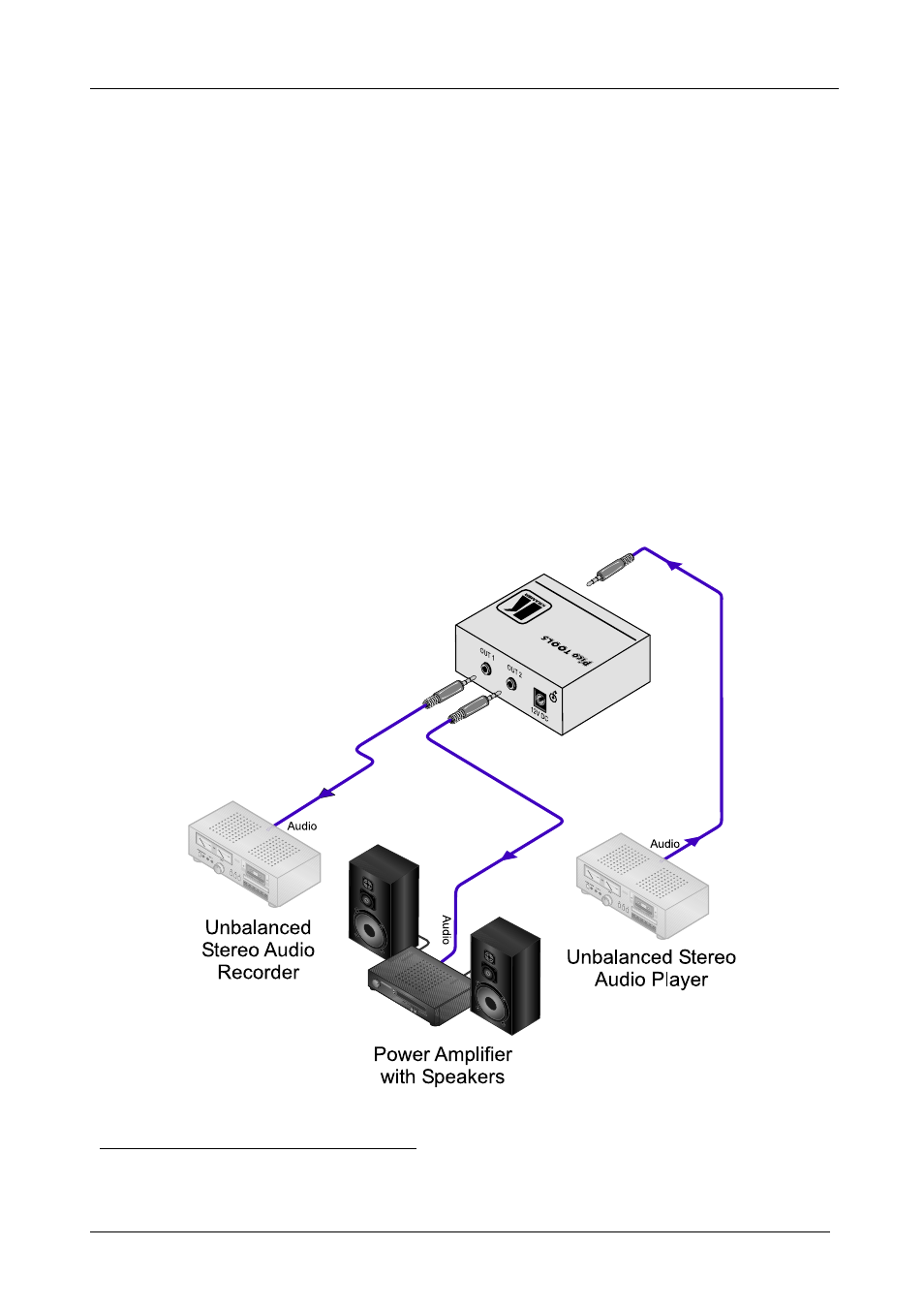

Figure 3: Connecting the PT-102AN 1:2 Audio DA
1 Switch OFF the power on each device before connecting it to your PT-102AN. After connecting your PT-102AN, switch on
its power and then switch on the power on each device
