Your 1:2 Distribution Amplifier
4
Caution – No operator-serviceable parts inside unit.
Warning – Use only the Kramer Electronics input power
wall adapter that is provided with this unit 1 .
Warning – Disconnect power and unplug unit from wall
before installing or removing device or servicing unit.
4 Your 1:2 Distribution Amplifier
This section defines the:
PT-102AN, see section 4.1
PT-102SN, see section 4.2
4.1 Your PT-102AN 1:2 Audio DA

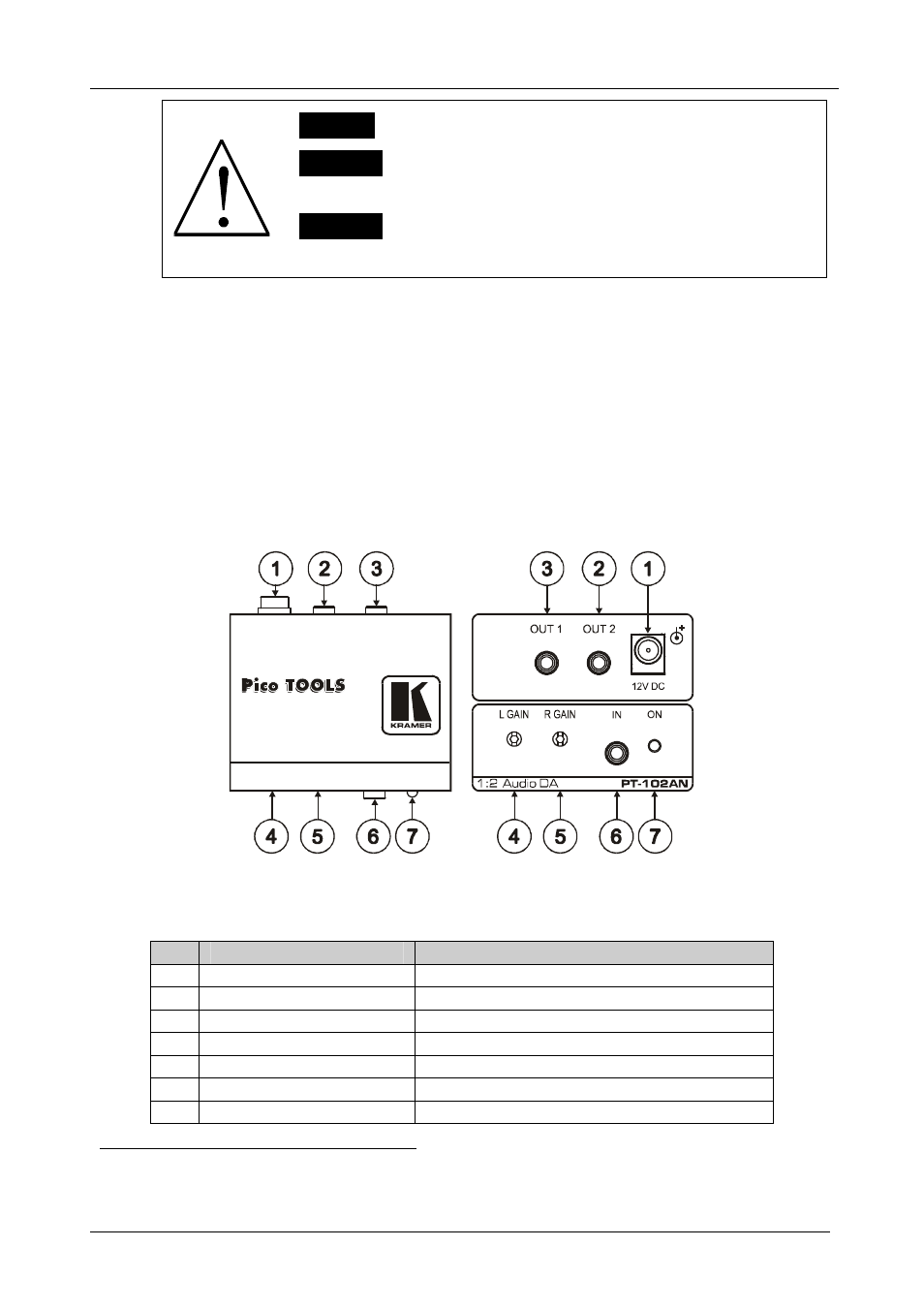

Figure 1 and Table 1 define the PT-102AN 1:2 Audio DA:
Figure 1: PT-102AN 1:2 Audio DA
Table 1: Features and Functions of the PT-102AN 1:2 Audio DA
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 OUT 2 3.5mm Mini Connector Connects to stereo audio acceptor 2
3 OUT 1 3.5mm Mini Connector Connects to stereo audio acceptor 1
4 L GAIN Trimmer Adjusts 2 the output level of the left audio channel
5 R GAIN Trimmer Adjusts 2 the output level of the right audio channel
6 IN 3.5mm Mini Connector Connects to the stereo audio source
7 ON LED Illuminates when receiving power
1 For example: model number AD2512C, part number 2535-000251
2 Insert a screwdriver into the hole and carefully rotate it, to trim the level
