Connecting the 1:2 Distribution Amplifier
5
4.2 Your PT-102SN 1:2 s-Video DA
Figure 2 and Table 2 define the PT-102SN 1:2 s-Video DA:

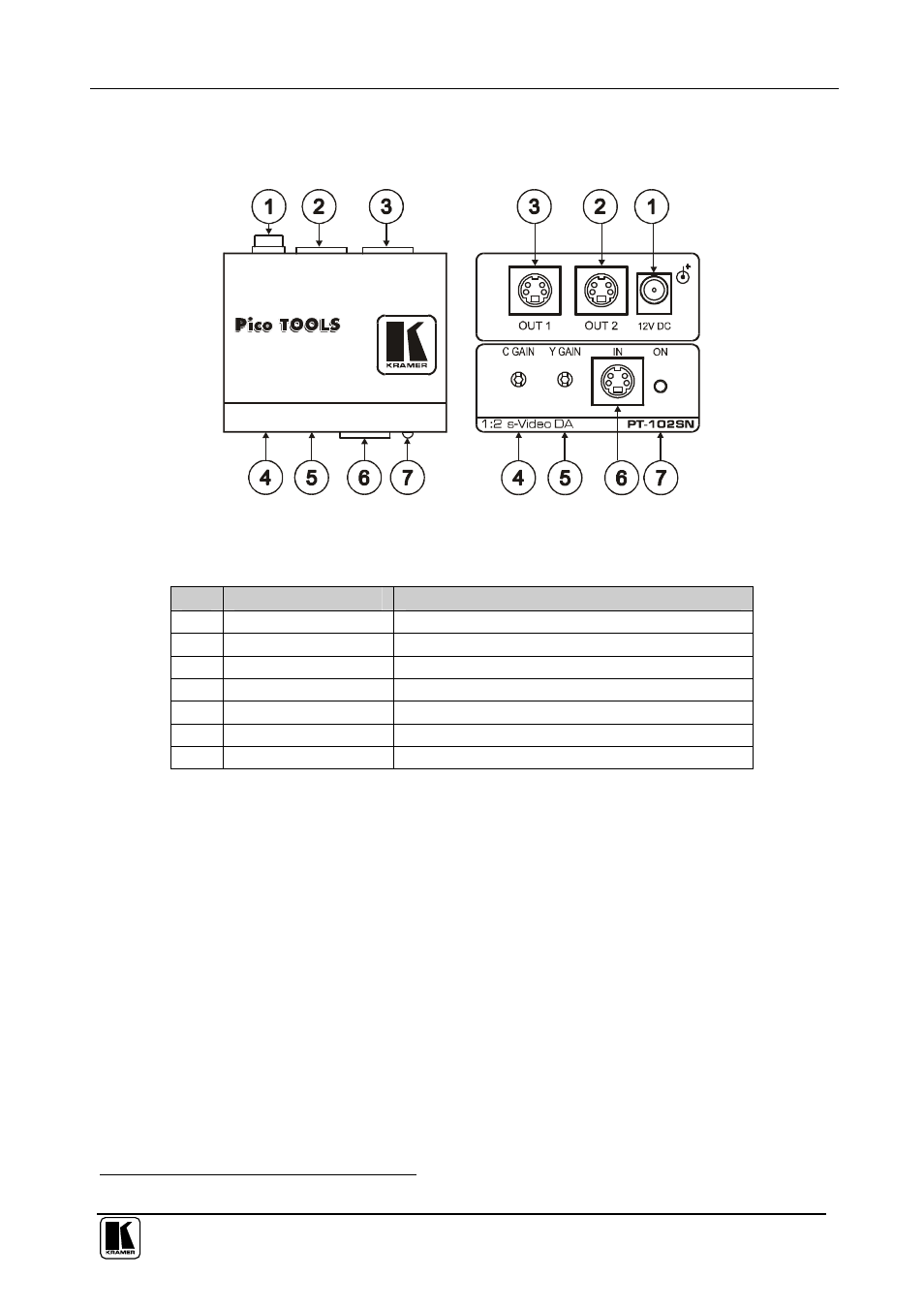

Figure 2: PT-102SN 1:2 s-Video DA
Table 2: Features and Functions of the PT-102SN 1:2 s-Video DA
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 OUT 2 4-pin Connector Connects to s-Video acceptor 2
3 OUT 1 4-pin Connector Connects to s-Video acceptor 1
4 C GAIN Trimmer Adjusts 1 the chroma (chrominance) output level
5 Y GAIN Trimmer Adjusts 1 the luma (luminance) output level
6 IN 4-pin Connector Connects to the s-Video source
7 ON LED Illuminates when receiving power
5 Connecting the 1:2 Distribution Amplifier
This section describes how to connect:
The PT-102AN, see section 5.1
The PT-102SN, see section 5.2
Additional inputs or outputs, see section 5.3
1 Insert a screwdriver into the hole and carefully rotate it, to trim the level
