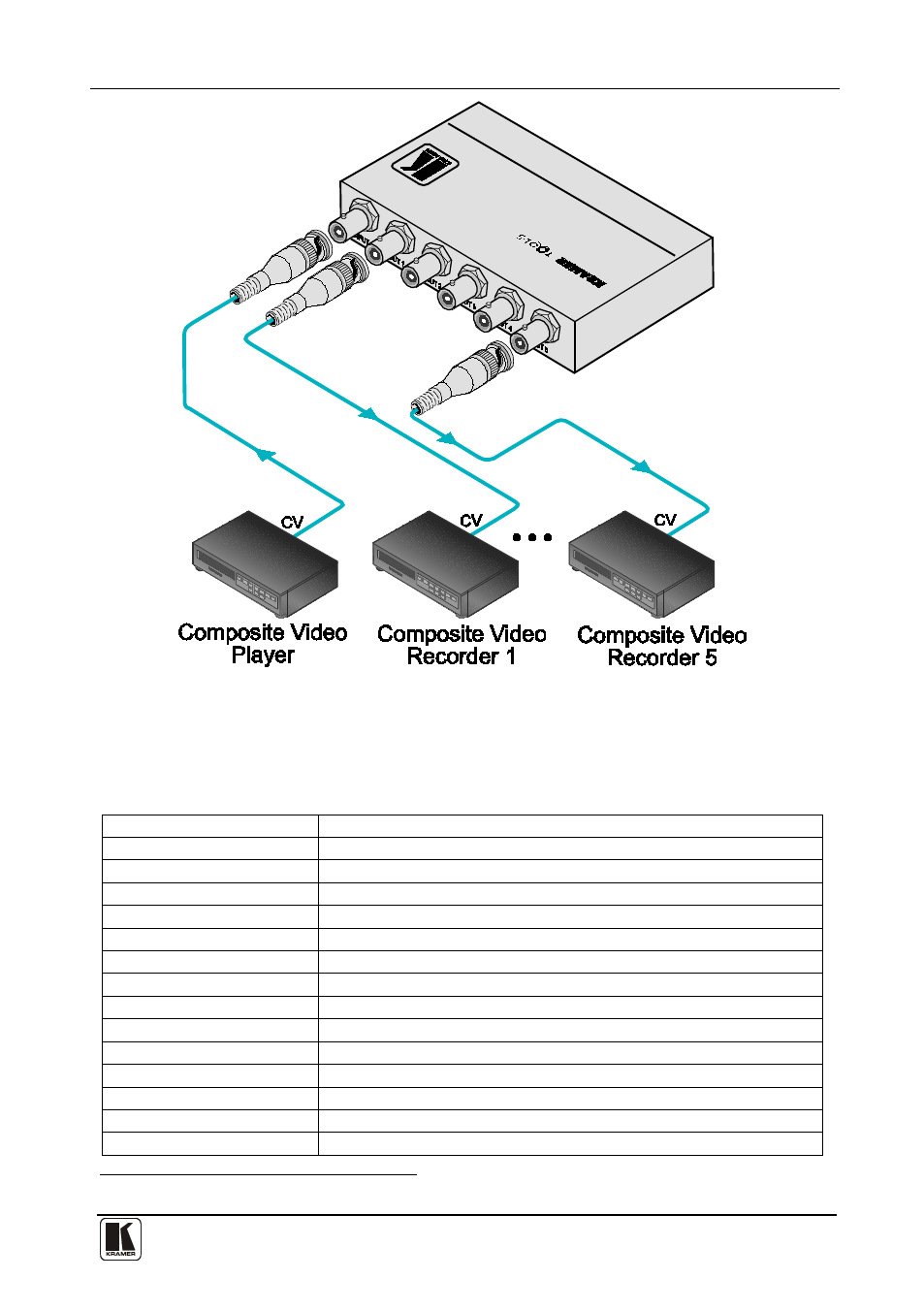

Figure 14: Connecting the 105VB 1:5 High Resolution Video DA
9.2 Technical Specifications
Table 14 includes the technical specifications
Table 14: Technical Specifications of the 105VB 1:5 High Resolution Video DA
INPUT:
1 video, 1Vpp/75 Ω on a BNC connector.
OUTPUTS:
5 video, 1Vpp/75 Ω on BNC connectors.
MAX. VIDEO OUTPUT:
2Vpp.
VIDEO BANDWIDTH (-3dB):
400MHz.
DIFF. GAIN:
0.1%.
DIFF. PHASE:
0.1 Deg.
K-FACTOR:
<0.05%
S/N RATIO:
80dB
CONTROL:
Up to +6dB
COUPLING:
AC
POWER SOURCE:
12V DC, 100mA
DIMENSIONS:
12cm x 7.5cm x 2.5cm (4.7” x 2.95” x 0.98”) W, D, H
WEIGHT:
0.3kg (0.6lbs) approx.
ACCESSORIES:
Power supply, mounting bracket
OPTIONS:
RK-3T 19” rack adapter
1 Specifications are subject to change without notice
