The 105VB, 1:5 High Resolution Video DA
20

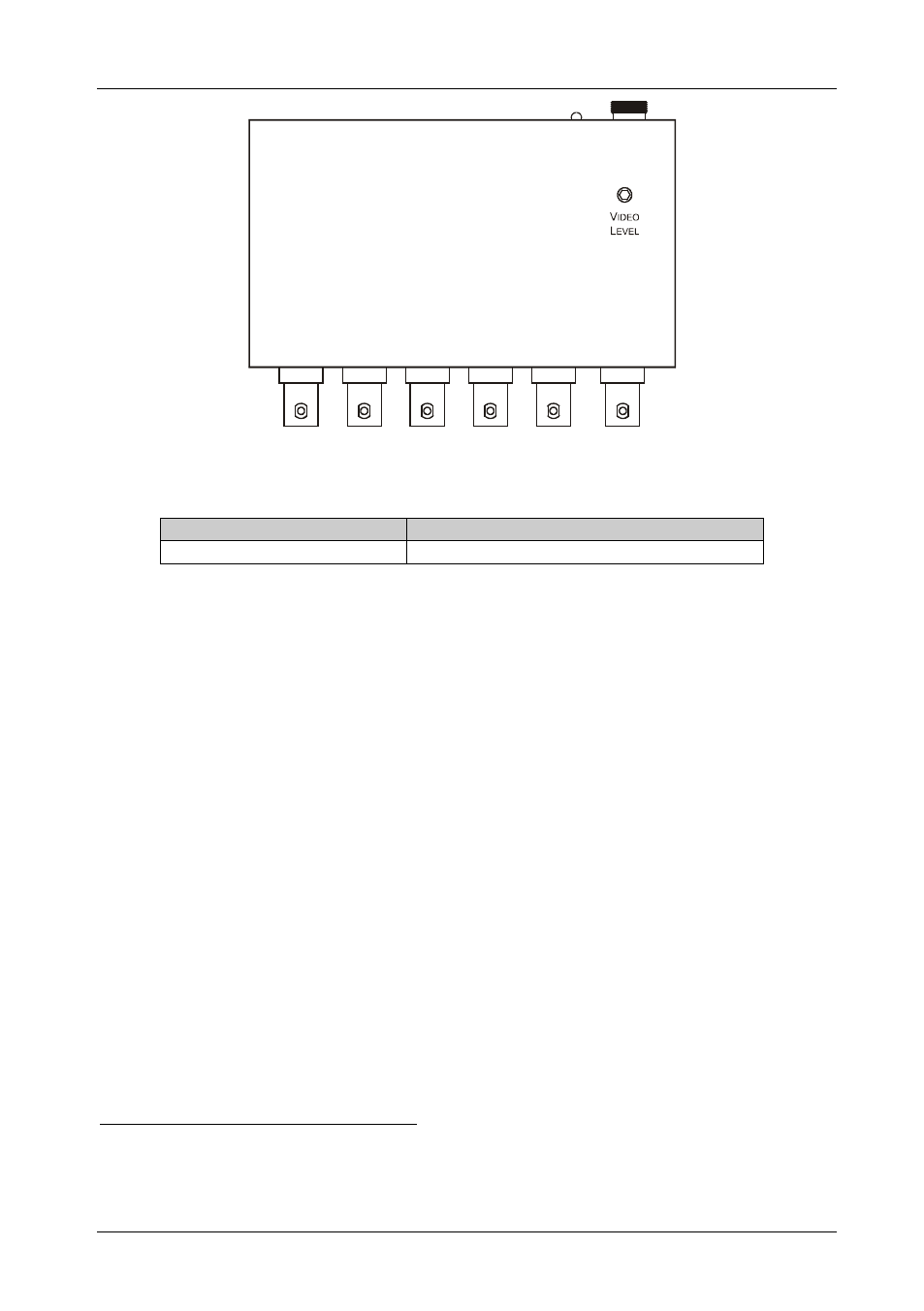

Figure 13: 105VB 1:5 High Resolution Video DA Rear Panel
Table 13: Features and Functions of the 105VB Rear Panel
Feature Function
VIDEO LEVEL Trimmer 1 Controls the gain of the video outputs
9.1 Connecting the 105VB 1:5 High Resolution Video DA
To connect your 105VB 1:5 High Resolution Video DA, as illustrated in
Figure 14, do the following:
1. Connect a composite video source (for example, a composite video player) to
the INPUT BNC connector.
2. Connect the OUT BNC connectors to up to 5 composite video acceptors (for
example, composite video recorders) 2
3. Connect the power adapter to the power socket, and connect the adapter to the
mains electricity.
.
4. If required, adjust the underside VIDEO LEVEL trimmer 3
1 Insert a screwdriver into the small hole and carefully rotate it to adjust the audio level
.
2 You do not have to connect all the outputs
3 Insert a screwdriver into the small hole and carefully rotate it to adjust the level
