9 The 105VB, 1:5 High Resolution Video DA
The 105VB is a high performance distribution amplifier for composite video
signals. It accepts one input, provides correct buffering and isolation and
distributes the signal to five identical outputs.
In particular, the 105VB:
• Has a bandwidth of 400MHz to ensure transparent operation even in the
most critical applications
• Has BNC connectors
• Includes video level (Gain) control
• Is 12V DC fed
Figure 12 and Table 12 define the 105VB 1:5 High Resolution Video DA

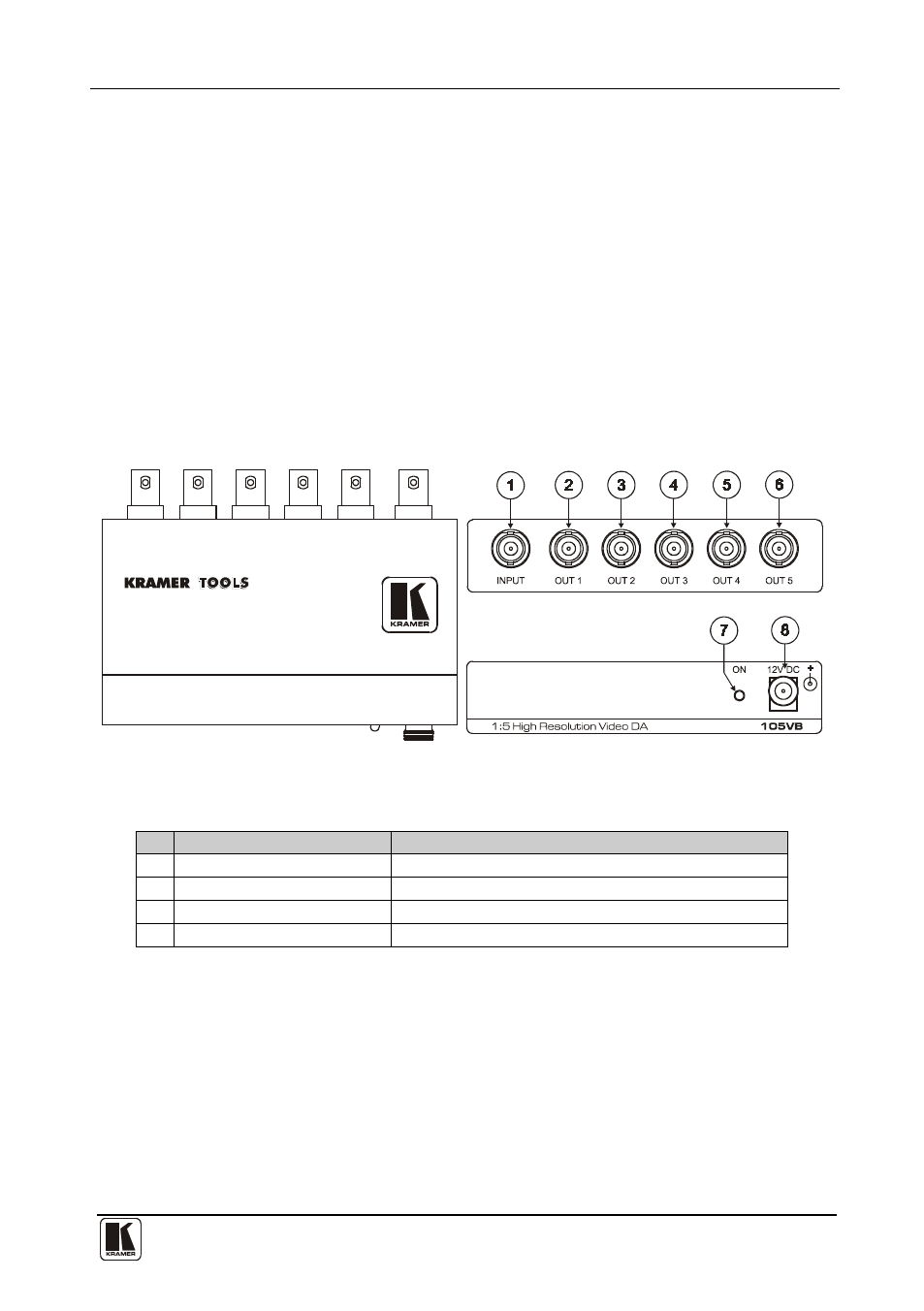

Figure 12: 105VB 1:5 High Resolution Video DA
Table 12: Features and Functions of the 105VB 1:5 High Resolution Video DA
# Feature Function
1 INPUT BNC Connector Connects to the composite video source
2 OUT BNC Connectors Connect to the composite video acceptors (from 1 to 5)
3 ON LED Illuminates when the machine is powered
4 12V DC +12V DC connector for powering the unit
