Section 2 – Cabinet Conversion
gvrSX™ Conversion System Manual
Page 8 of 48
040-0050-01
Rev. A 10/29/2004

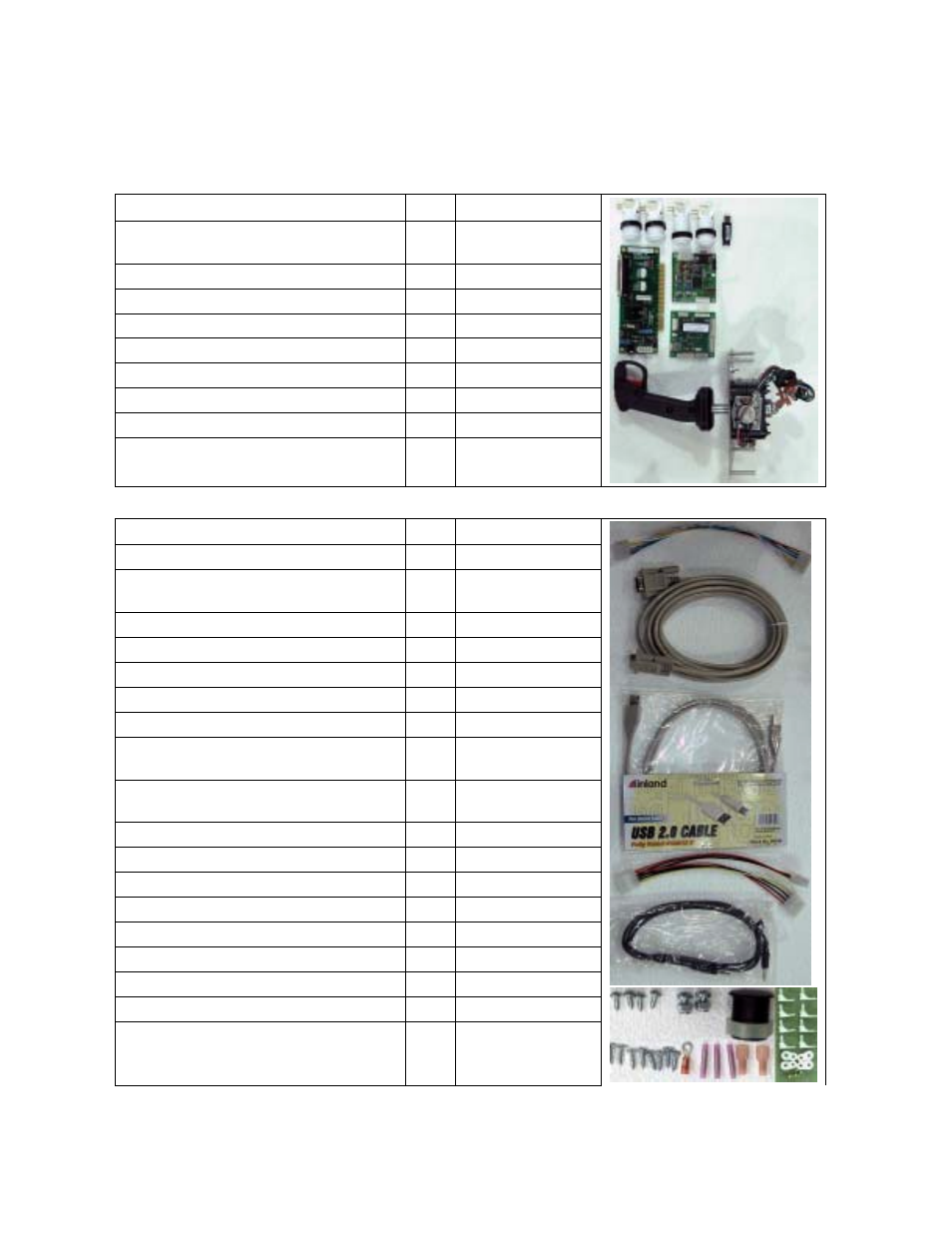

Conversion Kit Contents and Replacement Parts List
Table 1. Conversion Kit Components
Electronic Components
Description Qty Part Number
System Computer (Not Shown) 1
DFI-CS35-TL-
GVRSX
UGCI board, HAPP Flying 1 95-0800-20
Joystick, Pup, Analog with Atari Grips 1 95-0923-GVR
White Pushbutton W/ Micro Switch 4 47-9150-02
JAMMA Conversion Board 1 990-0007-01
Universal Video Converter (UVC) Card 1 96-0583-00
DONGLE, USB, KQRTG 1 USB-KQRTG
PS2-Keyboard (Not Shown) 1 PS2-KEYBOARD
7-Outlet Power Strip with Surge
Protector (Not Shown) 1 49-0963-40
Cables & Miscellaneous Hardware
Description Qty Part Number
Cable, UVC to JAMMA 1 115-0018-01
Cable, UGCI Coin & Op to JVC Coin &
Op (Not Shown) 1 115-0062-01
Cable, VGA, 6 foot, M/M 1 V-0606
Cable, USB 2 USB-AB06MM
Cable, PC Y-Power 1 PGAK-FLT-3500-08
Cable, Coin Harness Assy (Not Shown) 1 95-0002-014
Cable, 3.5mm Audio, 6Ft 1 96-0539-00
Standoff, 3" tall .156 hole Screw-Down
(For UVC and Jamma Board) 8 LCBS-L-5-01
PCB Mounting Feet Set of 4
(for UGCI Board) 1 49-1019-00
Button Plug (Black) 1 52-6212-00
DFI Computer Mount (Not Shown) 2 V2-0183-00
#10 x 1/2" Course-Thread Wood Screw 4 10N50PPAZZ
1/4-20 x 3/4" Phillips Pan Screw 2 25C37PPMZZ
6-32 X 1/2 Pan-Head Wood Screw 8 4600-0032
1/4-20 Nylon Lock Hex Nut 2 4600-0033
18AWG Butt Connector 3 PGAK-2A0701
#8 Hole 18 AWG Ground Ring 1 PGAK-5A890
18AWG .250 Spade 2 PGAK-KTN50
