Configuration Module (ACC-02) Page 5 Version 1.00
8/31/2007
1 Features
• Dipswitches are used for simplicity in changing the following settings:
o
Step resolution from 2x to 256x microstepping
o
Run Current
o
Hold Current choices of 0%, 25%, 50%, and 100% of the run current
o
Disable Power choice for holding in place or no power when disabling
the unit
o
Step Sensing choice of reading from the rising or falling edge of each
step pulse input
o
Direction Sensing choice of reading from the rising or falling edge of
the pulse for changing direction of rotation
o
Damping modes to receive smoother motion
• Simple connection with provided ribbon cable
• Easy to use button for saving settings to unit
• Easily enables the testing of different run and hold currents, and damping
modes
• Choices of damping modes allows for the smoothest operation
• Allows for compatibility of PLC’s, micrologix, and other modules that output
step pulses by allowing for a choice of reading the pulses on the rising or
falling edge of the step.

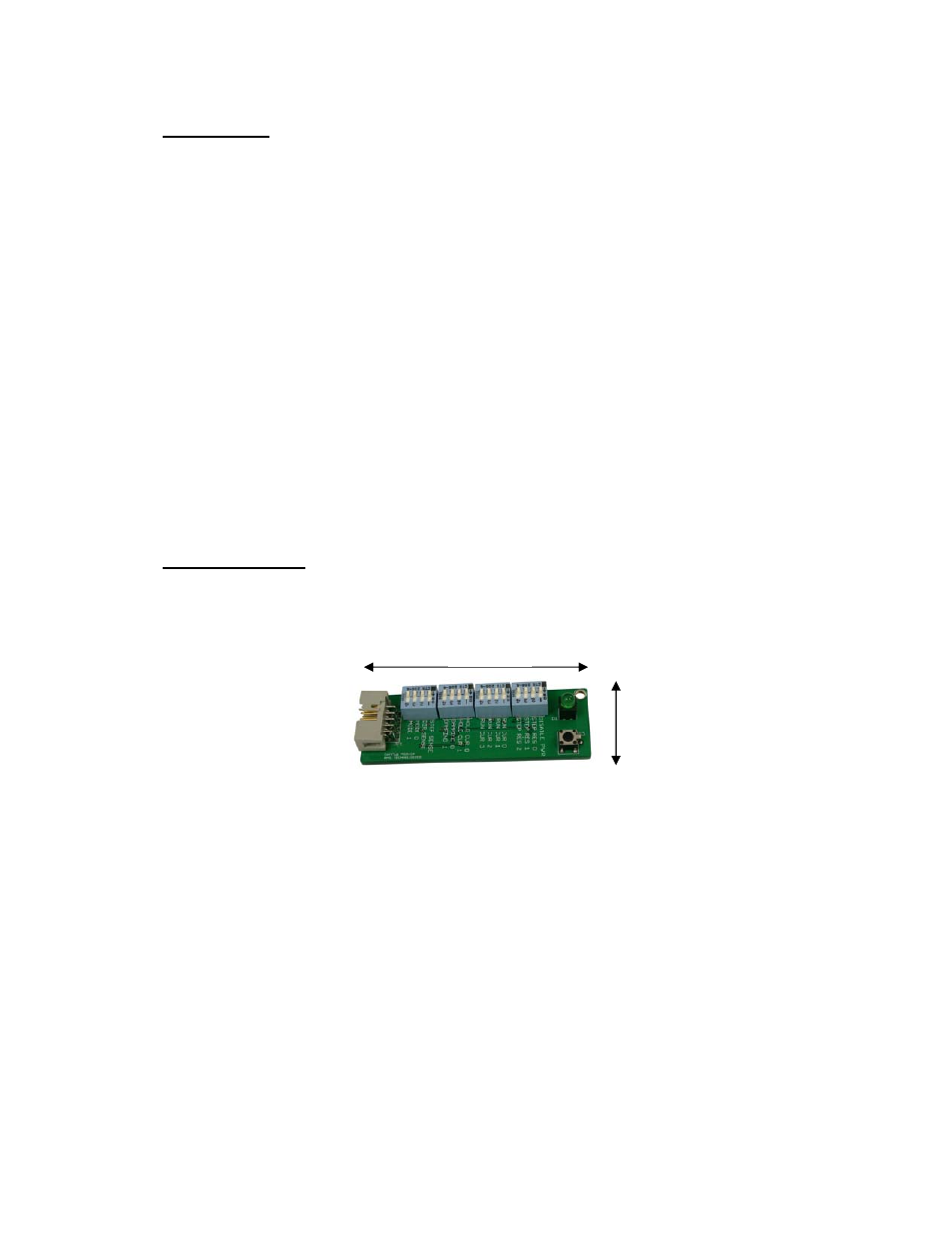

2 Dimensions
The configuration board is 1.10” wide and 3.10” long. The overall height of the
device is 0.45”.
3.10”
1.10”
