Comfort-Aire HCG**V1E Series - Manual (Page 17)

17
FIGURES & TABLES

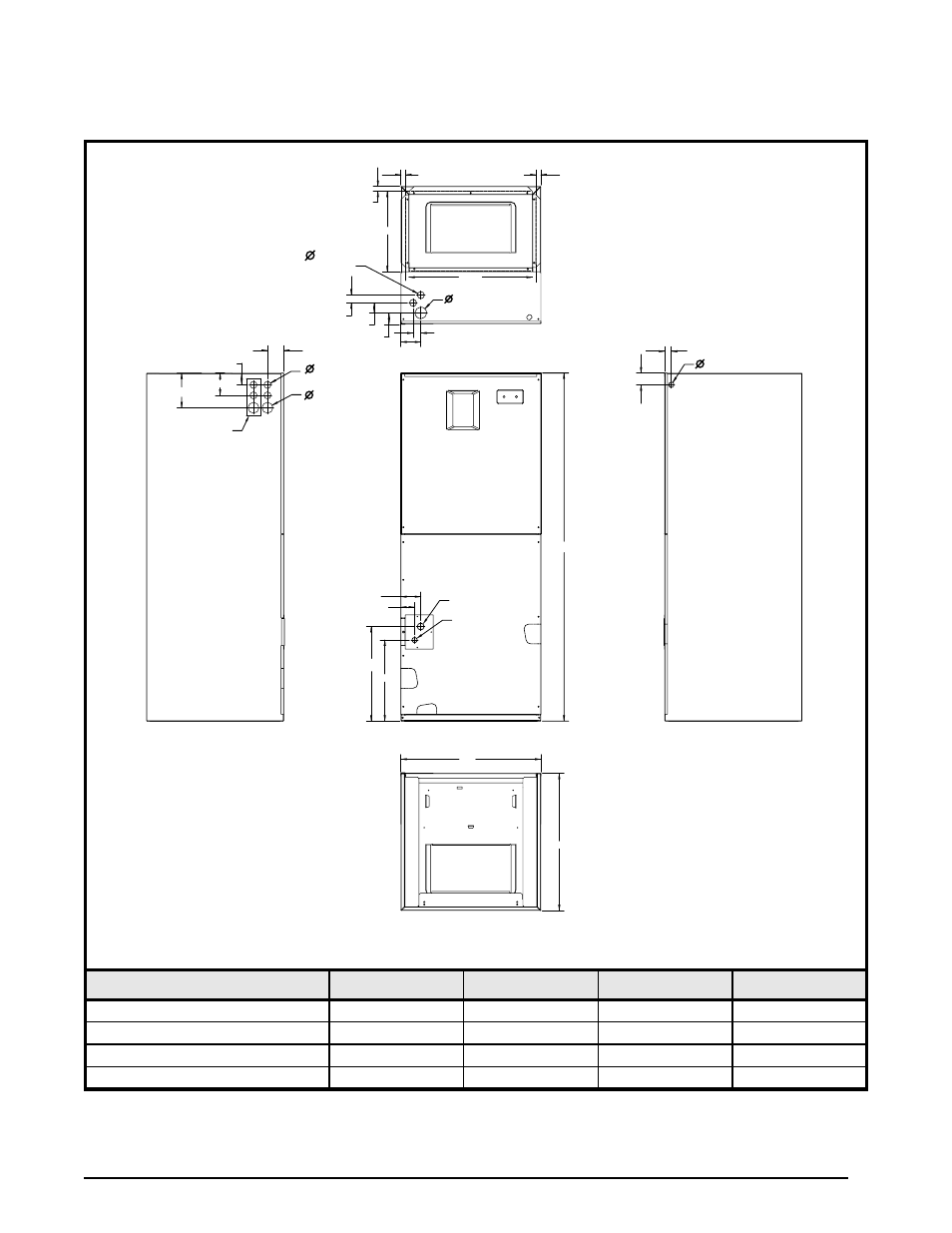

Figure 12. HMG**F1E, HMG**X1E & HCG**V1E Series Physical Dimensions
3/4”
3/4”
3/4”
13”
1 7/8" K.O.
11/8” K.O.
(typ.)
11/4”
15/8”
17/8”
11/4”
3 1/4”
2 5/8”
11/8” K.O.
(typ.)
13/4” K.O.
(typ.)
1 7/8”
3 5/8”
5 5/8”
DETAIL “D”
3 1/4”
2 1/4”
15 1/4”
13”
SUCTION
LIQUID
“W”
1 1/8”
1 7/8”
7/8" K.O.
“H”
22"
“A”
FURNACE SIZE (BTUH) H W A Detail D
24K & 30K 43-5/16 14-3/16 12-3/4 No
36K (HMG**F1E Only) 43-5/16 19-11/16 18-1/4 No
36K & 42K 49-5/16 19-11/16 18-1/4 No
48K & 60K 55-15/16 22-7/16 21 Yes
