Ariens Sno-Thro 920001- ST624E - Manual (Page 9)

GB - 9
1. Attachment Clutch Lever
2. Speed Selector
3. Traction Drive Clutch Lever
4. Chute Crank
5. Muffler Guard
6. Discharge Chute Deflector
7. Discharge Chute
8. Impeller
9. Auger
10. Scraper Blade
11. Auger Gearcase
12. Clean-out Tool
13. Oil Fill and Dipstick
14. Gas Tank and Cap
15. Starter Button
16. Electric Starter
17. Recoil Starter Handle
18. Primer Bulb
19. Throttle (Engine Stop)
20. Ignition Switch (Push /Pull)
21. Choke
22. Axle Lock Pin
23. Runner(s)
24. Belt Cover
25. Fuel Shut-off Valve
26. Handlebar

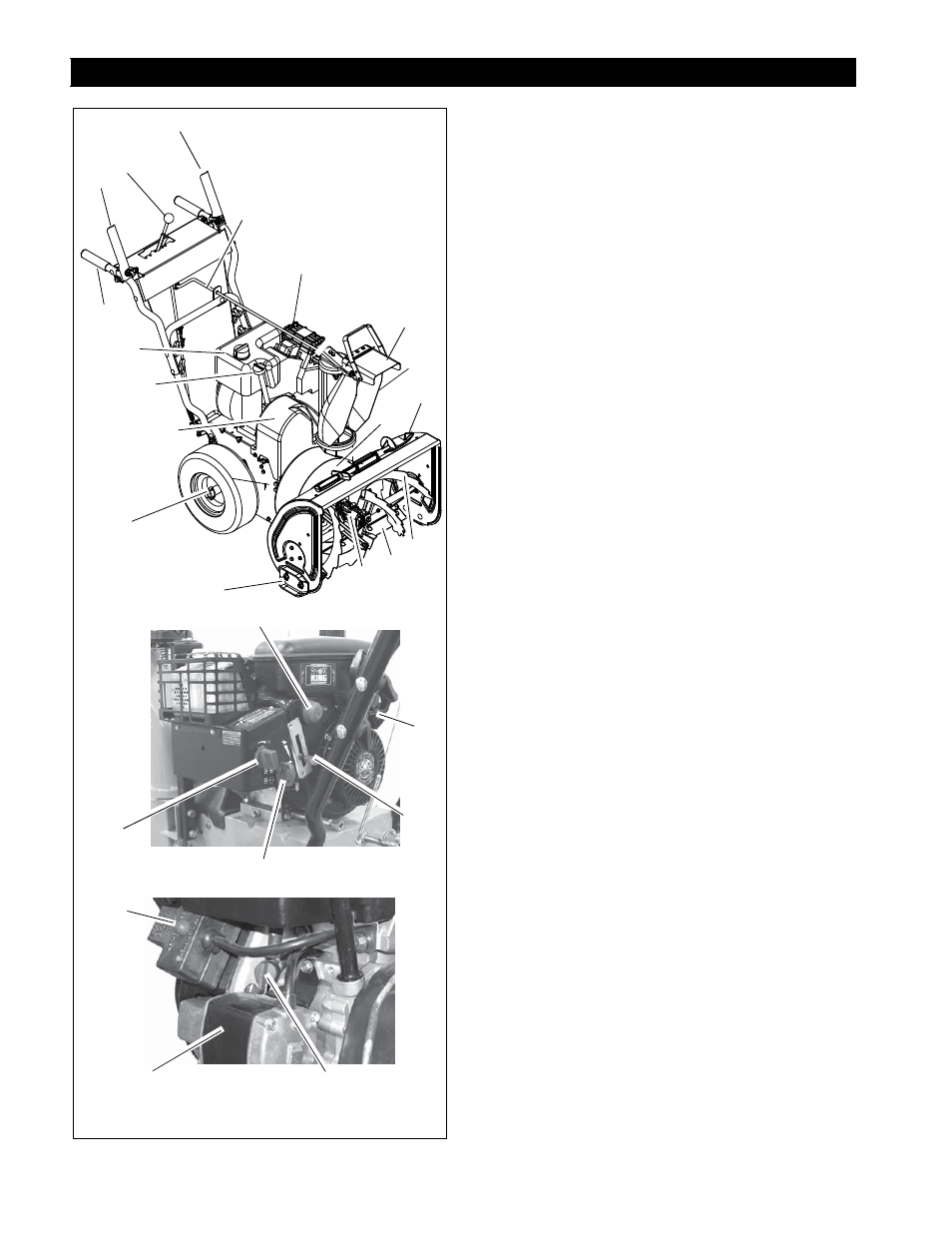

CONTROLS AND FEATURES
Figure 7
1
2
4
3
5
6
8
9
10
11
13
25
16
18
20
17
19
21
14
22
24
7
23
OS7077
12
15
26
