97-06: Find the existing mounting holes in the roll bar and punch holes through
padding. Fasten the sound bar with the T30 torx head screws and lock washer.
Connecting the wire harness
(step 1)

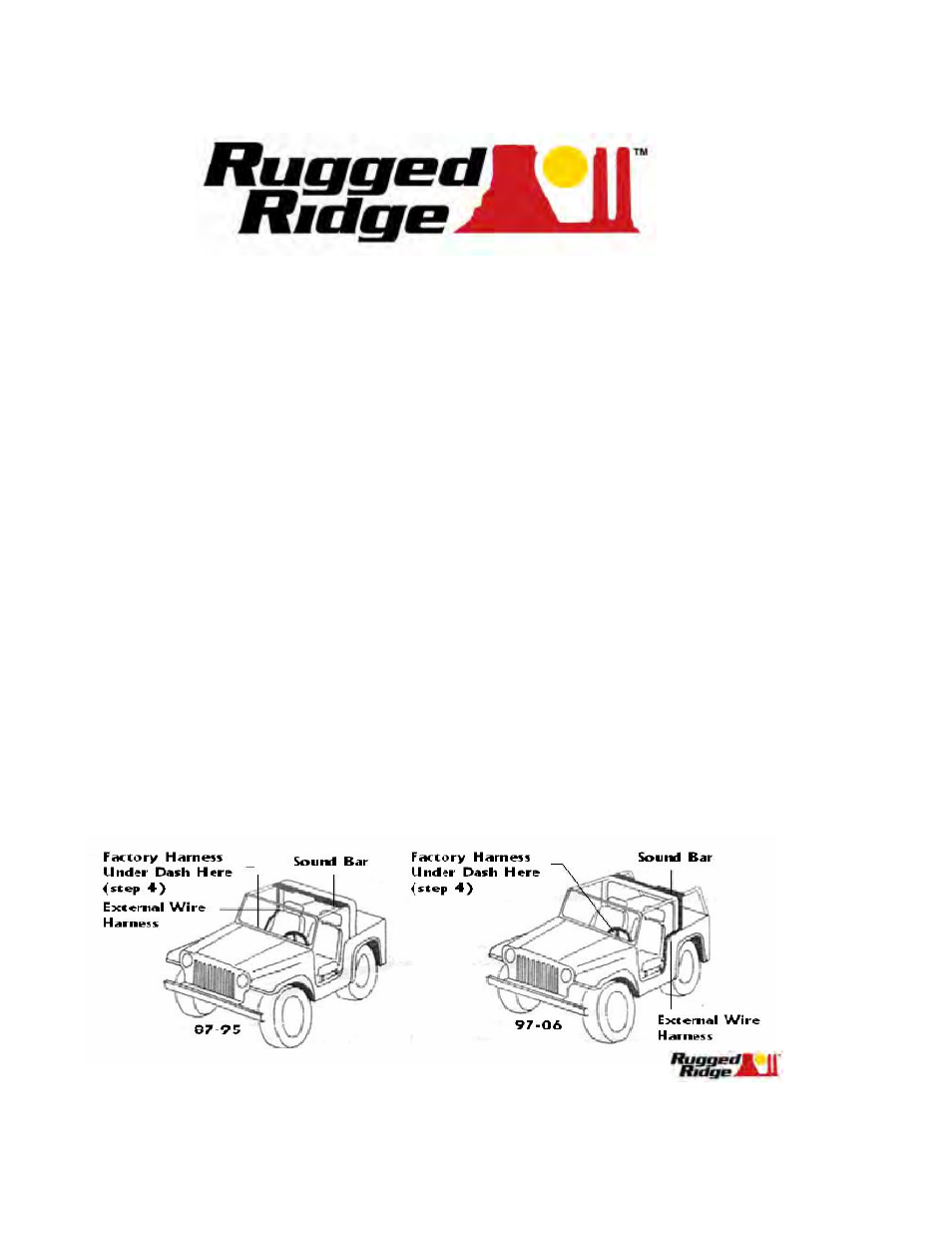

Put the wire harness down the roll bar under the padding and route along the floor under the
vehicle carpet. Connect coupling at sound bar with supplied connector.
(step 2)
Find the factory radio harness under the dash board and identify the left and right speaker wires.
(step 3)
Supplied Wire Harness.
Driver Side Speaker Orange = (+) White = ( - )
Passenger Side Speaker Green = (+) Yellow = ( - )
Red = 12volt in
Green = Remote light in
Black = Ground for light
External Harness for Vehicle Year Break.
87-95:
Drivers Side:
Blue/White = (+) Blue = (- )
Passenger Side: Brown/White = (+) Brown = ( - )
97-06:
Drivers Side:
Brown/White = (+) Brown = ( - )
Passenger Side: Blue/White = (+) Blue = ( - )
92 -:
Drivers Side:
Brown/Yellow = (+) Brown/Blue = ( - )
Passenger Side: Bark Blue/White = (+) Dark Blue = ( - )
