Overhead Sound Bar
Installation Instructions
2 and 6 speaker system
Parts List
(1) Sound Bar
(2) Long mounting brackets
(2) Short mounting brackets
(4) x 1/4" - 20 x 5/8 screws
(4) x T30 x 3/4" Torx head sheet
metal screws
(4) x 1/4" Flat washers
(4) x 1/4" Lock washers Tools Required: 3/16" drill bit
(1) wire harness assemble Drill
Phillips head screw driver
T30 Torx head screw driver
Installation Instructions
(step 1)

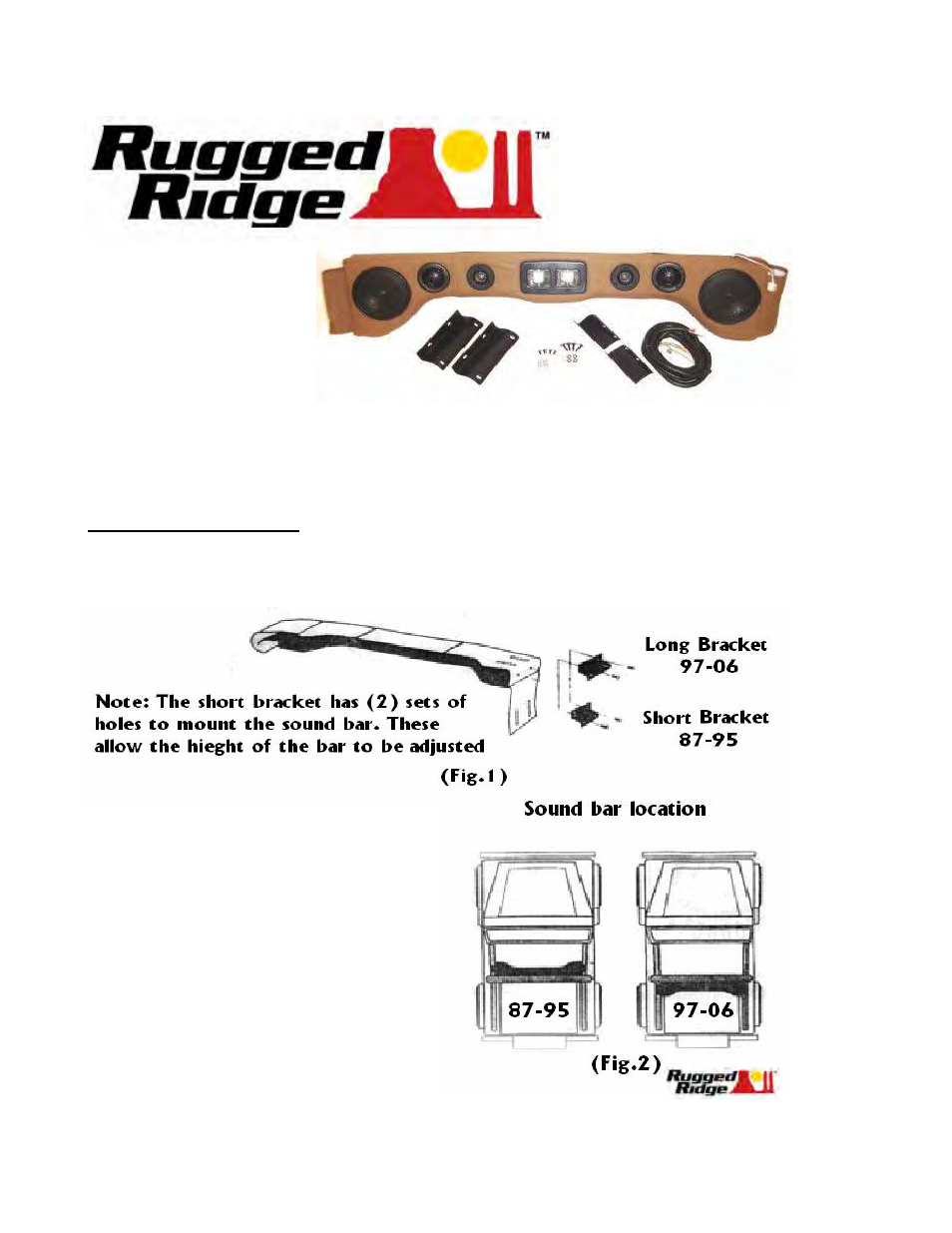

Secure the suitable mounting bracket for your year vehicle with 1/4" - 20 x 5/8" screw and
a lock washer as shown below. (Fig.1)
(step 2)
Place the sound bar on the vehicle as shown for
the correct year. (Fig.2)
87-95: With guide of the holes in the mounting
bracket, punch holes through the
roll bar and drill 3/16" pilot holes in the
roll bar. On some models there is at
least one existing hole in the roll bar
for mounting. Check before drilling.
Apply the T30 torx head screw and
flat washer to secure the sound bar.
