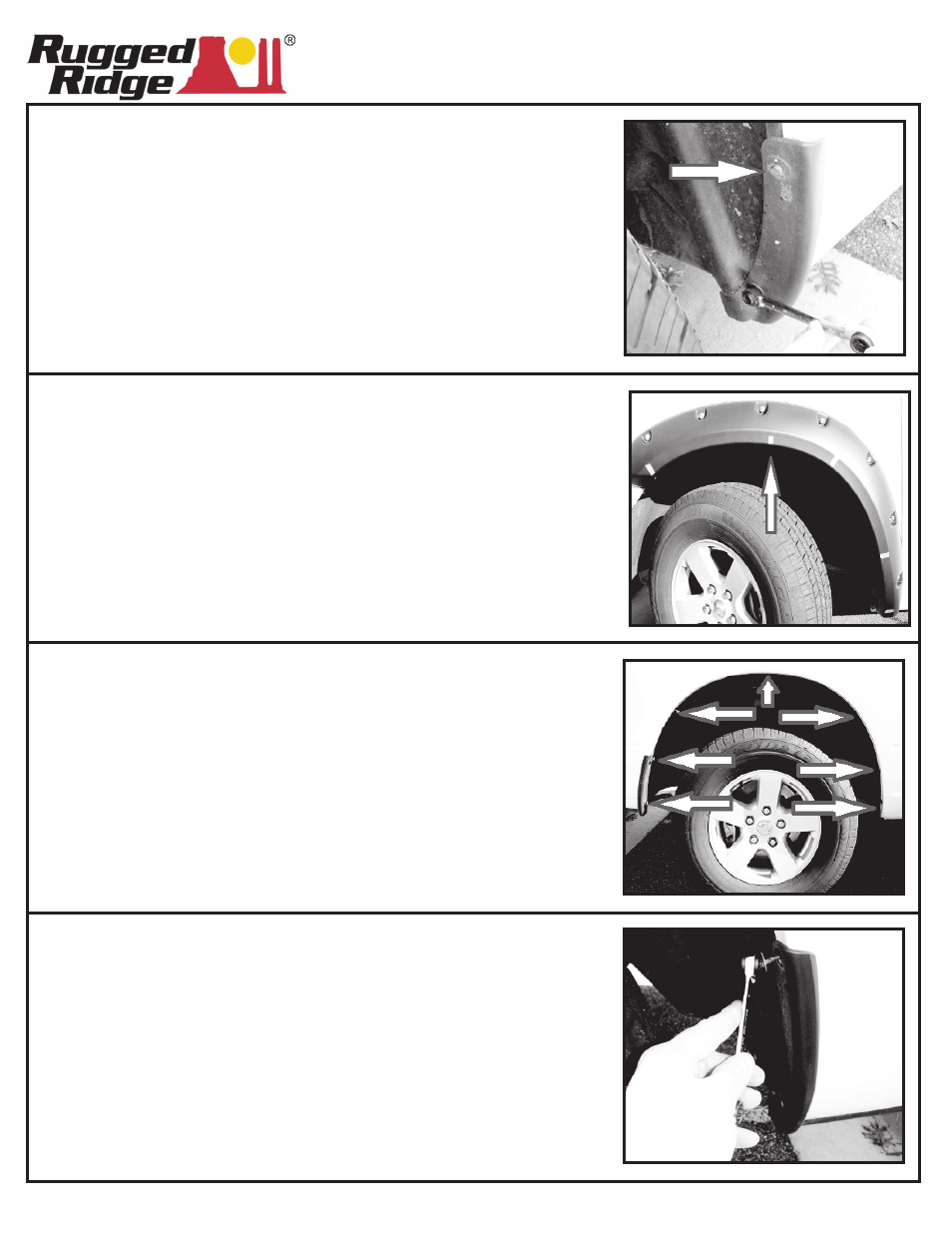

Step 4. 2011 and newer models. Removal of the corner guards
will be necessary for installation of the flares.
Depending on the model you may have one or two hex
screws holding the guard to the inner part of the wheel
well. If there is only one hex screw in the wheel well
you will need to place a second u clamp in the area
indicated. You will also need to remove the nylon
phillips head rivet from the bottom of the guard.
Step 5. Install the flare using the factory hardware previously
removed. Use one of the supplied phillips head screws
in the area indicated by the small arrow. Slight pressure
against the outside of the flare pushing towards the
vehicle will be needed for installation. Repeat this
procedure for the other front flare.
Step 6. Remove factory screws located in the rear wheel well
housing as indicated by the large arrow in the image.
Do not discard the factory hardware it will be reused to
attach the fender flare. Install one of the U clamps in
the area indicated by the small arrow.
Step 7. Remove the rear wheel well corner guard. It is held on
by the two hex screws and two T20 torx head plastic
rivets on the bottom.
